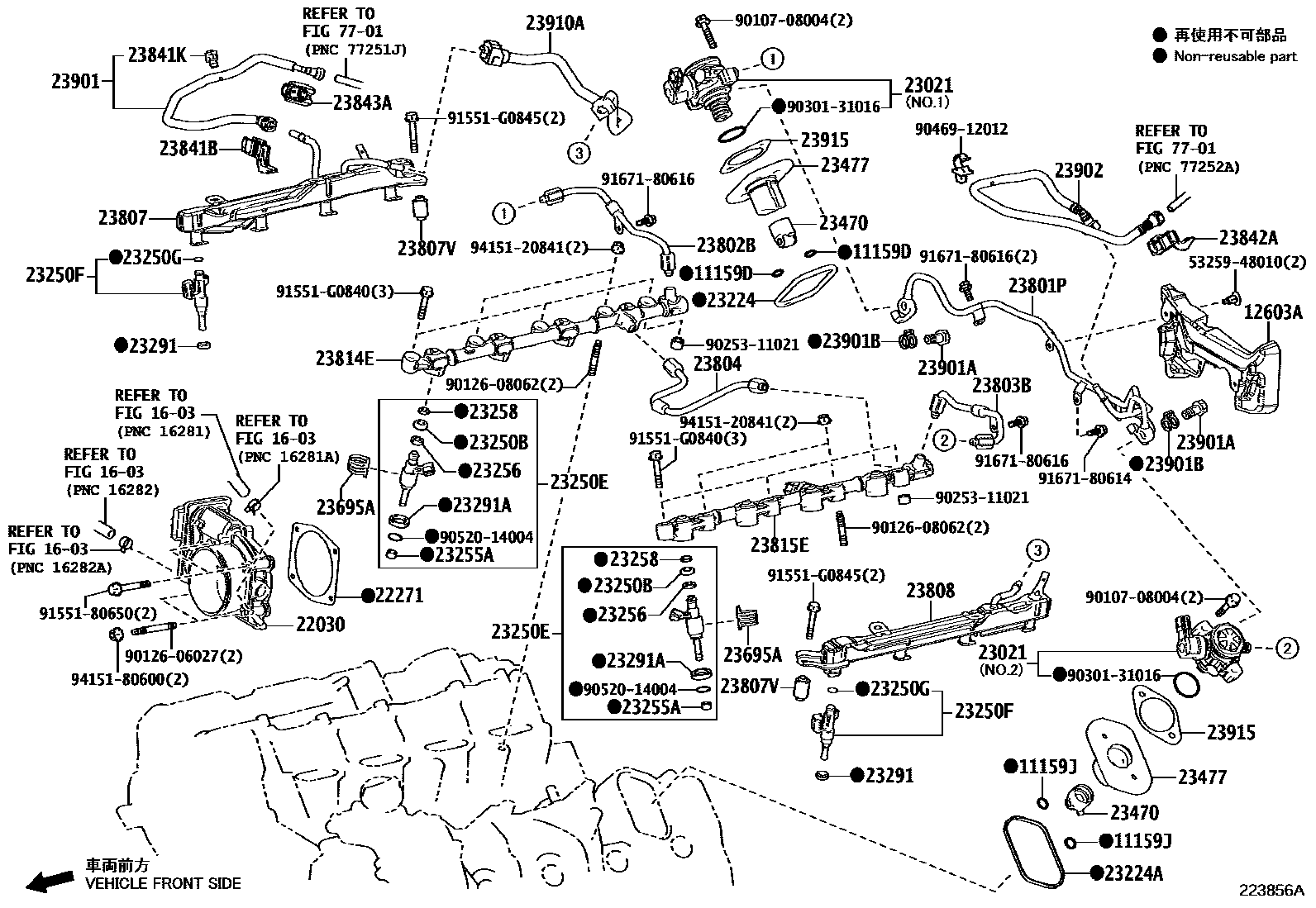

FUEL INJECTION SYSTEM
11159DGASKET, CAMSHAFT BEARING CAP OIL HOLE, RH
11159JGASKET, CAMSHAFT BEARING CAP OIL HOLE, LH
12603ACOVER, SUB-ASSY, ENGINE, NO.3
1603
22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR
22271GASKET, THROTTLE BODY
23021PUMP SUB-ASSY, FUEL W/SEAL
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
23224GASKET, FUEL PUMP SPACER, RH
23224AGASKET, FUEL PUMP SPACER, LH
23250BRING, O(FOR FUEL INJECTOR)
23250EINJECTOR ASSY, FUEL(FOR DIRECT)
MARK 1,REFER REPAIR MANUAL
MARK 2,REFER REPAIR MANUAL
MARK 3,REFER REPAIR MANUAL
23250FINJECTOR ASSY, FUEL(FOR PORT)
23250GRING, O, NO.2(FOR FUEL INJECTOR)
23255ASEAL, FUEL INJECTOR
23256RING, FUEL INJECTOR BACK-UP, NO.1
23258RING, FUEL INJECTOR BACK-UP, NO.3
23291INSULATOR, INJECTOR VIBRATION
23291AINSULATOR, INJECTOR VIBRATION
23470LIFTER ASSY, FUEL PUMP
23477GUIDE, FUEL PUMP LIFTER
23695ACLAMP, NOZZLE HOLDER
23801PPIPE SUB-ASSY, FUEL, NO.1
23802BPIPE SUB-ASSY, FUEL, NO.2
23803BPIPE SUB-ASSY, FUEL, NO.3
23804PIPE SUB-ASSY, FUEL, NO.4
23807PIPE SUB-ASSY, FUEL DELIVERY
23807VSPACER, NO.1(FOR DELIVERY PIPE)
23808PIPE SUB-ASSY, FUEL DELIVERY, NO.2
23814EPIPE, FUEL DELIVERY, RH
23815EPIPE, FUEL DELIVERY, LH
23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)
23841KCLAMP, FUEL PIPE
23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)
23843ACLAMP,FUEL PIPE, NO.3(FOR EFI)
23901TUBE SUB-ASSY, FUEL
23901ABOLT, UNION(FOR FUEL TUBE)
23901BGASKET(FOR FUEL TUBE)
23902TUBE SUB-ASSY, FUEL
23910ATUBE SUB-ASSY, FUEL
23915INSULATOR, FUEL PUMP
7701
5325948010SUPPORT, RADIATOR CENTER
9010708004
9012606027
9012608062
9025311021
9030131016
9046912012
9052014004
9155180650
91551G0840
91551G0845
9167180614
9167180616
9415120841
9415180600
56 parts on this diagram · 1 diagram in section
