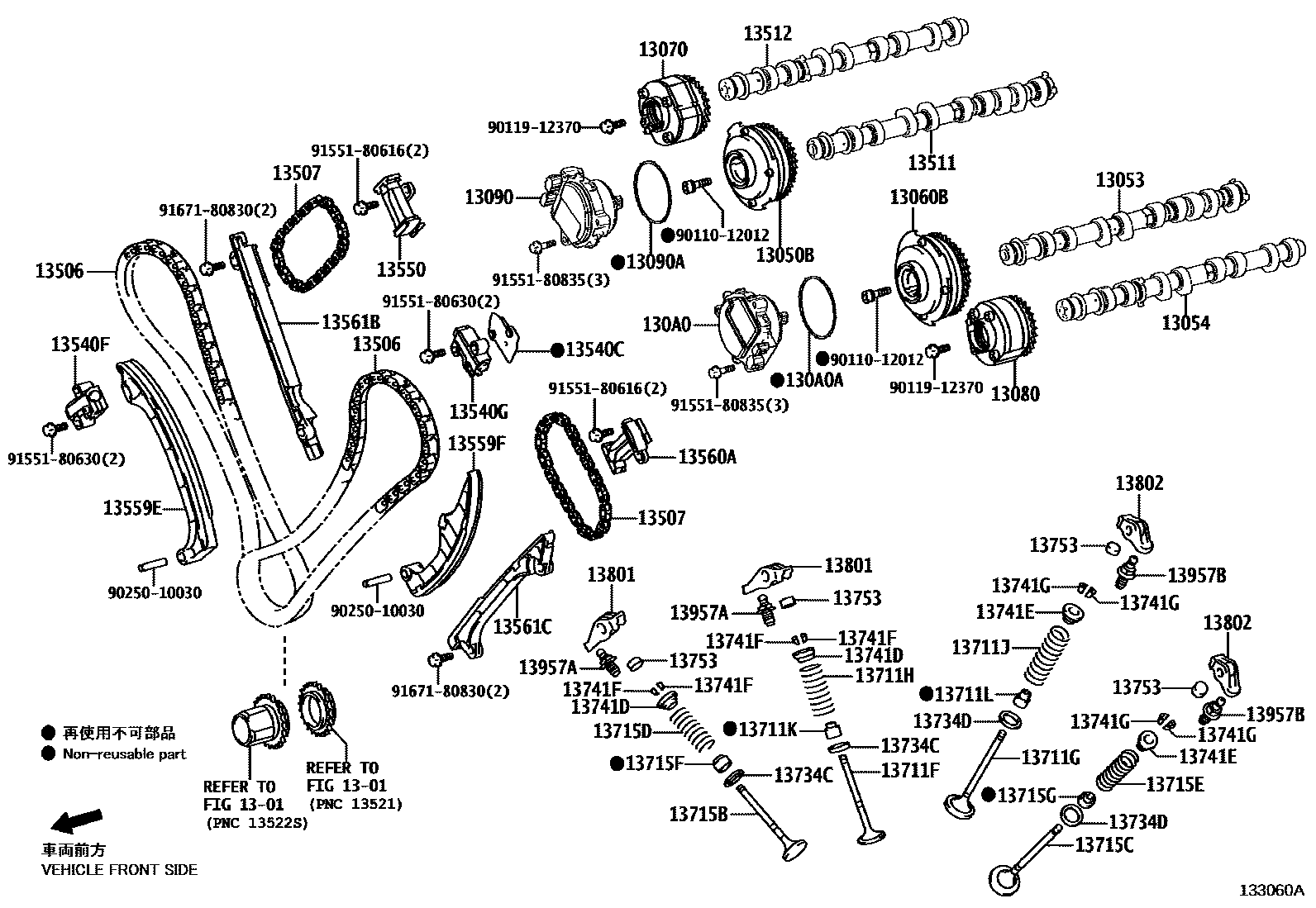

CAMSHAFT & VALVE
1301
13050BGEAR ASSY, CAMSHAFT TIMING INTAKE, RH
13053CAMSHAFT SUB-ASSY, NO.3
13054CAMSHAFT SUB-ASSY, NO.4
13060BGEAR ASSY, CAMSHAFT TIMING INTAKE, LH
13070GEAR ASSY, CAMSHAFT TIMING EXHAUST, RH
13080GEAR ASSY, CAMSHAFT TIMING EXHAUST, LH
13090MOTOR ASSY, CAM TIMING CONTROL W/EDU, RH
13090ARING, O(FOR CAM TIMING CONTROL MOTOR RH)
130A0MOTOR ASSY, CAM TIMING CONTROL W/EDU, LH
130A0ARING, O(FOR CAM TIMING CONTROL MOTOR LH)
13506CHAIN SUB-ASSY
13507CHAIN SUB-ASSY, NO.2
13511CAMSHAFT
13512CAMSHAFT, NO.2
13540CGASKET(FOR CHAIN TENSIONER)
13540FTENSIONER ASSY, CHAIN, NO.1 RH
13540GTENSIONER ASSY, CHAIN, NO.1 LH
13550TENSIONER ASSY, CHAIN, NO.2
13559ESLIPPER, CHAIN TENSIONER, RH
13559FSLIPPER, CHAIN TENSIONER, LH
13560ATENSIONER ASSY, CHAIN, NO.3
13561BDAMPER, CHAIN VIBRATION, RH
13561CDAMPER, CHAIN VIBRATION, LH
13711FVALVE, INTAKE(FOR RH CYLINDER HEAD)
13711GVALVE, INTAKE(FOR LH CYLINDER HEAD)
13711HSPRING, INTAKE VALVE COMPRESSION(FOR RH CYLINDER HEAD)
13711JSPRING, INTAKE VALVE COMPRESSION(FOR LH CYLINDER HEAD)
13711KSEAL, INTAKE VALVE STEM OIL(FOR RH CYLINDER HEAD)
13711LSEAL, INTAKE VALVE STEM OIL(FOR LH CYLINDER HEAD)
13715BVALVE, EXHAUST(FOR RH CYLINDER HEAD)
13715CVALVE, EXHAUST(FOR LH CYLINDER HEAD)
13715DSPRING, COMPRESSION(FOR RH EXHAUST VALVE)
13715ESPRING, COMPRESSION(FOR LH EXHAUST VALVE)
13715FSEAL, EXHAUST VALVE STEM OIL(FOR RH CYLINDER HEAD)
13715GSEAL, EXHAUST VALVE STEM OIL(FOR LH CYLINDER HEAD)
13734CSEAT, VALVE SPRING(FOR RH CYLINDER HEAD)
13734DSEAT, VALVE SPRING(FOR LH CYLINDER HEAD)
13741DRETAINER, VALVE SPRING(FOR RH CYLINDER HEAD)
13741ERETAINER, VALVE SPRING(FOR LH CYLINDER HEAD)
13741FLOCK, VALVE SPRING RETAINER(FOR RH CYLINDER HEAD)
13741GLOCK, VALVE SPRING RETAINER(FOR LH CYLINDER HEAD)
13753SHIM, VALVE ADJUSTING
T=2.000
T=2.020
T=2.040
T=2.060
T=2.080
T=2.100
T=2.120
T=2.140
T=2.160
T=2.180
T=2.200
T=2.220
T=2.240
T=2.260
T=2.280
T=2.300
T=2.320
T=2.340
T=2.360
T=2.380
T=2.400
T=2.420
T=2.440
T=2.460
T=2.480
T=2.500
T=2.520
T=2.540
T=2.560
T=2.580
T=2.600
T=2.620
T=2.640
T=2.660
T=2.680
T=2.700
T=2.720
T=2.740
T=2.760
T=2.780
T=2.800
13801ARM SUB-ASSY, VALVE ROCKER, NO.1
13802ARM SUB-ASSY, VALVE ROCKER, NO.2
13957APIVOT, VALVE ROCKER ARM(FOR RH CYLINDER HEAD)
13957BPIVOT, VALVE ROCKER ARM(FOR LH CYLINDER HEAD)
9011012012
main90110-12012
9011912370
main90119-12370
9025010030
main90250-10030
9155180616
main91551-80616
9155180630
main91551-80630
9155180835
main91551-80835
9167180830
main91671-80830
54 parts on this diagram · 1 diagram in section
