TELEPHONE & MAYDAY

86719BRACKET, TELEPHONE

main86719-11020iGWZ100..CHI201712-202004

main86719-11060iGWZ100..CHI202004

86719ABRACKET, TELEPHONE NO.1

main86719-11030iGWZ100..CHI201712-202004

main86719-11070iGWZ100..CHI202004

86719BBRACKET, TELEPHONE NO.2

main86719-11050iGWZ100..CHI201712-202004

86719CBRACKET, TELEPHONE NO.3

main86719-33170iGWZ100..CHI201712-202004

86725BATTERY, MOBILEPHONE

main86725-26010iGWZ100..CHI202004

86740TRANSCEIVER ASSY, TELEPHONE

main86741-78060iGWZ100..CHI201712-202004

86741ATRANSCEIVER, TELEMATICS

main86741-48081iGWZ100..CHI202004

86742COVER, TRANSCEIVER

main86742-26010iGWZ100..CHI202004

86777BATTERY, MAYDAY

main86777-76040iGWZ100..CHI201712-202004

9015350015

main90153-50015

9017906274

main90179-06274

9167380616

main91673-80616

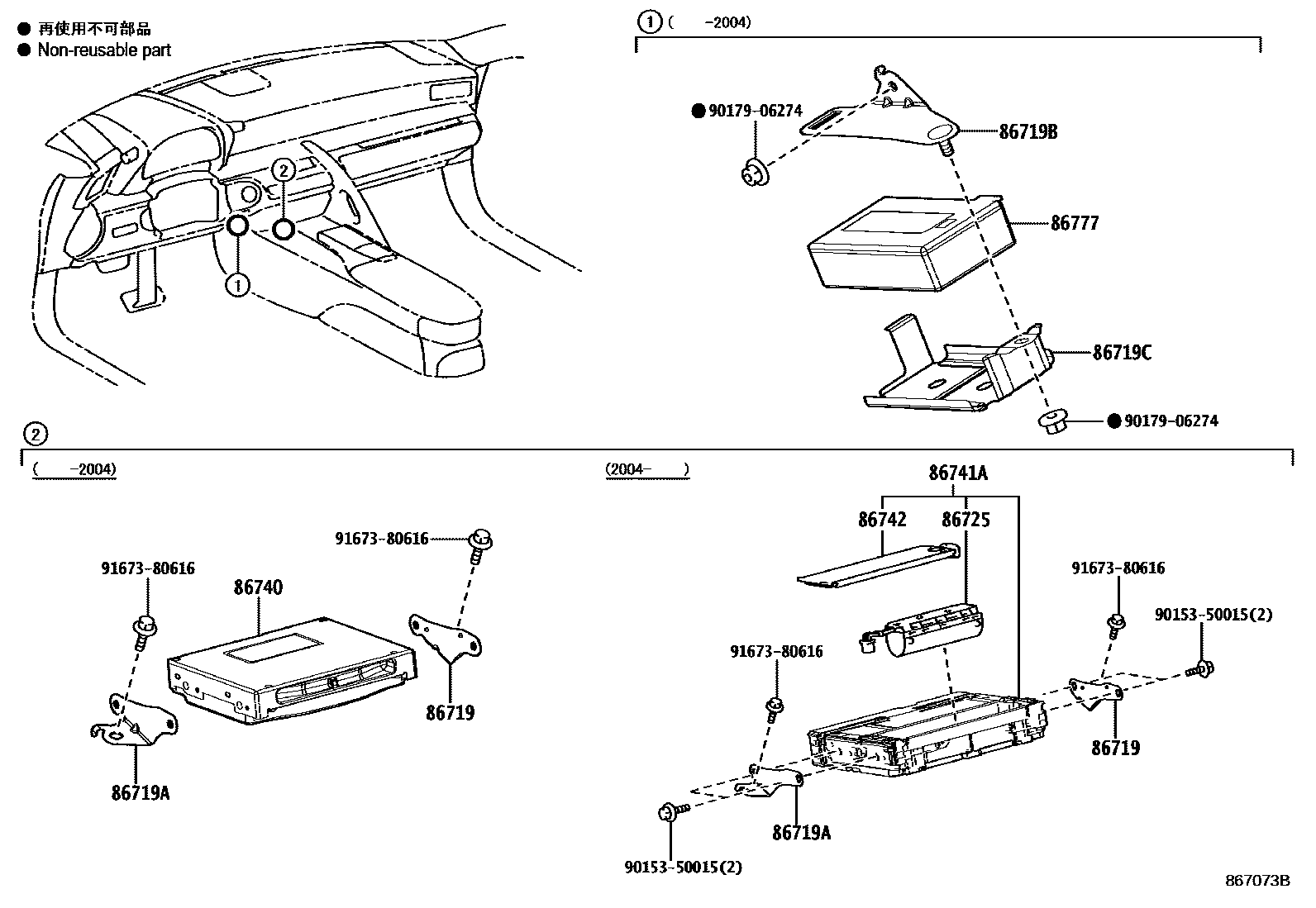

12 parts on this diagram · 1 diagram in section
