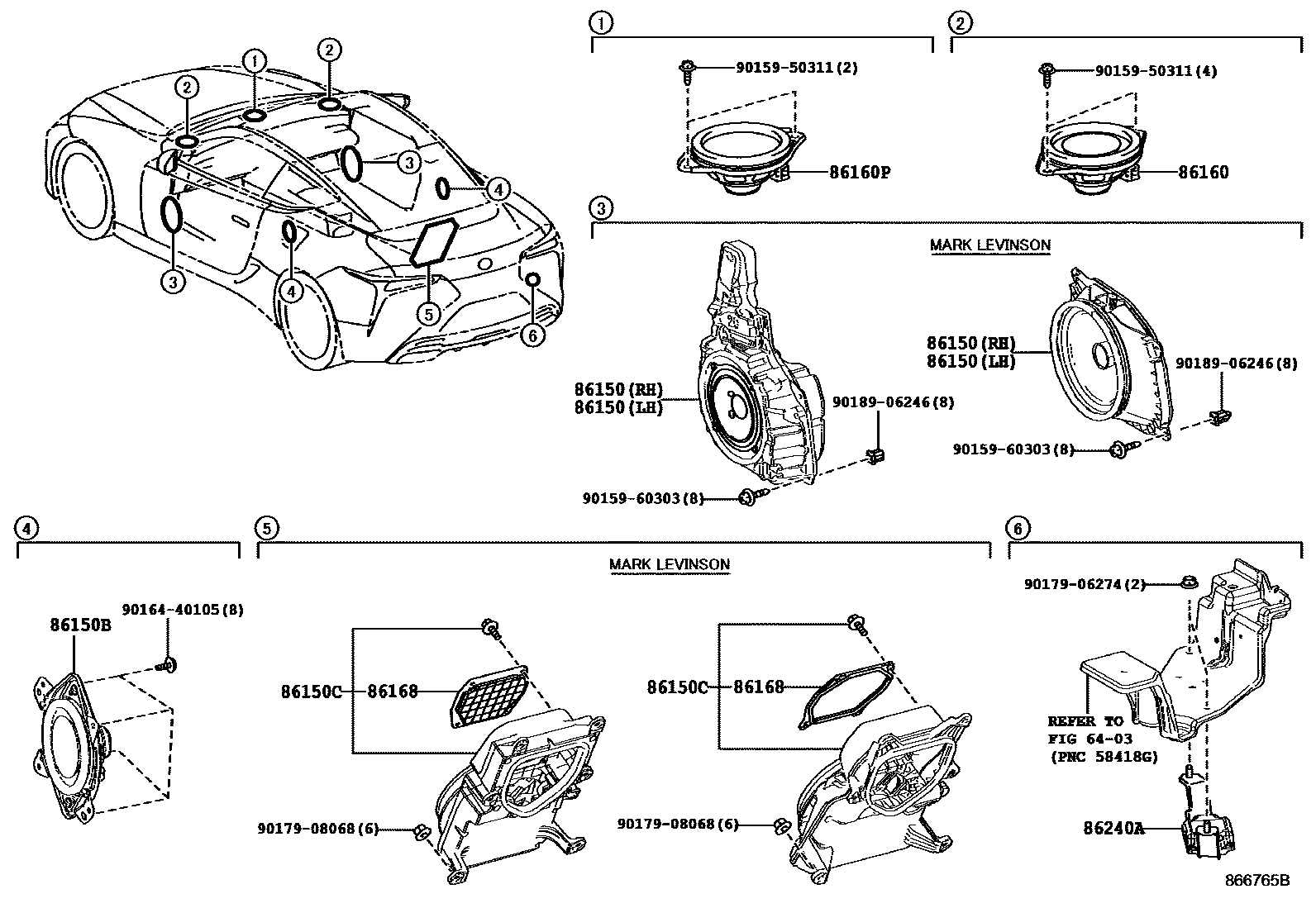

SPEAKER

6403

86150SPEAKER ASSY, W/BOX, NO.1

main86150-0W450iGWZ100,URZ100..ARL,GCC201906

RH

main86150-0W460iGWZ100,URZ100..GEN201906

LH

86150BSPEAKER ASSY, W/BOX, NO.2

main86150-0W470iGWZ100,URZ100..GEN201906

86150CSPEAKER ASSY, W/BOX, NO.3

main86150-0W480iGWZ100,URZ100..GEN201906

86160SPEAKER ASSY, FRONT NO.1

main86160-0WX50iGWZ100,URZ100..GEN201906

86160PSPEAKER ASSY, FRONT NO.2

main86160-0WX50iGWZ100,URZ100..GEN201906

86168COVER, SPEAKER MOUNTING

main86168-0W020iGWZ100,URZ100..GEN201906

86240AEQUALIZER ASSY,STEREO COMPONENT

main86240-11010iGWZ100,URZ100201703-201709

sub86240-11011

main86240-11011iGWZ100,URZ100201710

9015950311

main90159-50311

9015960303

main90159-60303

9016440105

main90164-40105

9017906274

main90179-06274

9017908068

main90179-08068

9018906246

main90189-06246

14 parts on this diagram · 1 diagram in section
