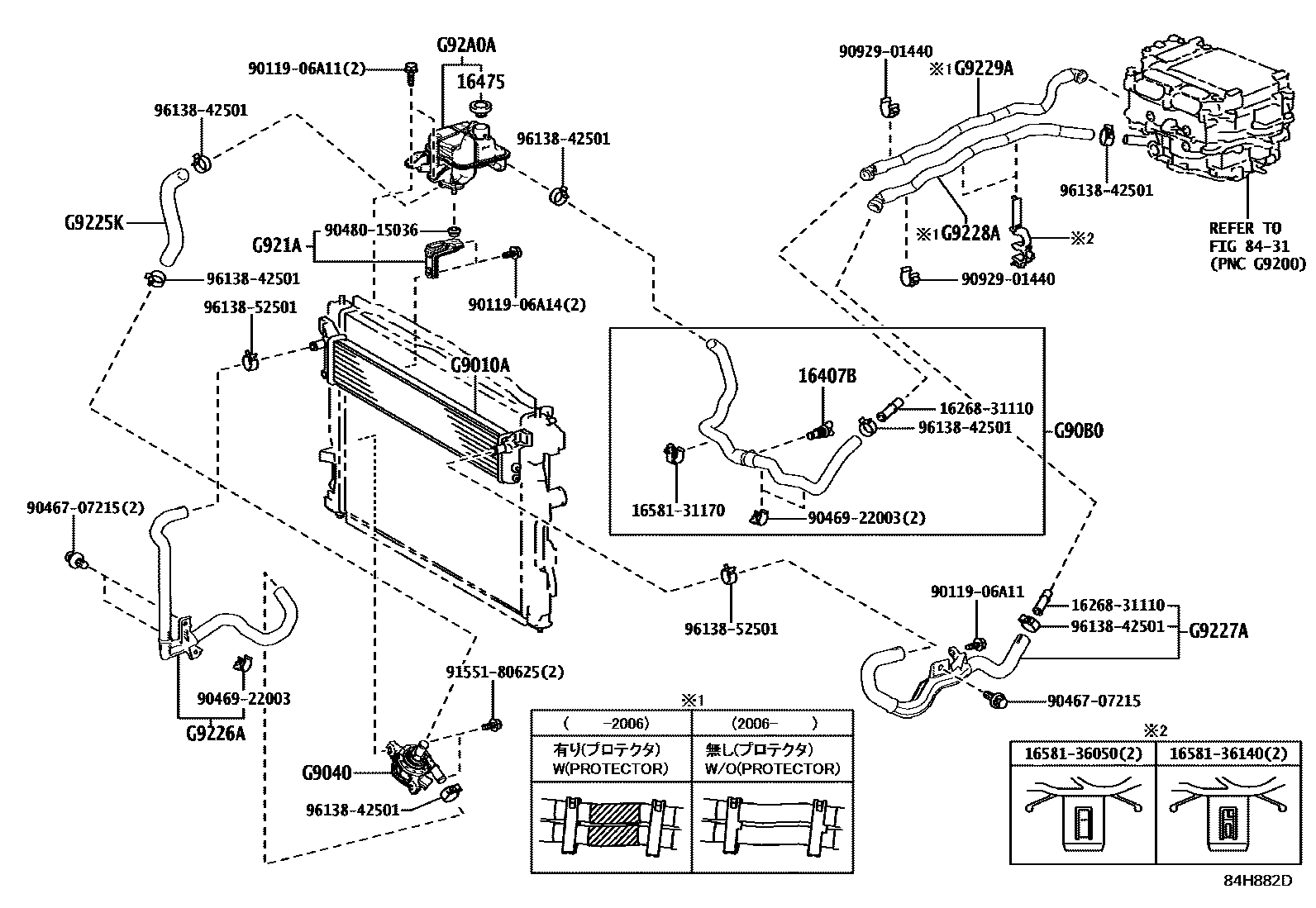

INVERTER COOLING

0001 1 0002 1

16407BCOCK SUB-ASSY, RADIATOR DRAIN

main16407-64010i8GRFXS..GWZ100201703

16475CAP, RESERVE TANK

main16475-28140i8GRFXS..GWZ100201703

8431

G9010ARADIATOR ASSY

mainG901011010iGWZ100..ARL,CHI,GEN201703

G9040INVERTER WATER PUMP ASSY(W/MOTOR)

mainG904033050iGWZ100201703

G90B0HOSE ASSY, INVERTER COOLING, NO.2

mainG90B011030iGWZ100..ARL201703

G921ABRACKET, INVERTER RESERVE TANK, NO.1

mainG91H211010iGWZ100201703

G9225KHOSE, INVERTER COOLING, NO.1

mainG922511010iGWZ100201703

G9226AHOSE, INVERTER COOLING, NO.2

mainG922611010iGWZ100201703

G9227AHOSE, INVERTER COOLING, NO.3

mainG922711010iGWZ100..LHD201703

mainG922711020iGWZ100..ARL201703

G9228AHOSE, INVERTER COOLING, NO.4

mainG922811030iGWZ100..LHD201703

mainG922811040iGWZ100..ARL201703-202006

mainG922811041iGWZ100..ARL202006

G9229AHOSE, INVERTER COOLING, NO.5

mainG922911040iGWZ100..ARL201703-202006

mainG922911041iGWZ100..ARL202006

G92A0ATANK ASSY, INVERTER RESERVE

mainG91H011010iGWZ100201703

1626831110PIPE, WATER BY-PASS, NO.1

main16268-31110

1658131170CLAMP, HOSE(FOR WATER HOSE)

main16581-31170

1658136050CLAMP, HOSE(FOR WATER HOSE)

main16581-36050

1658136140CLAMP, HOSE(FOR WATER HOSE)

main16581-36140

9011906A11

main90119-06A11

9011906A14

main90119-06A14

9046707215

main90467-07215

9046922003

main90469-22003

9048015036

main90480-15036

9092901440

main90929-01440

9155180625

main91551-80625

9613842501

main96138-42501

9613852501

main96138-52501

26 parts on this diagram · 2 diagrams in section
