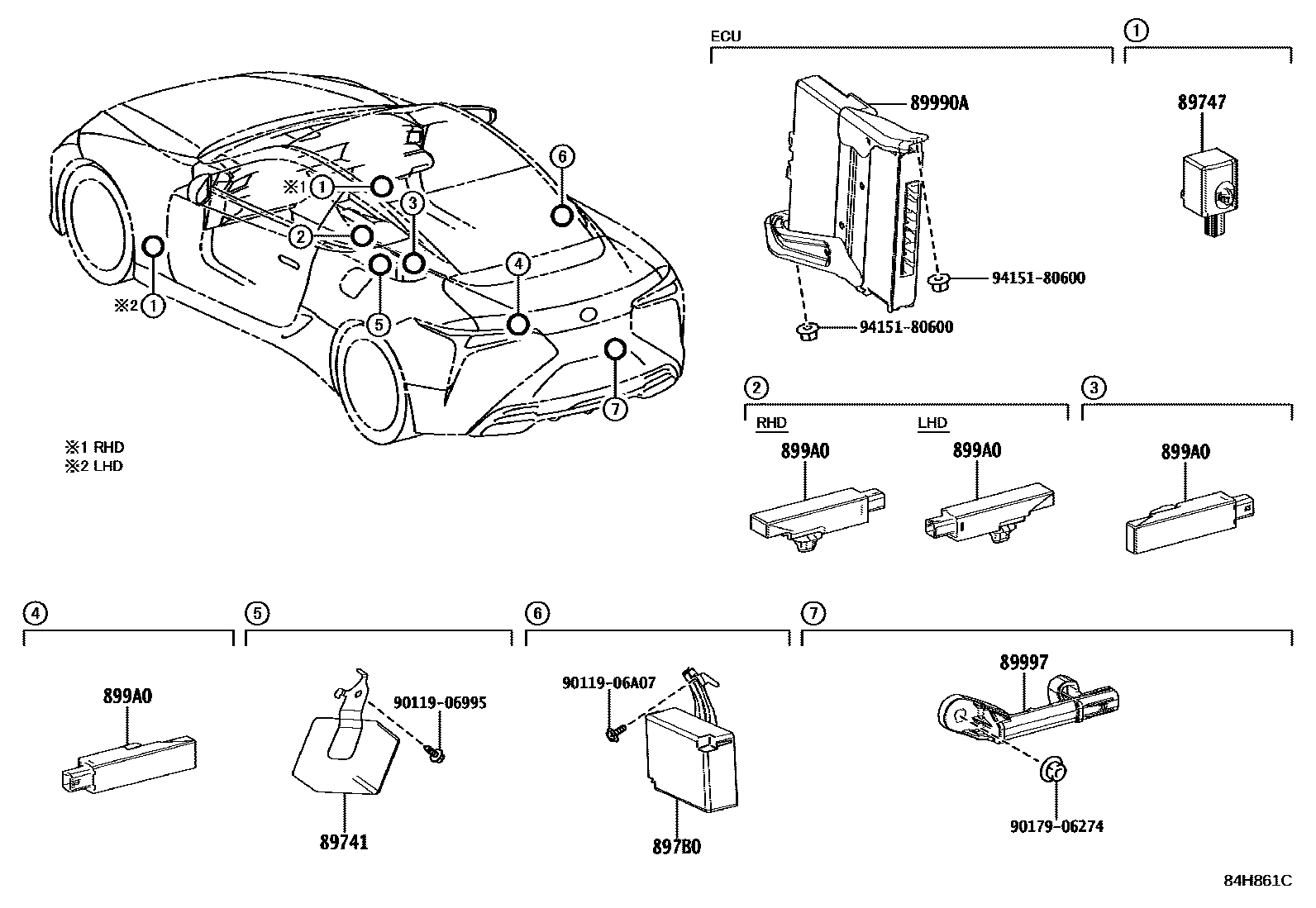

WIRELESS DOOR LOCK

89741RECEIVER, DOOR CONTROL

main89740-11010iGWZ100,URZ100..ARL201703-202111

main89740-11050iGWZ100,URZ100..ARL202111-202210

89747BUZZER, WIRELESS DOOR LOCK

main89747-30040iGWZ100,URZ100201703

897B0RECEIVER ASSY, ELECTRICAL KEY & TPMS

main897B0-11040iGWZ100..CHI201712-201809

main897B0-11070supersedes 897B0-11050iGWZ100,URZ100..ARL201703-201809

INDONESIA SPEC

main897B0-11130supersedes 897B0-11140iGWZ100..CHI201809-201906

main897B0-11160iGWZ100,URZ100..GCC201809-202305

PHILIPPINE SPEC

sub897B0-11161

main897B0-11240iGWZ100..CHI201906-202305

89990ACOMPUTER ASSY, SMART KEY

main89990-11011iURZ100201703-201809

sub89990-11012

main89990-11031iGWZ100201703-201809

sub89990-11032

main89990-11050iURZ100201809-202004

main89990-11060iGWZ100201809-202007

main89990-11100iURZ100202004-202111

main89990-11101iURZ100202112

main89990-11110iGWZ100202007-202201

main89990-11111iGWZ100202202

main89990-11130iURZ100..ARL202104-202212

INDONESIA SPEC

main89990-11131iURZ100..ARL202301

INDONESIA SPEC

89997ANTENNA, ELECTRICAL KEY

main89997-30100iGWZ100,URZ100201703

899A0ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1

main899A0-47010×3iGWZ100,URZ100201703

9011906995

main90119-06995

9011906A07

main90119-06A07

9017906274

main90179-06274

9415180600

main94151-80600

10 parts on this diagram · 1 diagram in section
