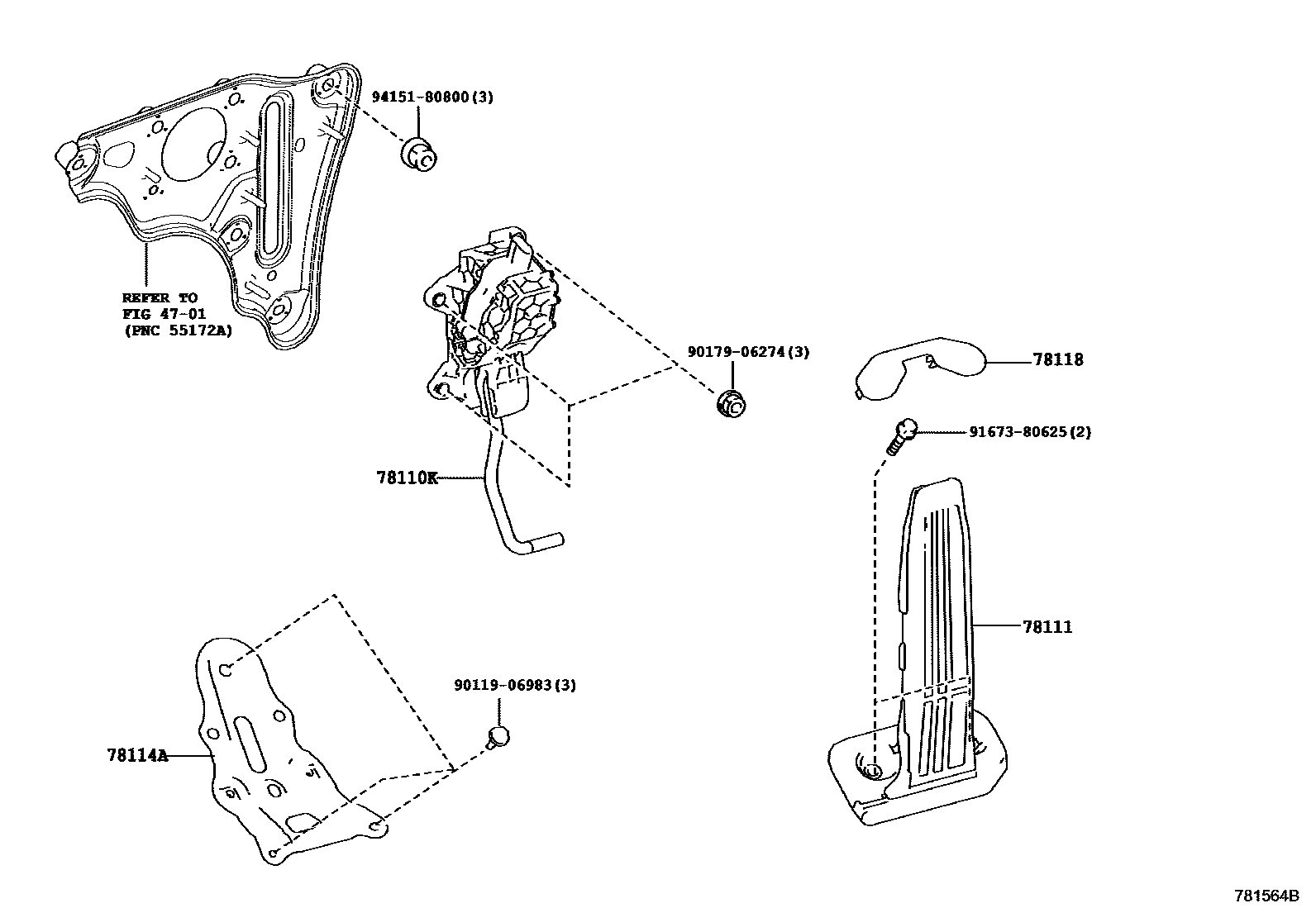

ACCELERATOR LINK

0001 1 0002 1

4701

78110KROD ASSY, ACCELERATOR PEDAL(W/SENSOR)

main78110-11010iGWZ100,URZ100..LHD201703-201803

sub78110-11011

main78110-11020iGWZ100,URZ100..ARL201703-201803

sub78110-11021

main78110-11030iGWZ100,URZ100..LHD201804-202009

sub78110-11031

main78110-11031iGWZ100,URZ100..LHD202010

main78110-11040iGWZ100,URZ100..ARL201804-202009

sub78110-11041

main78110-11041iGWZ100,URZ100..ARL202010

78111PEDAL, ACCELERATOR

main78101-11010iGWZ100,URZ100201703

78114ABRACKET, ACCELERATOR PEDAL SUPPORT

main78114-11010iGWZ100,URZ100..ARL201703

78118PAD, ACCELERATOR PEDAL

main78117-11010iGWZ100,URZ100201703

9011906983

main90119-06983

9017906274

main90179-06274

9167380625

main91673-80625

9415180800

main94151-80800

9 parts on this diagram · 2 diagrams in section
