EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

75311EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)

main53141-11010iURZ100201703

main53141-11020iGWZ100201703-202210

75443APLATE, LUGGAGE COMPARTMENT DOOR, NO.3

main75443-11010iURZ100201703

LC500

main75443-11020iGWZ100201703-202210

LC500H

main75443-11050iGWZ100202210

LC500H

75471BPLATE, REAR BODY NAME, NO.1

main75473-11030iGWZ100201703-202210

75473APLATE, REAR BODY NAME, NO.2

main75473-11040iGWZ100201703-202210

75741EEMBLEM, SYMBOL

main90975-02109iURZ100201703

main90975-02134iGWZ100201703-202210

9016740057

main90167-40057

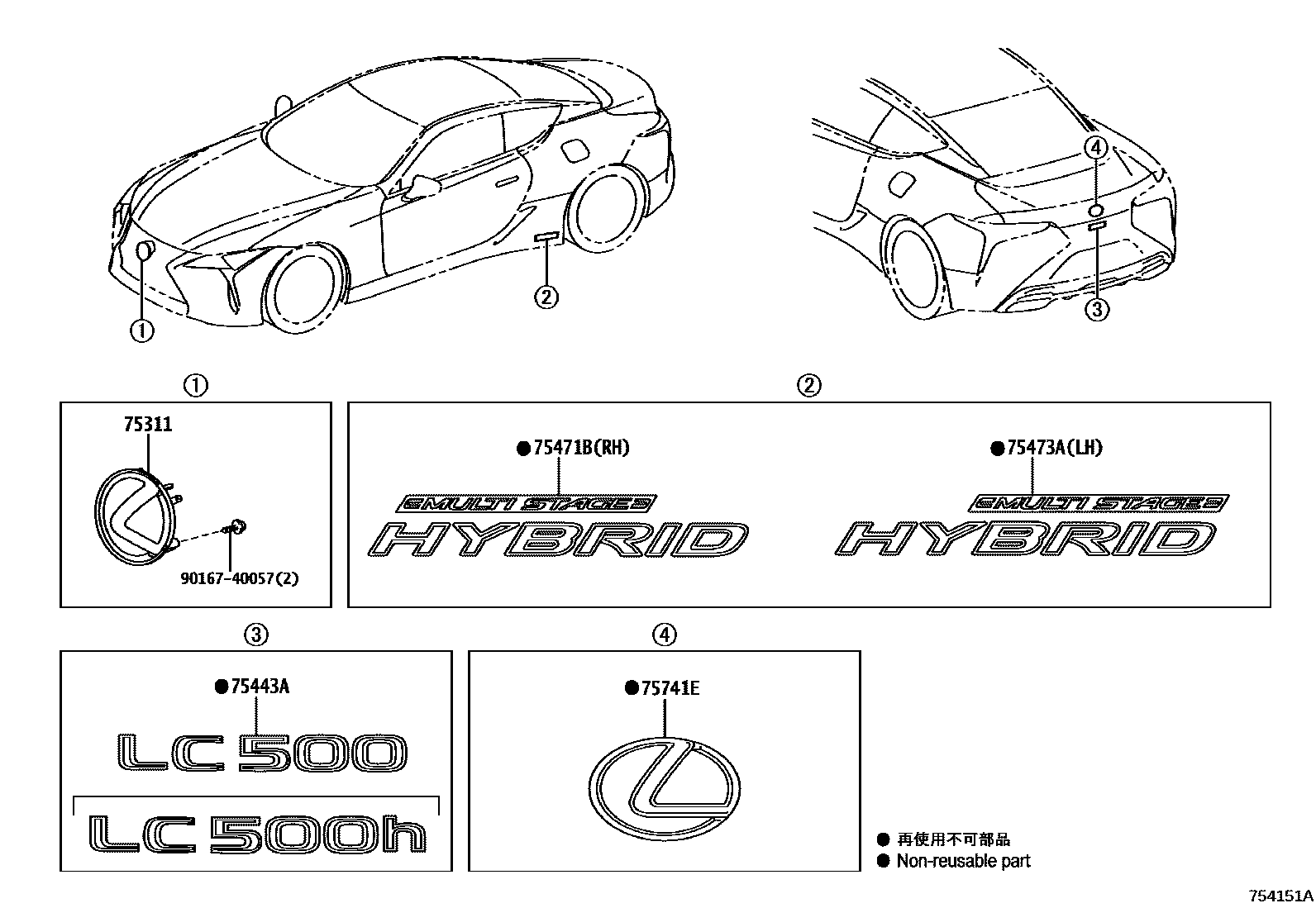

6 parts on this diagram · 1 diagram in section
