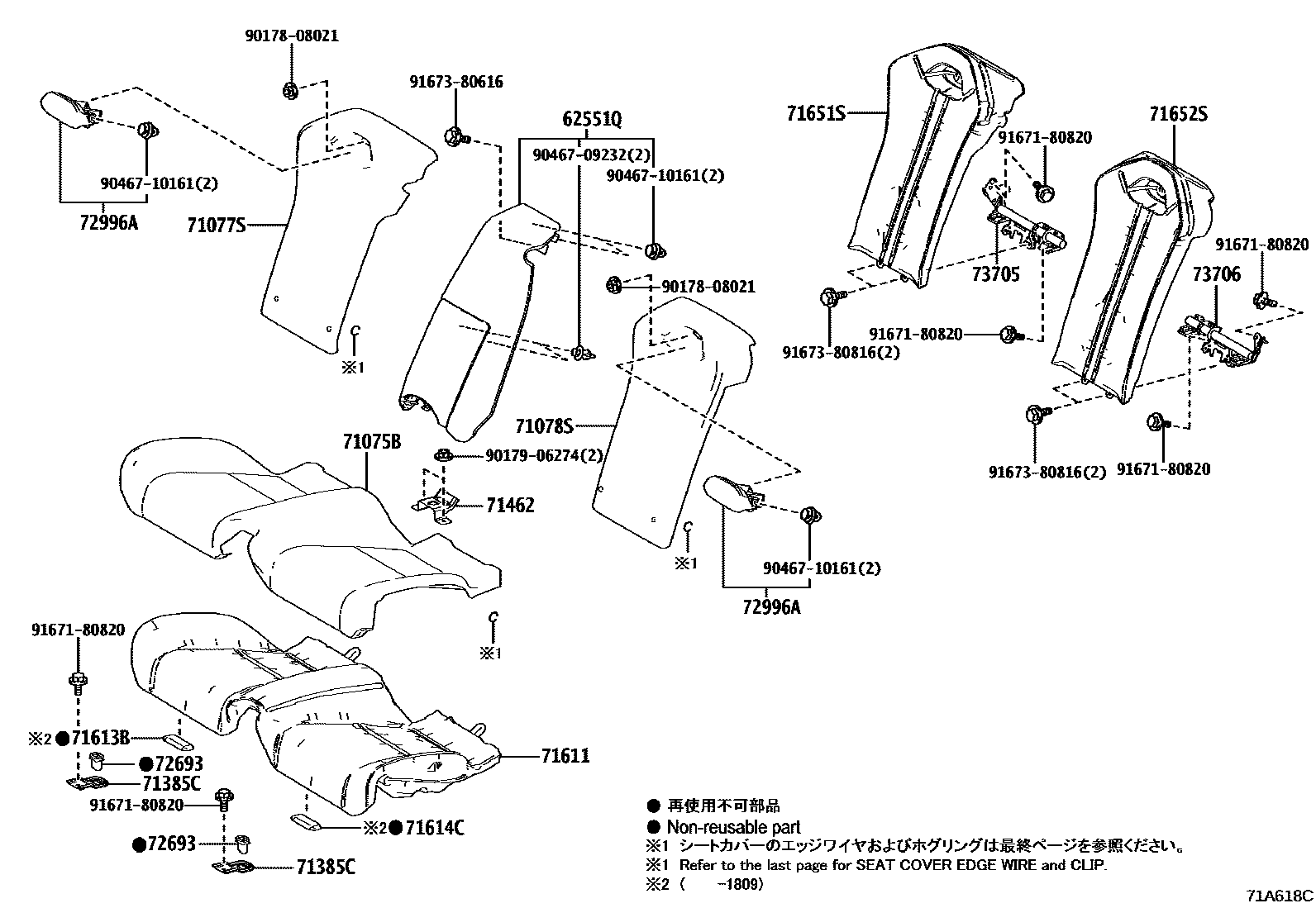

REAR SEAT & SEAT TRACK

0001 1 0002 1SEAT COVER EDGE WIRE & CLIP

62551QGARNISH, REAR SEAT SIDE

main62551-11020-C3iGWZ100,URZ100..GEN201703-202004

BLACK,TRIM2#,3#

main62551-11020-E1iGWZ100,URZ100..ARL,CHI,GCC201703-201909

OCHRE,TRIM4#

main62551-11020-E1iGWZ100,URZ100..GEN201909-202004

OCHRE,TRIM40

main62551-11020-E1iGWZ100,URZ100..ARL,CHI,GCC201909-202004

AUDIO-EMV & AM/FM & DVD PLAYER & 12SPEAKER,OCHRE,TRIM40

main62551-11020-E2iGWZ100,URZ100..ARL,CHI,GCC201909-202004

AUDIO-EMV & AM/FM & DVD PLAYER & 12SPEAKER,KURO KOHAKU,TRIM41

main62551-11020-E2iGWZ100,URZ100..ARL,CHI,GCC201909-202004

KURO KOHAKU,TRIM41

main62551-11020-J1iGWZ100,URZ100..GEN201703-202004

BLUE,TRIM8#

main62551-11030-C3iGWZ100,URZ100..GEN201906-202004

BLACK,TRIM2#,3#

main62551-11030-E1iGWZ100,URZ100..ARL,CHI,GCC201909-202004

AUDIO-EMV & *MAR & AM/FM & DVD PLAYER & 13SP,OCHRE,TRIM40

main62551-11030-E1iGWZ100,URZ100..GEN201906-201909

OCHRE,TRIM4#

main62551-11030-E1iGWZ100,URZ100..GEN201909-202004

OCHRE,TRIM40

main62551-11030-E2iGWZ100,URZ100..ARL,CHI,GCC201909-202004

AUDIO-EMV & *MAR & AM/FM & DVD PLAYER & 13SP,KURO KOHAKU,TRIM41

main62551-11030-E2iGWZ100,URZ100..GEN201909-202004

KURO KOHAKU,TRIM41

main62551-11030-J1iGWZ100,URZ100..GEN201906-202004

BLUE,TRIM8#

main62551-11060-C1iGWZ100,URZ100..ARL,GCC202004-202111

AUDIO-EMV & AM/FM & DVD PLAYER & 12SPEAKER,BLACK,TRIM2#,3#,42

main62551-11060-C1iGWZ100,URZ100..GEN202004-202111

BLACK,TRIM2#,3#,42

main62551-11060-E1iGWZ100..CHI202004-202111

OCHER,TRIM40

main62551-11060-E1iGWZ100,URZ100..ARL,GCC202004-202111

AUDIO-EMV & AM/FM & DVD PLAYER & 12SPEAKER,OCHER,TRIM40

main62551-11070-C1iGWZ100..CHI202004

AUDIO-EMV & *MAR & AM/FM & DVD PLAYER & 13SP,BLACK,TRIM2#,3#,42

main62551-11070-C1iGWZ100,URZ100..GEN202004

BLACK,TRIM2#,3#,42

main62551-11070-E1iGWZ100,URZ100..GEN202004

AUDIO-EMV & *MAR & AM/FM & DVD PLAYER & 13SP,OCHER,TRIM40

main62551-11070-E1iGWZ100..CHI202004

OCHER,TRIM40

71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)

main71075-11120-22iGWZ100,URZ100..GCC202005

BLACK/ORANGE,TRIM42

main71075-11120-23iGWZ100,URZ100..GEN202005

BLACK/RED,TRIM3#

main71075-11120-25iGWZ100,URZ100..GCC202202

BLACK/RED,TRIM23

main71075-11120-25iGWZ100,URZ100..ARL202202

SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT),BLACK/RED,TRIM23

main71075-11120-C5iGWZ100,URZ100..ARL,GCC,GEN201703-202202

BLACK,TRIM2#

main71075-11120-C5iGWZ100,URZ100..GCC202202

BLACK,TRIM20

main71075-11120-C6iGWZ100,URZ100..GCC201703-202005

DK.ROSE,TRIM3#

main71075-11120-C8iGWZ100,URZ100..ARL,GCC,GEN201809-201907

BLACK,TRIM2#

main71075-11120-C9iGWZ100,URZ100..ARL,GCC,GEN201809-201907

DK.ROSE,TRIM3#

main71075-11120-E2iGWZ100,URZ100..GEN202004-202111

SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT),OCHRE,TRIM40

main71075-11120-E2iGWZ100,URZ100..ARL,GCC,GEN201703-202111

OCHRE,TRIM4#

main71075-11120-E2iGWZ100,URZ100..ARL,GEN201909-202004

OCHRE,TRIM40

main71075-11120-E3iGWZ100,URZ100..ARL,GCC,GEN201809-201907

OCHER,TRIM4#

main71075-11120-E6iGWZ100,URZ100..GCC201909-202005

KUROKOHAKU,TRIM41

main71075-11120-J1iGWZ100,URZ100..ARL,GEN201703-202005

BLUE,TRIM8#

main71075-11120-J2iGWZ100,URZ100..ARL,GCC,GEN201809-201907

BLUE,TRIM8#

main71075-11140-21iGWZ100..CHI202004

BLACK/ORANGE,TRIM42

main71075-11140-22iGWZ100..CHI202004

BLACK/RED,TRIM3#

main71075-11140-24iGWZ100..CHI202202

BLACK/RED,TRIM23

main71075-11140-C4iGWZ100..CHI201712-202202

BLACK,TRIM2#

main71075-11140-C4iGWZ100..CHI202202

BLACK,TRIM20

main71075-11140-C5iGWZ100..CHI201712-202004

DK.ROSE,TRIM3#

main71075-11140-C7iGWZ100..CHI201809-201907

BLACK,TRIM2#

main71075-11140-C8iGWZ100..CHI201809-201907

DK.ROSE,TRIM3#

main71075-11140-E1iGWZ100..CHI201712-201909

OCHRE,TRIM4#

main71075-11140-E1iGWZ100..CHI201909

OCHRE,TRIM40

main71075-11140-E2iGWZ100..CHI201809-201907

OCHER,TRIM4#

main71075-11140-E5iGWZ100..CHI201909-202004

KUROKOHAKU,TRIM41

main71075-11140-J1iGWZ100..CHI201712-202004

BLUE,TRIM8#

main71075-11140-J2iGWZ100..CHI201809-201907

BLUE,TRIM8#

71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)

main71077-11110-A2iGWZ100,URZ100..GCC201703-202005

WHITE,TRIM8#

main71077-11110-C3iGWZ100,URZ100..ARL,GEN201703-202005

BLACK,TRIM2#

main71077-11110-C5iGWZ100,URZ100..GCC202202

BLACK/LT.GRAY,TRIM20

main71077-11110-C5iGWZ100,URZ100..ARL,GEN202004-202202

BLACK/LT.GRAY,TRIM2#

main71077-11110-C6iGWZ100,URZ100..GEN202005

BLACK/ORANGE,TRIM42

main71077-11110-C8iGWZ100,URZ100..ARL202202

SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT),BLACK/MD.GRAY/RED,TRIM23

main71077-11110-C8iGWZ100,URZ100..ARL202202

BLACK/MD.GRAY/RED,TRIM23

main71077-11110-D2iGWZ100,URZ100..GCC201703-202005

DK.ROSE,TRIM3#

main71077-11110-D4iGWZ100,URZ100..GEN202005

RED,TRIM3#

main71077-11110-E2iGWZ100,URZ100..GCC201909-202005

LT.OCHRE,TRIM40

main71077-11110-E2iGWZ100,URZ100..ARL,GCC,GEN201703-201909

LT.OCHRE,TRIM4#

main71077-11110-E4iGWZ100,URZ100..ARL,GEN201909-202005

SADDLE TAN,TRIM41

main71077-11110-E5iGWZ100,URZ100..ARL202004-202111

LT.OCHRE,TRIM4#

main71077-11110-E5iGWZ100,URZ100..GEN202004-202111

SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT),LT.OCHRE,TRIM40

main71077-11110-E5iGWZ100,URZ100..GCC202005

LT.OCHRE,TRIM40

main71077-11140-A1iGWZ100..CHI201712-202004

WHITE,TRIM8#

main71077-11140-C2iGWZ100..CHI201712-202004

BLACK,TRIM2#

main71077-11140-C4iGWZ100..CHI202202

BLACK/LT.GRAY,TRIM20

main71077-11140-C4iGWZ100..CHI202004-202202

BLACK/LT.GRAY,TRIM2#

main71077-11140-C5iGWZ100..CHI202004

BLACK/ORANGE,TRIM42

main71077-11140-C7iGWZ100..CHI202202

BLACK/RED,TRIM23

main71077-11140-D1iGWZ100..CHI201712-202004

DK.ROSE,TRIM3#

main71077-11140-D3iGWZ100..CHI202004

RED,TRIM3#

main71077-11140-E1iGWZ100..CHI201909-202004

LT.OCHRE,TRIM40

main71077-11140-E1iGWZ100..CHI201712-201909

LT.OCHRE,TRIM4#

main71077-11140-E3iGWZ100..CHI201909-202004

SADDLE TAN,TRIM41

main71077-11140-E4iGWZ100..CHI202004

LT.OCHRE,TRIM40

71078SCOVER, REAR SEATBACK, LH(FOR SEPARATE TYPE)

main71078-11010-A2iGWZ100,URZ100..GCC201703-202005

WHITE,TRIM8#

main71078-11010-C3iGWZ100,URZ100..GCC201703-202005

BLACK,TRIM2#

main71078-11010-C5iGWZ100,URZ100..ARL,GEN202004-202202

BLACK/LT.GRAY,TRIM2#

main71078-11010-C5iGWZ100,URZ100..GCC202202

BLACK/LT.GRAY,TRIM20

main71078-11010-C6iGWZ100,URZ100..GEN202005

BLACK/ORANGE,TRIM42

main71078-11010-C8iGWZ100,URZ100..GCC202202

BLACK/MD.GRAY/RED,TRIM23

main71078-11010-C8iGWZ100,URZ100..GCC202202

SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT),BLACK/MD.GRAY/RED,TRIM23

main71078-11010-D2iGWZ100,URZ100..ARL,GEN201703-202005

DK.ROSE,TRIM3#

main71078-11010-D4iGWZ100,URZ100..GEN202005

RED,TRIM3#

main71078-11010-E2iGWZ100,URZ100..ARL,GEN201909-202005

LT.OCHRE,TRIM40

main71078-11010-E2iGWZ100,URZ100..ARL,GCC,GEN201703-201909

LT.OCHRE,TRIM4#

main71078-11010-E4iGWZ100,URZ100..GCC201909-202005

SADDLE TAN,TRIM41

main71078-11010-E5iGWZ100,URZ100..GEN202004-202111

SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT),LT.OCHRE,TRIM40

main71078-11010-E5iGWZ100,URZ100..ARL202004-202111

LT.OCHRE,TRIM4#

main71078-11010-E5iGWZ100,URZ100..GEN202005

LT.OCHRE,TRIM40

main71078-11030-A1iGWZ100..CHI201712-202004

WHITE,TRIM8#

main71078-11030-C2iGWZ100..CHI201712-202004

BLACK,TRIM2#

main71078-11030-C4iGWZ100..CHI202202

BLACK/LT.GRAY,TRIM20

main71078-11030-C4iGWZ100..CHI202004-202202

BLACK/LT.GRAY,TRIM2#

main71078-11030-C5iGWZ100..CHI202004

BLACK/ORANGE,TRIM42

main71078-11030-C7iGWZ100..CHI202202

BLACK/RED,TRIM23

main71078-11030-D1iGWZ100..CHI201712-202004

DK.ROSE,TRIM3#

main71078-11030-D3iGWZ100..CHI202004

RED,TRIM3#

main71078-11030-E1iGWZ100..CHI201909-202004

LT.OCHRE,TRIM40

main71078-11030-E1iGWZ100..CHI201712-201909

LT.OCHRE,TRIM4#

main71078-11030-E3iGWZ100..CHI201909-202004

SADDLE TAN,TRIM41

main71078-11030-E4iGWZ100..CHI202004

LT.OCHRE,TRIM40

71385CBRACKET, REAR SEAT CUSHION HOLDER

main71385-24010iGWZ100,URZ100201703

71462SPRING, REAR SEAT CUSHION, NO.2

main71462-11010iGWZ100,URZ100201703

71611PAD, REAR SEAT CUSHION

main71503-11010iGWZ100,URZ100201703-201808

sub71503-11011

main71503-11011iGWZ100,URZ100201809

71613BPAD, REAR SEAT CUSHION, RH

main71613-11010iGWZ100,URZ100201703-201809

71614CPAD, REAR SEAT CUSHION, LH

main71614-11010iGWZ100,URZ100201703-201809

71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)

main71507-11010iGWZ100,URZ100201703

71652SPAD, REAR SEATBACK, LH(FOR SEPARATE TYPE)

main71508-11010iGWZ100,URZ100201703

72693HOOK, REAR SEAT CUSHION LOCK

main72693-12080iGWZ100,URZ100201703

72996ACOVER, REAR SEATBACK

main72996-11010-C1iGWZ100,URZ100..ARL,CHI,GCC202202

BLACK,TRIM20,21,22,3#,42

main72996-11010-C1iGWZ100,URZ100..ARL,CHI,GCC201703-202202

BLACK,TRIM2#,3#,42

main72996-11010-D0iGWZ100,URZ100..ARL,CHI,GCC202202

DK. ROSE,TRIM23

main72996-11010-E0iGWZ100,URZ100201703

OCHRE,TRIM40

main72996-11010-E1iGWZ100,URZ100201909-202004

KUROKOHAKU,TRIM41

main72996-11010-E2iGWZ100,URZ100202004

ORANGE,TRIM42

main72996-11010-J0iGWZ100,URZ100201703-202004

BLUE,TRIM8#

73705BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH

main73705-11010iGWZ100,URZ100201703

73706BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH

main73706-11010iGWZ100,URZ100201703

9017808021

main90178-08021

9017906274

main90179-06274

9046709232

main90467-09232

9046710161

main90467-10161

9167180820

main91671-80820

9167380616

main91673-80616

9167380816

main91673-80816

22 parts on this diagram · 2 diagrams in section
