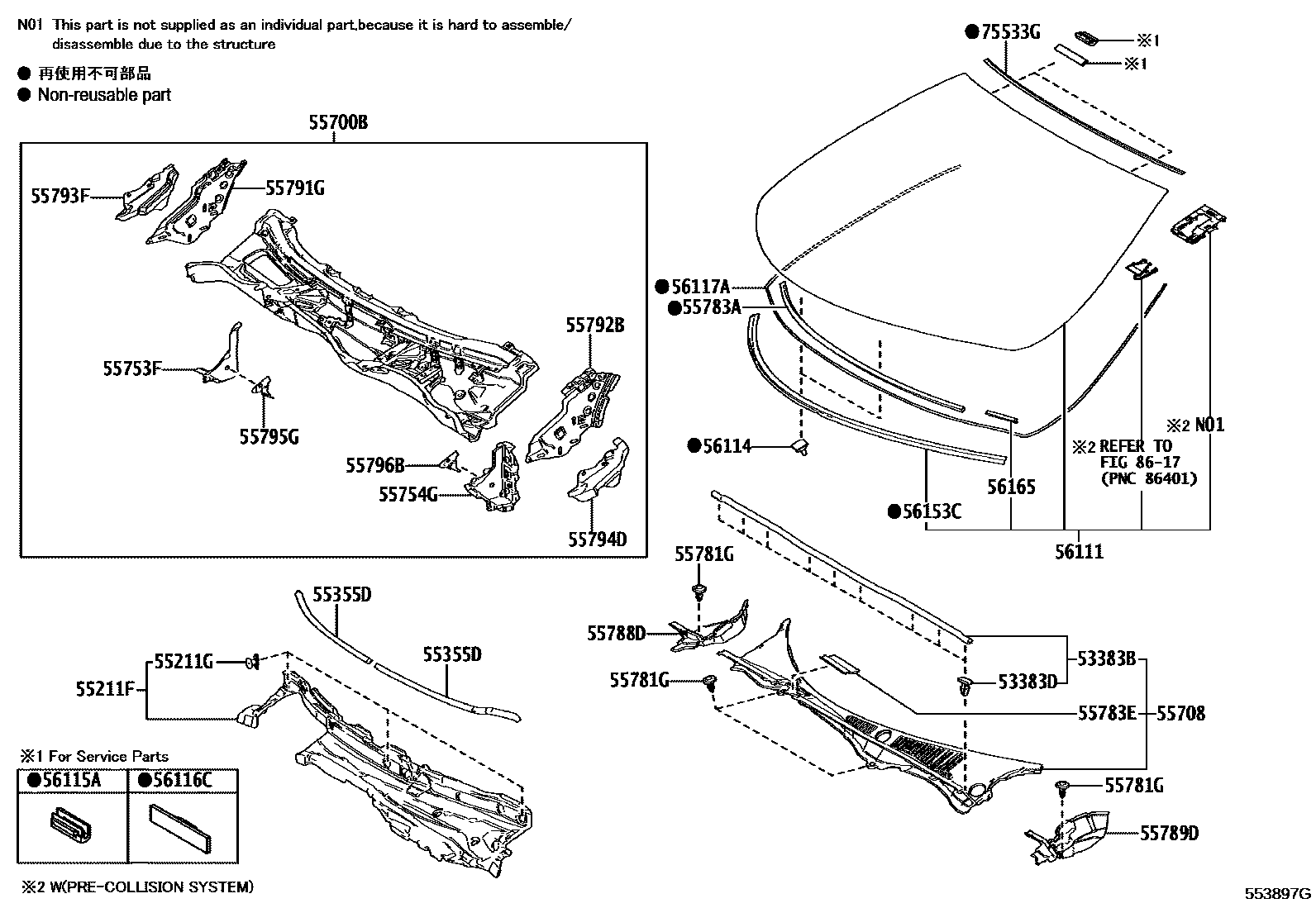

COWL PANEL & WINDSHIELD GLASS
53383BSEAL, HOOD TO COWL TOP
53383DCLIP(FOR HOOD TO COWL TOP SEAL)
55211FCOVER, DASH PANEL INSULATOR
55211GCLIP, DASH PANEL INSULATOR COVER
55355DCUSHION, INSTRUMENT PANEL, NO.1
55753FBRACKET, INSTRUMENT PANEL TO COWL, NO.1
55754GBRACKET, INSTRUMENT PANEL TO COWL, NO.2
55781GCLIP, COWL TOP VENTILATOR LOUVER
55783APAD, COWL TOP SILENCER
55783ELOUVER, COWL TOP VENTILATOR, CENTER
55788DINSULATOR, COWL TOP PANEL, NO.2
55789DINSULATOR, COWL TOP PANEL, NO.3
55791GCOVER, COWL REINFORCEMENT, UPPER RH
55792BCOVER, COWL REINFORCEMENT, UPPER LH
55793FCOVER, COWL REINFORCEMENT, UPPER NO.2 RH
55794DCOVER, COWL REINFORCEMENT, UPPER NO.2 LH
55795GCOVER, COWL REINFORCEMENT, UPPER NO.3 RH
55796BCOVER, COWL REINFORCEMENT, UPPER NO.3 LH
56111GLASS, WINDSHIELD
56114RETAINER, WINDSHIELD GLASS
56115ASTOPPER, WINDSHIELD GLASS, NO.1
56116CSTOPPER, WINDSHIELD GLASS, NO.2
56117ADAM, WINDOW GLASS ADHESIVE
L=3500,INDONESIA SPEC
L=3500,PHILIPPINE SPEC
L=3500,MIDDLE & SOUTH AMERICA SPEC
L=3500,HEAD UP DISPLAY-WITH
L=3500,INDONESIA SPEC&HEAD UP DISPLAY-WITH
L=3500
L=3500,HONGKONG SPEC
56153CMOULDING, FRONT WINDOW, INNER CENTER
56165COVER, FRONT WINDOW INNER MOULDING, LH
75533GMOULDING, WINDSHIELD, OUTSIDE
8617
29 parts on this diagram · 4 diagrams in section
