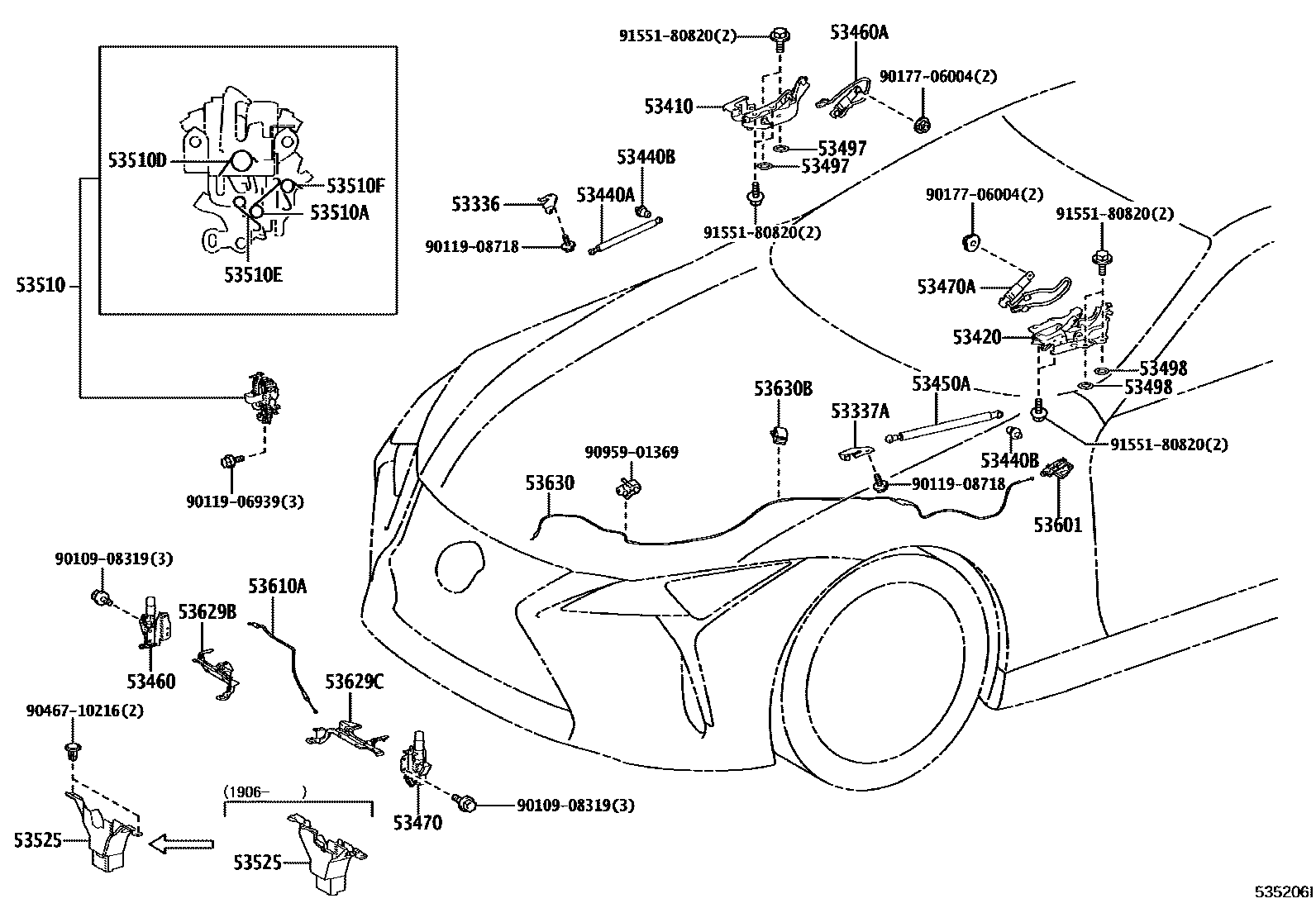

HOOD LOCK & HINGE

0001 1 0002 1

53336BRACKET, HOOD STAY, RH

main53336-11010iGWZ100,URZ100201703

53337ABRACKET, HOOD STAY, LH

main53337-11010iGWZ100,URZ100201703

53410HINGE ASSY, HOOD, RH

main53410-11060iGWZ100,URZ100201703

53420HINGE ASSY, HOOD, LH

main53420-11060iGWZ100,URZ100201703

53440ASUPPORT ASSY, HOOD, RH

main53440-0W400iGWZ100,URZ100201703

53440BBOLT, HOOD SUPPORT, NO.1

main68961-20051×2iGWZ100,URZ100201703

53450ASUPPORT ASSY, HOOD, LH

main53440-0W400iGWZ100,URZ100201703

53460LIFTER ASSY, POP UP HOOD, RH

main53460-11040iGWZ100,URZ100201703-202207

main53460-11041iGWZ100,URZ100202208

53460ALIFTER ASSY, POP UP HOOD, NO.2 RH

main53460-11050iGWZ100,URZ100201703-202207

main53460-11051iGWZ100,URZ100202208

53470LIFTER ASSY, POP UP HOOD, LH

main53470-11040iGWZ100,URZ100201703-202207

main53470-11041iGWZ100,URZ100202208

53470ALIFTER ASSY, POP UP HOOD, NO.2 LH

main53460-11050iGWZ100,URZ100201703-202207

main53460-11051iGWZ100,URZ100202208

53497PAD, HOOD HINGE, NO.1

main53497-50020×2iGWZ100,URZ100201703

T=1.0

53498PAD, HOOD HINGE, NO.2

main53497-50020×2iGWZ100,URZ100201703

T=1.0

53510LOCK ASSY, HOOD

main53510-11010iGWZ100,URZ100201703

53510ASPRING, TENSION(FOR HOOD LOCK)

main90508-09016iGWZ100,URZ100201703

WD=0.9

53510DSPRING, TENSION(FOR HOOD LOCK)

main90508-14127iGWZ100,URZ100201703

WD=1.4

53510ESPRING, TENSION(FOR HOOD LOCK)

main90508-14128iGWZ100,URZ100201703

WD=1.4

53510FSPRING, TENSION(FOR HOOD LOCK)

main90508-14129iGWZ100,URZ100201703

WD=1.4

53525PROTECTOR, HOOD LOCK RELEASE LEVER

main53525-11010iGWZ100,URZ100201703-201905

main53525-11020iGWZ100,URZ100201906

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-30090-C1iGWZ100,URZ100201703

BLACK,TRIM2#,3#,42

main53601-30090-E3iGWZ100,URZ100201703

OCHRE,TRIM40

main53601-30090-E7iGWZ100,URZ100201909-202004

KUROKOHAKU,TRIM41

main53601-30090-J1iGWZ100,URZ100201703-202004

BLUE,TRIM8#

53610ACONTROL ASSY, HOOD LOCK

main53610-11010iGWZ100,URZ100201703

53629BCOVER, HOOD LOCK CONTROL CABLE, RH

main53629-11010iGWZ100,URZ100201703

53629CCOVER, HOOD LOCK CONTROL CABLE, LH

main53629-11020iGWZ100,URZ100..LHD201703

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-11010iGWZ100,URZ100..LHD201703

main53630-11020iGWZ100,URZ100..ARL201703

53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)

main82711-35470iGWZ100,URZ100201703

9010908319

main90109-08319

9011906939

main90119-06939

9011908718

main90119-08718

9017706004

main90177-06004

9046710216

main90467-10216

9095901369

main90959-01369

9155180820

main91551-80820

32 parts on this diagram · 2 diagrams in section
