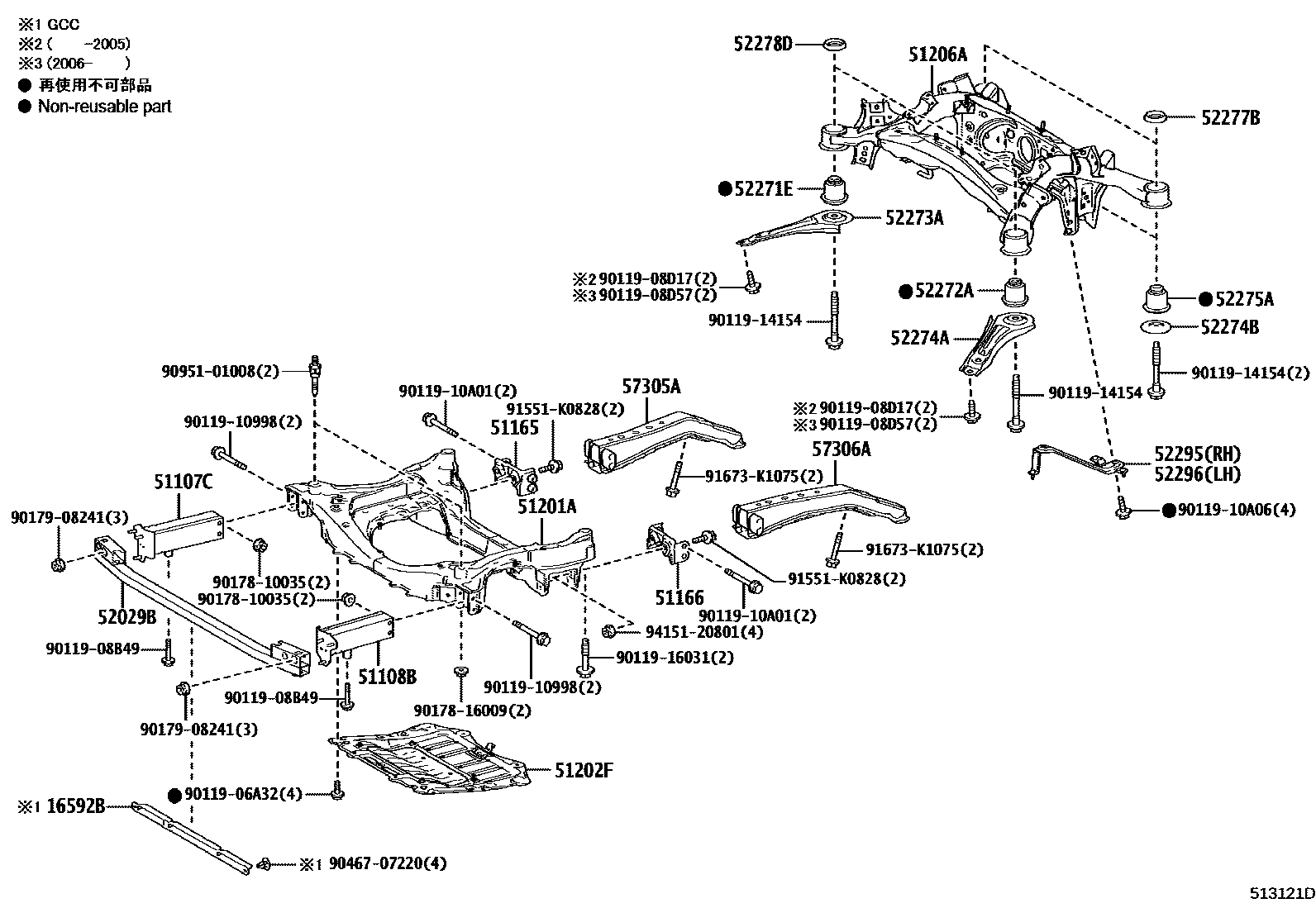

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1SUSPENSION CROSSMEMBER 0002 1UNDER COVER

16592BGUIDE, RADIATOR AIR, NO.3

main16592-31010i8GRFXS,2URGSE..GWZ100,URZ100..GCC201703

51107CRAIL SUB-ASSY, REAR FRAME, RH

main51107-11010iGWZ100,URZ100201703

51108BRAIL SUB-ASSY, REAR FRAME, LH

main51108-11010iGWZ100,URZ100201703

51165REINFORCEMENT, SIDE RAIL, NO.2 RH

main51165-11010iGWZ100,URZ100201703

51166REINFORCEMENT, SIDE RAIL, NO.2 LH

main51166-11010iGWZ100,URZ100201703

51201ACROSSMEMBER SUB-ASSY, FRAME, FRONT

main51201-11020iGWZ100,URZ100201703

51202FSUPPORT SUB-ASSY, STRUT BAR BRACKET

main51202-11020iGWZ100,URZ100201703

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-11010iGWZ100,URZ100201809-201906

LUSTER YELLOW*()

52029BREINFORCEMENT SUB-ASSY, FRONT BUMPER, NO.2

main52029-11010iGWZ100,URZ100201703

52271ECUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT RH

main52271-11010iGWZ100,URZ100201703

52272ACUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT LH

main52272-11010iGWZ100,URZ100201703

52273ASTOPPER, REAR SUSPENSION MEMBER, LOWER RH

main52273-11010iGWZ100,URZ100201703

52274ASTOPPER, REAR SUSPENSION MEMBER, LOWER LH

main52274-11010iGWZ100,URZ100201703

52274BSTOPPER, REAR SUSPENSION MEMBER, REAR LOWER

main52274-50020iGWZ100,URZ100201703

52275ACUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR

main52275-11010iGWZ100,URZ100201703

52277BSTOPPER, REAR SUSPENSION MEMBER, REAR UPPER

main52277-11010iGWZ100,URZ100201703

52278DSTOPPER, REAR SUSPENSION MEMBER, FRONT UPPER

main52278-11010iGWZ100,URZ100201703

52295BRACE, REAR SUSPENSION MEMBER, RH

main52295-11010iGWZ100,URZ100201703-202305

52296BRACE, REAR SUSPENSION MEMBER, LH

main52296-11010iGWZ100,URZ100201703-202305

57305AREINFORCEMENT SUB-ASSY, LOWER ARM MOUNTING, REAR RH

main57305-11010iGWZ100,URZ100201703-201809

sub57305-30060

main57305-30060iGWZ100,URZ100201809

57306AREINFORCEMENT SUB-ASSY, LOWER ARM MOUNTING, REAR LH

main57306-11010iGWZ100,URZ100201703-201809

sub57306-30080

main57306-30080iGWZ100,URZ100201809

9011906A32

main90119-06A32

9011908B49

main90119-08B49

9011908D17

main90119-08D17

9011908D57

main90119-08D57

9011910998

main90119-10998

9011910A01

main90119-10A01

9011910A06

main90119-10A06

9011914154

main90119-14154

9011916031

main90119-16031

9017810035

main90178-10035

9017816009

main90178-16009

9017908241

main90179-08241

9046707220

main90467-07220

9095101008

main90951-01008

91551K0828

main91551-K0828

91673K1075

main91673-K1075

9415120801

main94151-20801

38 parts on this diagram · 2 diagrams in section
