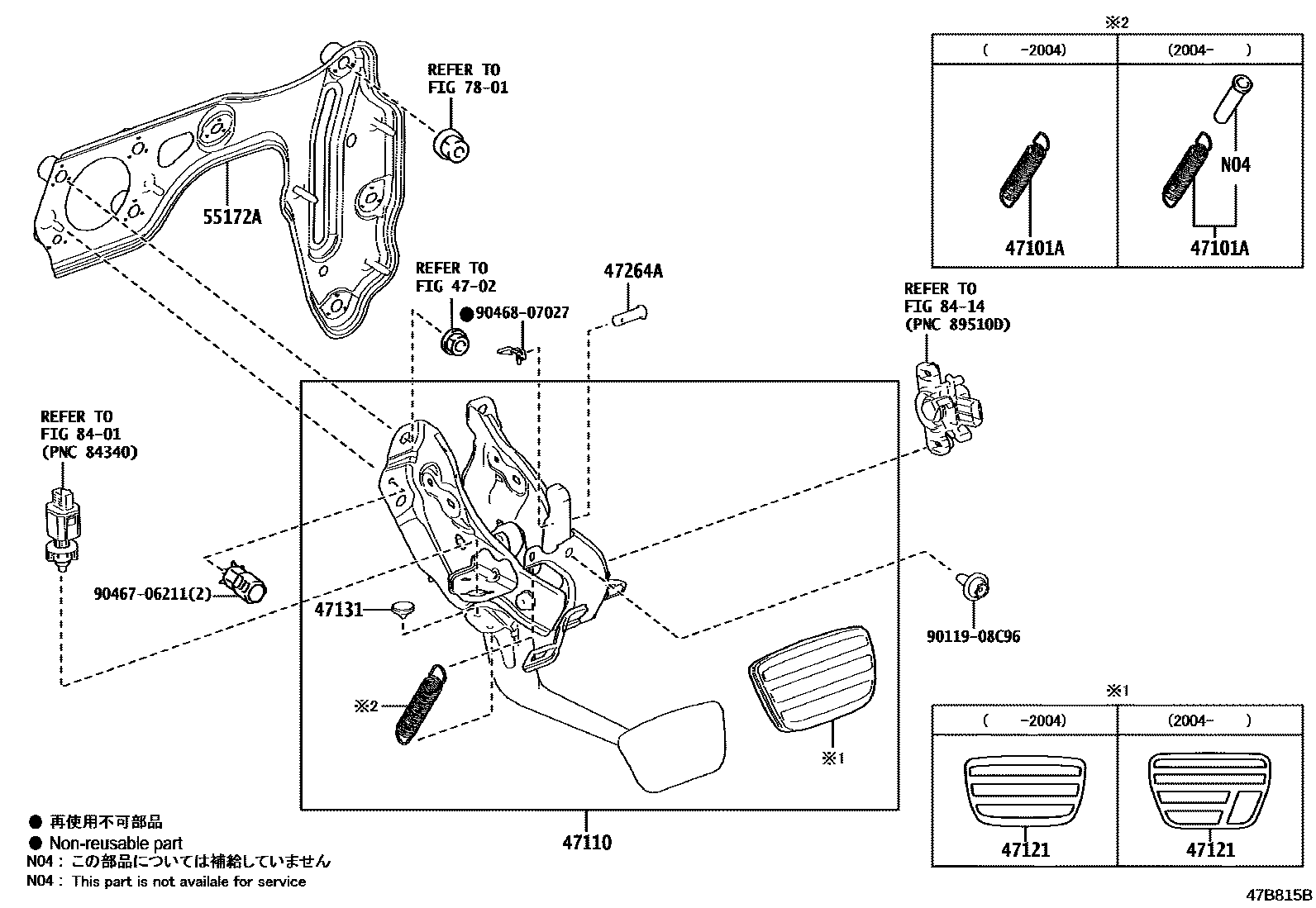

BRAKE PEDAL & BRACKET

0001 1 0002 1

4702

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-13014iGWZ100,URZ100202004

main90507-14054iGWZ100,URZ100201703-202004

47110SUPPORT ASSY, BRAKE PEDAL

main47110-11010iGWZ100,URZ100..LHD201703-202003

sub47110-11011

main47110-11011iGWZ100,URZ100..LHD202004

sub47110-11030

main47110-11020iGWZ100,URZ100..ARL201703-202003

sub47110-11021

main47110-11021iGWZ100,URZ100..ARL202004

sub47110-11040

47121PAD, BRAKE PEDAL

main47121-11010iGWZ100,URZ100201703-202004

main47121-11020iGWZ100,URZ100202004

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06036iGWZ100,URZ100201703

47264APIN(FOR PUSH ROD)

main90240-08078iGWZ100,URZ100201806

main90240-08082iGWZ100,URZ100201703-201805

55172ABASE, BRAKE PEDAL SUPPORT

main55172-11010iGWZ100,URZ100..LHD201703

main55172-11020iGWZ100,URZ100..ARL201703

7801

8401

8414

9011908C96

main90119-08C96

9046706211

main90467-06211

9046807027

main90468-07027

13 parts on this diagram · 2 diagrams in section
