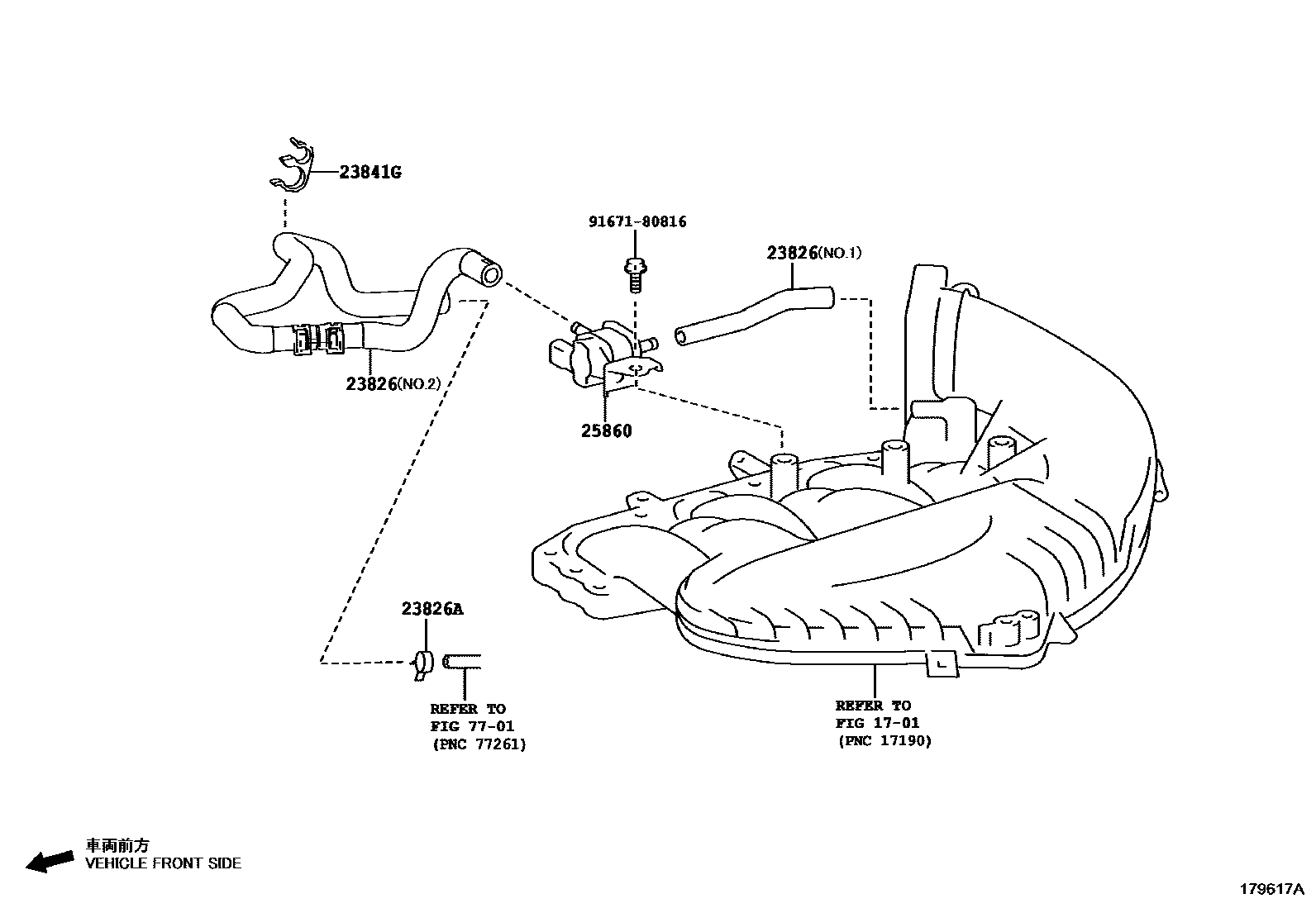

VACUUM PIPING

0001 1 0002 1 0003 1INTAKE AIR SURGE TANK SIDE 0004 1EXHAUST MANIFOLD SIDE 0005 1SINGAPORE SPEC

1701

23826HOSE, FUEL VAPOR FEED, NO.1

main23826-31320i8GRFXS..GWZ100..ARL,GCC,GEN201703-202004

NO.1

main23826-31330i8GRFXS..GWZ100..CHI202004

NO.1

main23826-31330i8GRFXS..GWZ100..CHI201901-202004

EXHAUST EMISSION CONTROL-CHINA 6B,NO.1

main23826-31360i8GRFXS..GWZ100..CHI201901-202004

EXHAUST EMISSION CONTROL-CHINA 6B,NO.2

main23826-31360i8GRFXS..GWZ100..CHI202004

NO.2

main23826-31370i8GRFXS..GWZ100..CHI201703-202004

NO.2

main23826-38040i2URGSE..URZ100201703

23826ACLIP(FOR FUEL VAPOR FEED HOSE, NO.1)

main96132-51300i2URGSE..URZ100201703-202004

main96133-41301i2URGSE..URZ100202004

main96136-41901i8GRFXS..GWZ100201703

23841GCLAMP, FUEL HOSE

main23841-31180i8GRFXS..GWZ100201703

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-31090i8GRFXS..GWZ100..CHI201901-202004

EXHAUST EMISSION CONTROL-CHINA 6B

main25860-31110i8GRFXS..GWZ100..ARL,GCC,GEN201703-202004

main25860-38030i2URGSE..URZ100201703

7701

9167180816

main91671-80816

7 parts on this diagram · 5 diagrams in section
