EXHAUST PIPE

0001 1 0002 1

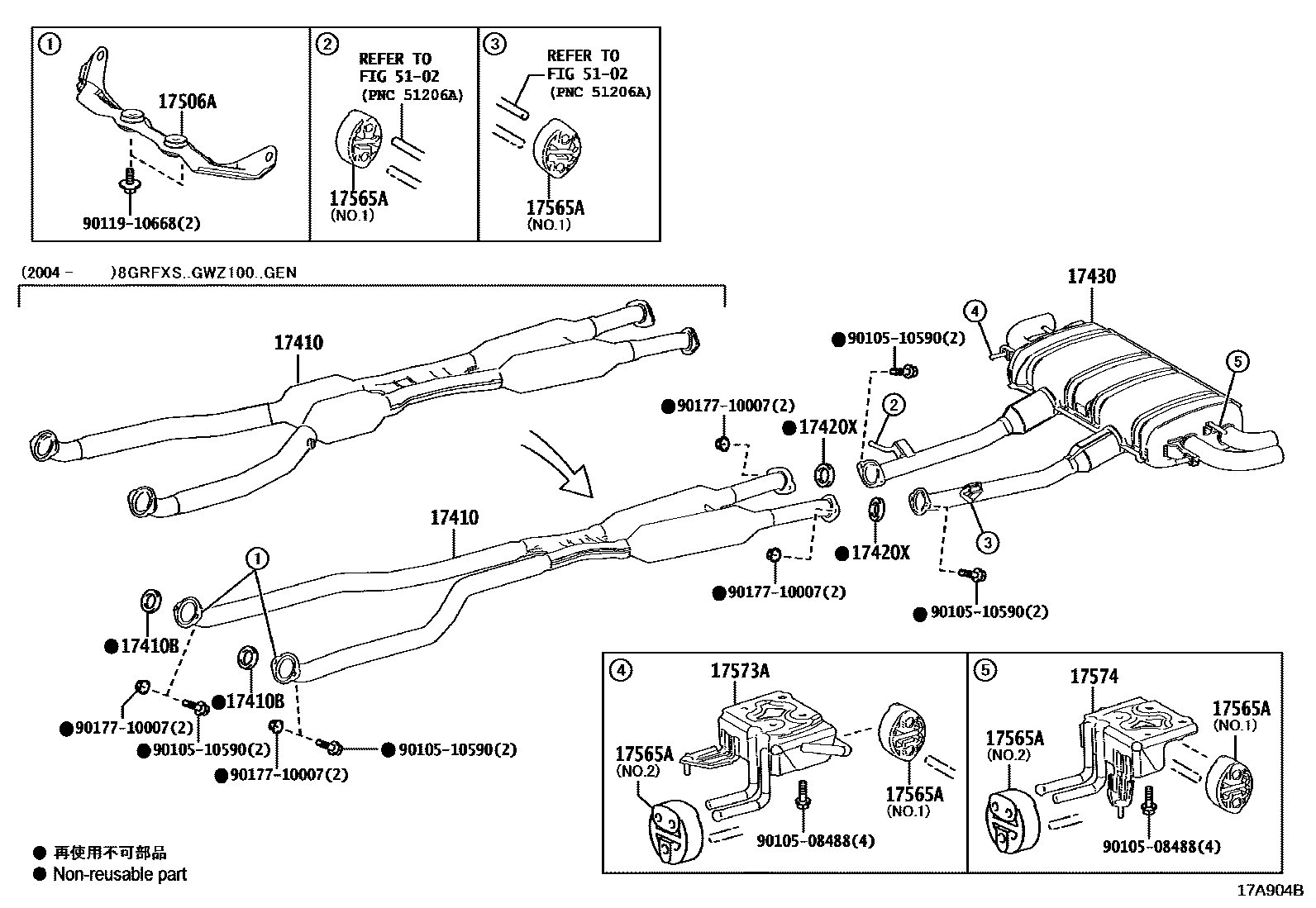

17410PIPE ASSY, EXHAUST, FRONT

main17410-31F20i8GRFXS..GWZ100..GEN201703-202004

main17410-31M70i8GRFXS..GWZ100..GEN202004

*114=TOYOTA/PB1/Y

main17410-38570i2URGSE..URZ100..ARL,GCC201703-202004

*114=TOYOTA/PA6/Y

main17410-38610i2URGSE..URZ100..GEN202004

*114=TOYOTA/PB1/Y

17410BGASKET, EXHAUST PIPE

main90917-06070i2URGSE..URZ100201703

main90917-06078i8GRFXS..GWZ100201703

17420XGASKET, EXHAUST PIPE, CENTER

main90917-06078i2URGSE..URZ100201703

main90917-06083i8GRFXS..GWZ100201703

17430PIPE ASSY, EXHAUST, TAIL

main17405-38041i2URGSE..URZ100201703-201911

sub17405-38050

main17405-38050i2URGSE..URZ100201911

main17430-31E51i8GRFXS..GWZ100201703

17506ABRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT

main17506-31140i8GRFXS..GWZ100201703-201912

sub17506-31141

main17506-31141i8GRFXS..GWZ100202001

main17506-38150i2URGSE..URZ100201703

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-28010i8GRFXS,2URGSE..GWZ100,URZ100201703

NO.1

main17565-31050i8GRFXS,2URGSE..GWZ100,URZ100201703

NO.2

17573ABRACKET, EXHAUST PIPE SUPPORT, NO.3

main17573-38072i8GRFXS,2URGSE..GWZ100,URZ100201703

17574BRACKET, EXHAUST PIPE SUPPORT, NO.4

main17574-38092i8GRFXS,2URGSE..GWZ100,URZ100201703

5102

9010508488

main90105-08488

9010510590

main90105-10590

9011910668

main90119-10668

9017710007

main90177-10007

13 parts on this diagram · 2 diagrams in section
