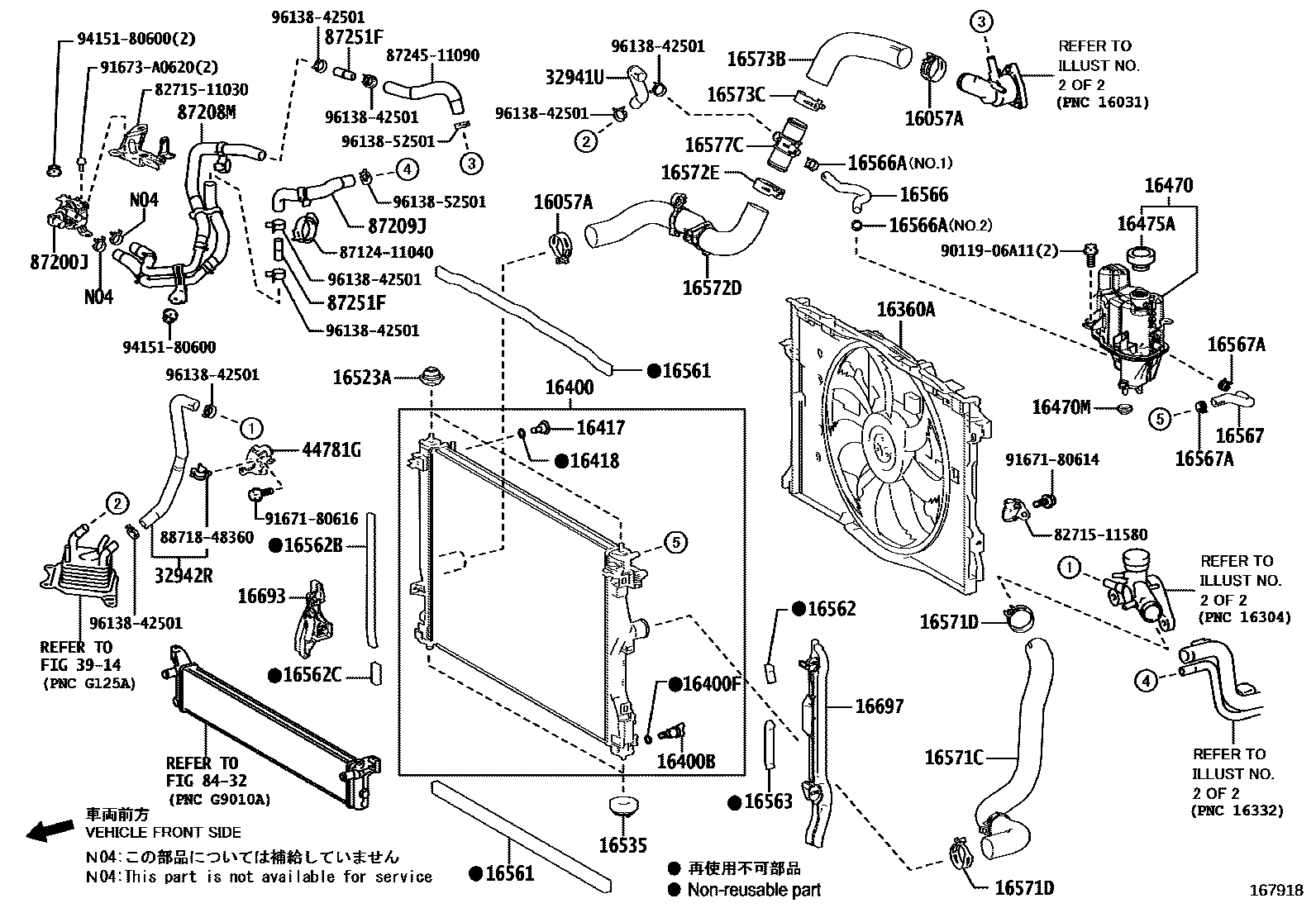

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1RADIATOR SIDE 0005 1ENGINE SIDE PIPING 0006 1OIL COOLER SIDE PIPING

16057HOSE SUB-ASSY, RADIATOR

main16058-31060i2URGSE..URZ100201703

16057ACLIP, HOSE(FOR RADIATOR HOSE SUB-ASSY)

main90466-39002×2i8GRFXS..GWZ100201703

main96136-42101i2URGSE..URZ100201703

NO.2:REFER ILLUST.

main96138-52501i2URGSE..URZ100201703

NO.1:REFER ILLUST.

16360AFAN ASSY, W/MOTOR

main16360-31520i2URGSE..URZ100201703

main16360-31530i8GRFXS..GWZ100..ARL,CHI,GEN201703

16400RADIATOR ASSY

main16400-31700i2URGSE..URZ100201703

16400BPLUG, RADIATOR DRAIN COCK

main16417-21280i2URGSE..URZ100201703

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16492-21050i2URGSE..URZ100201703

16417COCK

main16417-28530i2URGSE..URZ100201703

16418PACKING

main16418-20291i2URGSE..URZ100201703

16470TANK ASSY, RADIATOR RESERVE

main16470-31200i8GRFXS..GWZ100201703

main16470-38060i2URGSE..URZ100201703

16470MGROMMET

main90480-18010i2URGSE..URZ100201703

16475ACAP, RESERVE TANK

main16475-28140i2URGSE..URZ100201703

16523ACUSHION, RADIATOR SUPPORT

main16523-38010×2i2URGSE..URZ100201703

16535SUPPORT, RADIATOR, LOWER

main90480-40022×2i2URGSE..URZ100201703

16561SEAL, RADIATOR TO SUPPORT, NO.1

main16561-31170×2i2URGSE..URZ100201703

16562SEAL, RADIATOR TO SUPPORT, NO.2

main16561-31180i2URGSE..URZ100201703

16562BSEAL, RADIATOR TO SUPPORT, NO.4

main16561-31200i2URGSE..URZ100201703

16562CSEAL, RADIATOR TO SUPPORT, NO.5

main16561-31210i2URGSE..URZ100201703

16563SEAL, RADIATOR TO SUPPORT, NO.3

main16561-31190i2URGSE..URZ100201703

16566HOSE, RESERVE TANK OUTLET

main16566-31040i8GRFXS..GWZ100201703

main16566-31050i2URGSE..URZ100201703

16566ACLIP(FOR RESERVE TANK OUTLET)

main96136-41901i8GRFXS..GWZ100201703

NO.1

main96137-41501i2URGSE..URZ100201703

NO.2:REFER ILLUST.

main96137-41701i2URGSE..URZ100201703

NO.1:REFER ILLUST.

16567HOSE(FOR RADIATOR RESERVE TANK)

main16567-31050i8GRFXS..GWZ100201703

main16567-31060i2URGSE..URZ100201703

16567ACLIP(FOR RADIATOR RESERVE TANK HOSE)

main96136-41901×2i2URGSE..URZ100201703

16571HOSE, RADIATOR, INLET

main16571-31440i2URGSE..URZ100201703

16571CHOSE, RADIATOR, NO.1

main16571-31400i8GRFXS..GWZ100201703

main16571-31410i2URGSE..URZ100201703

16571DCLIP, RADIATOR HOSE, NO.1

main90466-39002×2i2URGSE..URZ100201703

16572HOSE, RADIATOR, OUTLET

main16572-31480i2URGSE..URZ100201703

16572DHOSE, RADIATOR, NO.2

main16572-31470i8GRFXS..GWZ100201703

16572ECLIP, RADIATOR HOSE, NO.2

main90466-39002i8GRFXS..GWZ100201703

16573BHOSE, RADIATOR, NO.3

main16573-31090i8GRFXS..GWZ100201703

main16573-31120i2URGSE..URZ100201703

16573CCLAMP OR CLIP, RADIATOR HOSE, NO.3

main90466-39002i2URGSE..URZ100201703

16577CPIPE, RADIATOR

main16577-31050i8GRFXS..GWZ100201703

main16577-31060i2URGSE..URZ100201703

16693PLATE, RADIATOR SIDE AIR GUIDE, RR RH

main16693-31030i2URGSE..URZ100201703

16697PLATE, RADIATOR SIDE AIR GUIDE, RR LH

main16697-31030i2URGSE..URZ100201703

32941UHOSE, OIL COOLER INLET

main32941-11030iGWZ100201703

32942RHOSE, OIL COOLER OUTLET

main32942-11030iGWZ100201703

3914

44781GBRACKET, HOSE

main44781-11010iGWZ100201703

8432

87200JACCESSORY ASSY, HEATER

main87200-11010iGWZ100201703

87208MPIPE SUB-ASSY, WATER

main87208-11010iGWZ100201703-202010

main87208-11011iGWZ100202011

87209JHOSE SUB-ASSY, WATER

main87209-11050iGWZ100201703

87251FJOINT, WATER

main87251-35020×2iGWZ100201703

8271511030BRACKET,WIRING HARNESS CLAMP

main82715-11030

8271511580BRACKET,WIRING HARNESS CLAMP

main82715-11580

8712411040CLAMP, HEATER

main87124-11040

8724511090HOSE, HEATER WATER, INLET

main87245-11090

8871848360PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-48360

9011906A11

main90119-06A11

9167180614

main91671-80614

9167180616

main91671-80616

91673A0620

main91673-A0620

9415180600

main94151-80600

9613842501

main96138-42501

9613852501

main96138-52501

54 parts on this diagram · 6 diagrams in section
