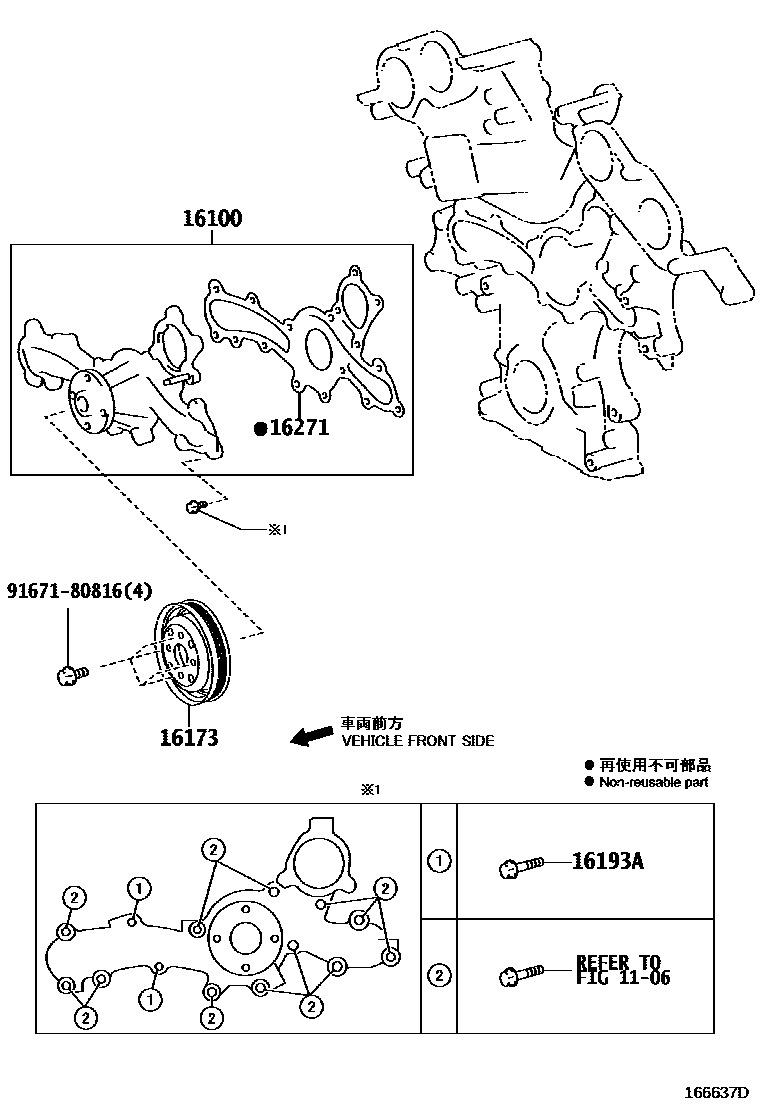

WATER PUMP

0001 1 0002 1

1106

16100PUMP ASSY, ENGINE WATER

main16100-39506i2URGSE..URZ100201703

main16100-39615i8GRFXS..GWZ100201703-202004

sub16100-39616

main16100-39616i8GRFXS..GWZ100202004

16173PULLEY, WATER PUMP

main16173-31040i8GRFXS..GWZ100201703-202003

sub16173-31041

main16173-31041i8GRFXS..GWZ100202004-202012

sub16173-31042

main16173-31042i8GRFXS..GWZ100202101

main16173-38040i2URGSE..URZ100201703-202005

sub16173-38041

main16173-38041i2URGSE..URZ100202006

16193ABOLT(FOR WATER PUMP COVER)

main16193-31080i8GRFXS..GWZ100201703

16271GASKET, WATER PUMP

main16271-31050i8GRFXS..GWZ100201703

main16271-38010i2URGSE..URZ100201703

9167180816

main91671-80816

6 parts on this diagram · 2 diagrams in section
