STANDARD TOOL

09110JACK ASSY

main09111-11060iGWZ100,URZ100..ARL201703-201809

main09111-50130iGWZ100,URZ100..LHD201703-201809

HONGKONG SPEC

sub09111-50131

main09111-50130iGWZ100,URZ100..LHD201703-201809

SOUTH AFRICA SPEC

sub09111-50131

main09111-50130iGWZ100,URZ100..LHD201703-201809

BRUNEI SPEC

sub09111-50131

main09111-50130iGWZ100,URZ100..LHD201703-201809

SINGAPORE SPEC

sub09111-50131

main09111-50130iGWZ100,URZ100..LHD201703-201809

THAILAND SPEC

sub09111-50131

main09111-50130iGWZ100,URZ100..LHD201703-201809

MALAYSIA SPEC

sub09111-50131

09113HANDLE, JACK

main09113-30050iGWZ100,URZ100201703-201809

09120BAG, TOOL

main09120-24020

09130PLIERS

main09130-50040

09135DRIVER, SCREW

main99915-10700iGWZ100,URZ100201703

09141SPANNER

main09141-60010

main09141-60020

09150WRENCH, HUB NUT BOX

main09150-50040iGWZ100,URZ100201703-201809

51960HOOK ASSY, FRONT

main51961-11030iGWZ100,URZ100201703

81604REFLECTOR SET, TRIANGLE

main81604-78010iGWZ100..CHI201804

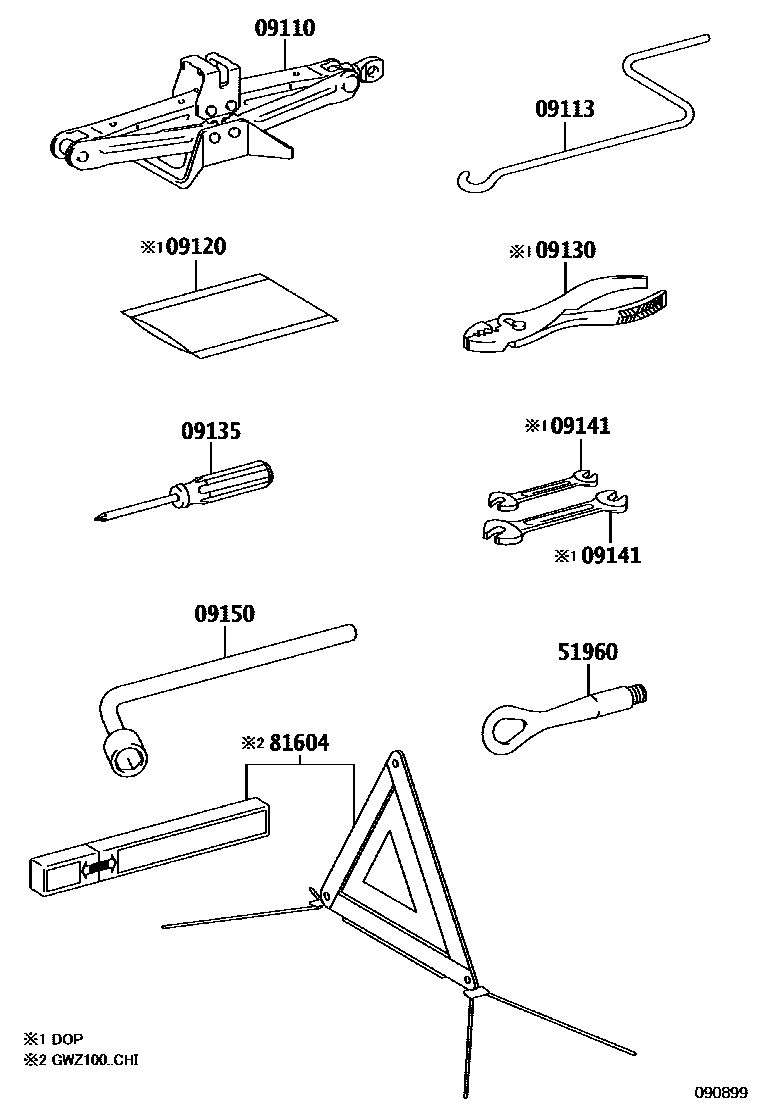

9 parts on this diagram · 1 diagram in section
