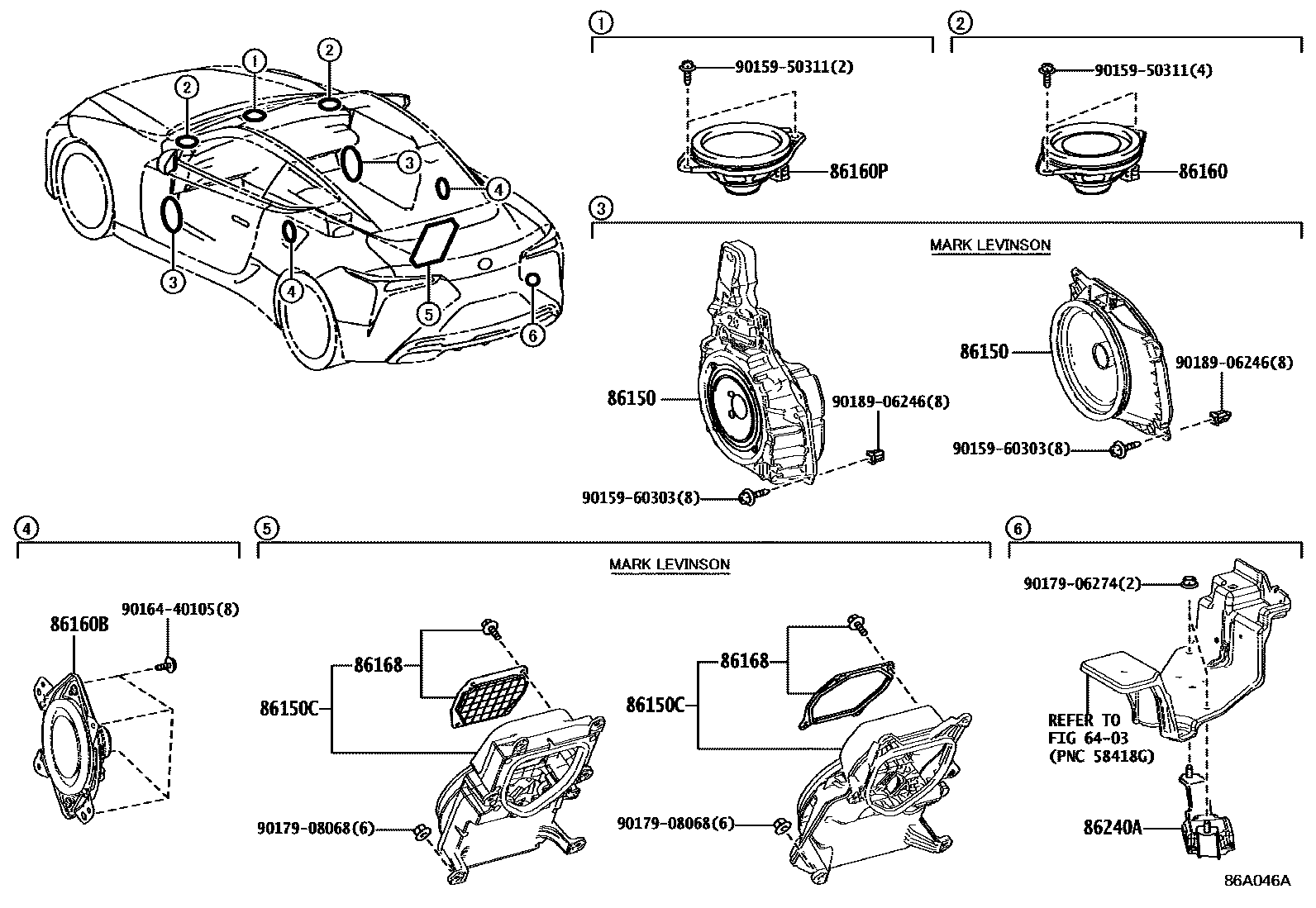

SPEAKER

0001 1 0002 1

6403

86150SPEAKER ASSY, W/BOX, NO.1

main86150-11020iGWZ100..CHI202305

AUDIO-FM & 13SPEAKER,RH

main86150-11020iGWZ100..CHI202305

RH

main86150-11030iGWZ100..CHI202305

LH

main86150-11070iGWZ100..CHI202305-202403

RH

main86150-11070iGWZ100,URZ100..ARL,GCC,GEN202305

AUDIO-FM & 13SPEAKER,RH

main86150-11090iGWZ100,URZ100..EUR202305-202403

LH

main86150-11090iGWZ100,URZ100..ARL,GCC,GEN202305

AUDIO-FM & 13SPEAKER,LH

86150CSPEAKER ASSY, W/BOX, NO.3

main86150-0W660iURZ100..CONV..EUR202305-202403

main86150-0W720iGWZ100,URZ100..CP..EUR202305-202403

main86150-0W720iGWZ100,URZ100..CP..(ARL,GCC,GEN)202305

AUDIO-FM & 13SPEAKER

main86150-11080iGWZ100..CHI202305

86160SPEAKER ASSY, FRONT NO.1

main86160-0WP80iGWZ100..CHI202305

AUDIO-FM & 13SPEAKER

main86160-0WP80iGWZ100,URZ100..EUR202305-202403

main86160-60730iGWZ100..CHI202305

AUDIO-FM & 13SPEAKER

86160BSPEAKER ASSY, REAR

main86150-0W470iGWZ100,URZ100..CP..(ARL,GCC,GEN)202305

AUDIO-FM & 13SPEAKER

main86150-0W470iGWZ100,URZ100..CP..EUR202305-202403

main86150-11050iGWZ100..CHI202305

main86160-78090iURZ100..CONV..EUR202305-202403

86160PSPEAKER ASSY, FRONT NO.2

main86160-0WP80iGWZ100,URZ100..EUR202305-202403

main86160-0WP80iGWZ100,URZ100..ARL,GCC,GEN202305

AUDIO-FM & 13SPEAKER

main86160-11060iGWZ100..CHI202305

AUDIO-FM & 13SPEAKER

86168COVER, SPEAKER MOUNTING

main86168-0W020iGWZ100,URZ100..CP..EUR202305-202403

main86168-0W020iGWZ100,URZ100..CP..(ARL,GCC,GEN)202305

AUDIO-FM & 13SPEAKER

main86168-11010iGWZ100..CHI202305

86240AEQUALIZER ASSY,STEREO COMPONENT

main86240-11030iGWZ100,URZ100..CP..EUR202305-202403

main86240-11040iURZ100..CONV..EUR202305-202403

9015950311

main90159-50311

9015960303

main90159-60303

9016440105

main90164-40105

9017906274

main90179-06274

9017908068

main90179-08068

9018906246

main90189-06246

14 parts on this diagram · 2 diagrams in section
