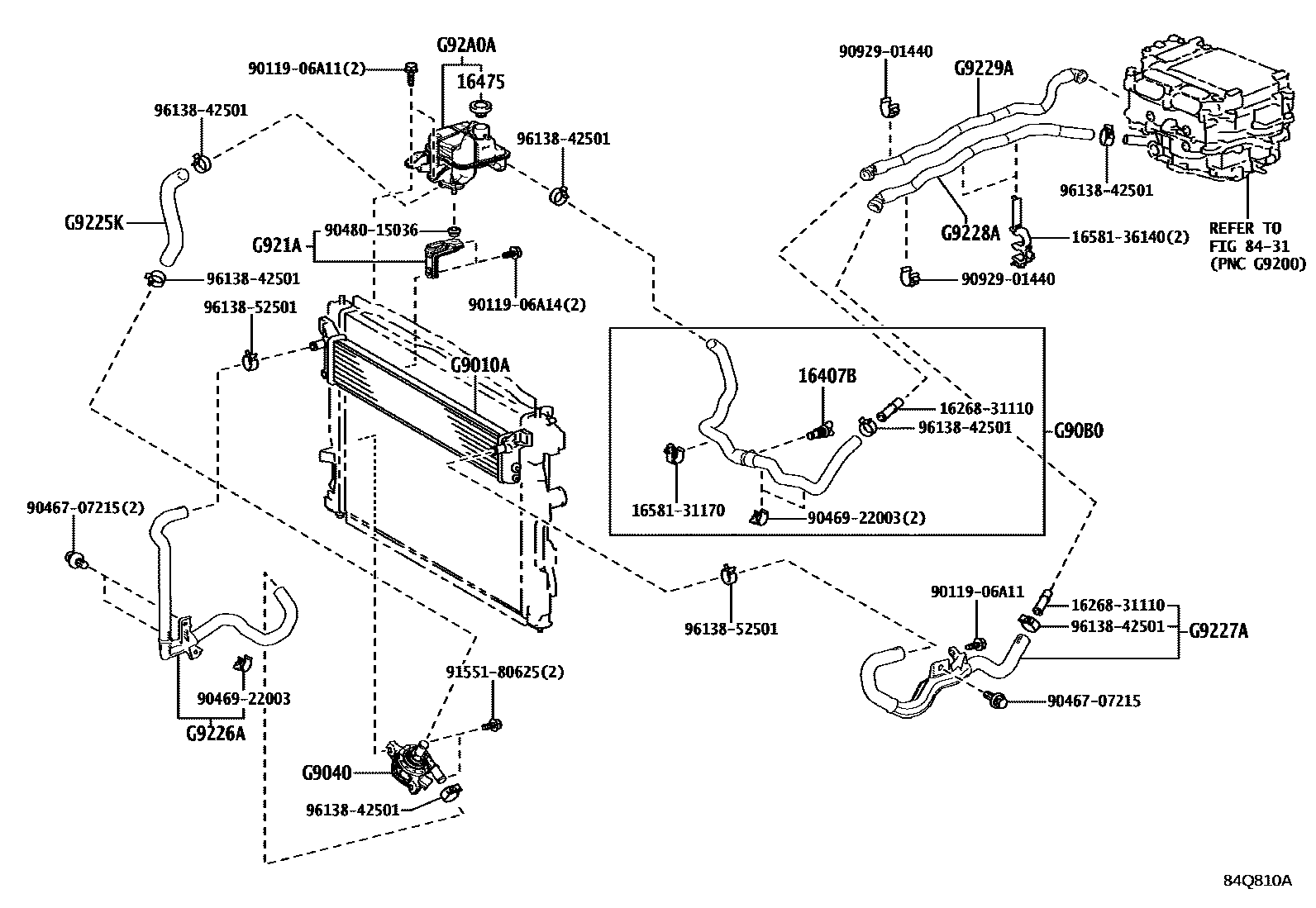

INVERTER COOLING

0001 1 0002 1

16407BCOCK SUB-ASSY, RADIATOR DRAIN

main16407-64010i8GRFXS..GWZ100..EUR202305-202403

16475CAP, RESERVE TANK

main16475-28140i8GRFXS..GWZ100..EUR202305-202403

8431

G9010ARADIATOR ASSY

mainG901011010iGWZ100..EUR202305-202403

G9040INVERTER WATER PUMP ASSY(W/MOTOR)

mainG904028020iGWZ100202305-202312

subG9040-48060

mainG904048060iGWZ100..EUR202401-202403

G90B0HOSE ASSY, INVERTER COOLING, NO.2

mainG90B011030iGWZ100..RHD..EUR202305-202403

G921ABRACKET, INVERTER RESERVE TANK, NO.1

mainG91H211010iGWZ100..EUR202305-202403

G9225KHOSE, INVERTER COOLING, NO.1

mainG922511010iGWZ100..EUR202305-202403

G9226AHOSE, INVERTER COOLING, NO.2

mainG922611010iGWZ100..EUR202305-202403

G9227AHOSE, INVERTER COOLING, NO.3

mainG922711010iGWZ100..LHD..EUR202305-202403

mainG922711020iGWZ100..RHD..EUR202305-202403

G9228AHOSE, INVERTER COOLING, NO.4

mainG922811030iGWZ100..LHD..EUR202305-202403

mainG922811041iGWZ100..ARL202305-202403

G9229AHOSE, INVERTER COOLING, NO.5

mainG922911041iGWZ100..RHD..EUR202305-202403

G92A0ATANK ASSY, INVERTER RESERVE

mainG91H011010iGWZ100..EUR202305-202403

1626831110PIPE, WATER BY-PASS, NO.1

main16268-31110

1658131170CLAMP, HOSE(FOR WATER HOSE)

main16581-31170

1658136140CLAMP, HOSE(FOR WATER HOSE)

main16581-36140

9011906A11

main90119-06A11

9011906A14

main90119-06A14

9046707215

main90467-07215

9046922003

main90469-22003

9048015036

main90480-15036

9092901440

main90929-01440

9155180625

main91551-80625

9613842501

main96138-42501

9613852501

main96138-52501

25 parts on this diagram · 2 diagrams in section
