SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE & TRANSMISSION 0004 1ENGINE ROOM 0005 1ENGINE ROOM 0006 1ENGINE ROOM 0007 1ENGINE ROOM RELAY BLOCK 0008 1ENGINE ROOM RELAY BLOCK 0009 1ENGINE ROOM RELAY BLOCK 0010 1ENGINE ROOM RELAY BLOCK 0011 1COWL 0012 1COWL 0013 1INSTRUMENT PANEL 0014 1INSTRUMENT PANEL 0015 1CONSOLE BOX 0016 1STEERING 0017 1STEERING 0018 1SEAT 0019 1DOOR & ROOF 0020 1FLOOR & LUGGAGE

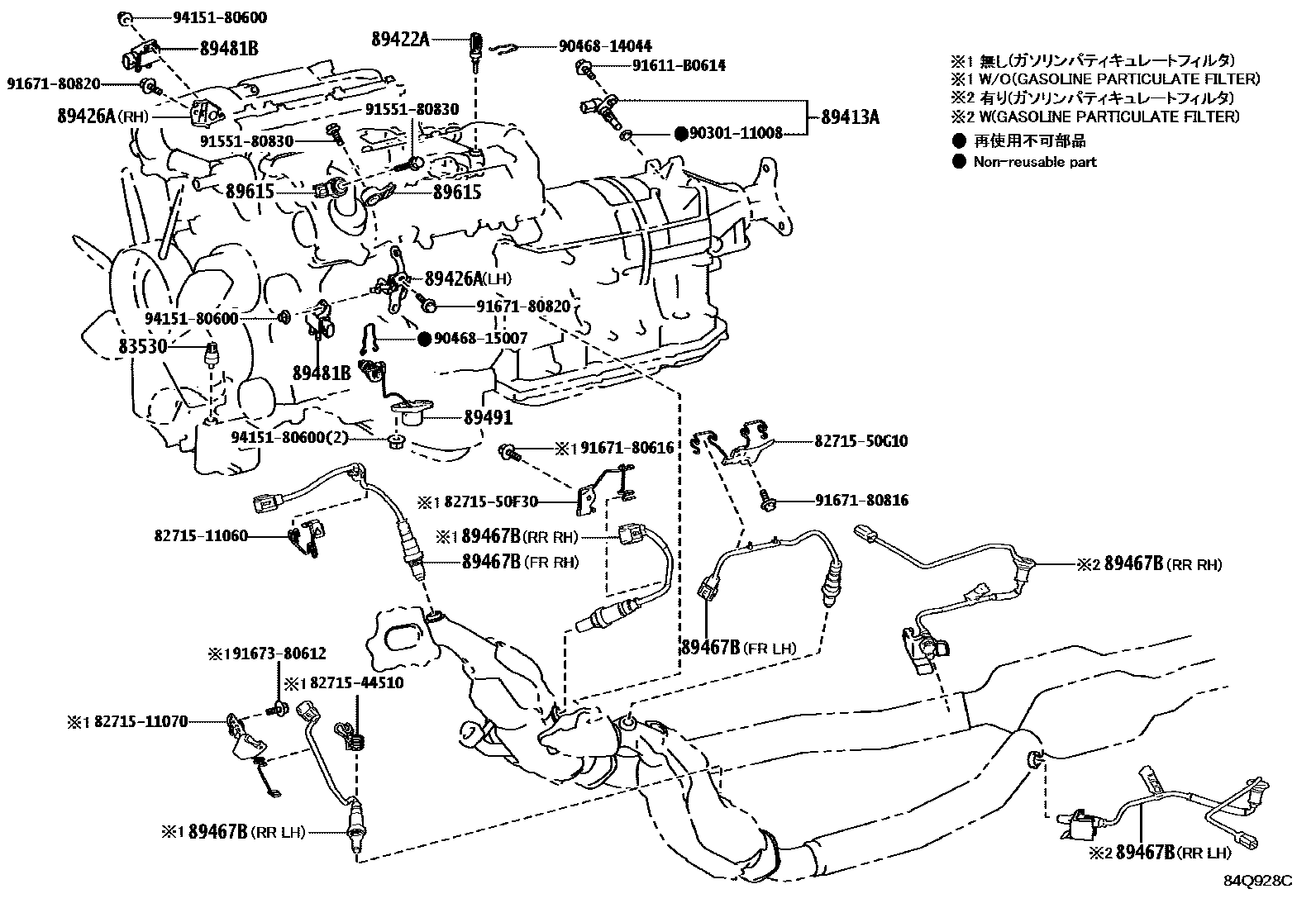

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iGWZ100,URZ100..EUR202305-202403

DENSO,*369

main83530-60020iGWZ100,URZ100..EUR202305-202403

YAZAKI,*369

89413ASENSOR, TRANSMISSION REVOLUTION

main89413-11011iGWZ100..EUR202305-202403

89422ASENSOR, WATER TEMPERATURE

main89422-47010iGWZ100..EUR202305-202403

89426ABRACKET, VACUUM SENSOR

main25715-31010iGWZ100..EUR202305-202403

RH

main25715-31010iGWZ100..CHI,GEN202305

ARGENTINA SPEC,RH

main25716-31010iGWZ100..CHI,GEN202305

ARGENTINA SPEC,LH

main25716-31010iGWZ100..CHI,GEN202305-202403

LH

main89426-11010iURZ100..CONV..GEN202305

SINGAPORE SPEC,RH

main89426-11010iURZ100..EUR202305-202403

RH

main89426-11010iURZ100..GEN202305

PHILIPPINE SPEC,RH

main89426-11010iURZ100..GEN202305

ARGENTINA SPEC,RH

main89426-11020iURZ100..EUR202305-202403

LH

main89426-11020iURZ100..ARL202305

SINGAPORE SPEC,LH

89467BSENSOR, AIR FUEL RATIO

main89467-11010iGWZ100..EUR202305-202403

FRONT LH

main89467-11020iGWZ100..EUR202305-202403

FRONT RH

main89467-11030iGWZ100..ARL,GCC202305

REAR LH

main89467-11030iGWZ100..GEN202305

ARGENTINA SPEC,REAR LH

main89467-11040iGWZ100..GEN202305

ARGENTINA SPEC,REAR RH

main89467-11040iGWZ100..ARL,GCC202305

REAR RH

main89467-11050iURZ100..ARL,GCC,GEN202305-202403

FRONT RH

main89467-11060iGWZ100..CHI202305

REAR LH

main89467-11070iGWZ100..CHI202305

REAR RH

main89467-11100iGWZ100..GEN202305-202403

REAR LH

main89467-11110iGWZ100..EUR202305-202403

REAR RH

main89467-24010iURZ100..EUR202305-202403

FRONT LH

89481BSENSOR, DIFFERENTIAL PRESSURE

main89481-71010iGWZ100,URZ100..EUR202305-202403

main89481-71010iGWZ100,URZ100..CHI,GEN202305

SINGAPORE SPEC

89491SENSOR, ENGINE OIL LEVEL

main89491-24020iURZ100..ARL,GCC,GEN202305-202403

main89491-30101iGWZ100..EUR202305-202403

89615SENSOR, KNOCK CONTROL

main89615-20090iURZ100..EUR202305-202403

8271511060BRACKET,WIRING HARNESS CLAMP

main82715-11060

8271511070BRACKET,WIRING HARNESS CLAMP

main82715-11070

8271544510BRACKET,WIRING HARNESS CLAMP

main82715-44510

8271550F30BRACKET,WIRING HARNESS CLAMP

main82715-50F30

8271550G10BRACKET,WIRING HARNESS CLAMP

main82715-50G10

9030111008

main90301-11008

9046814044

main90468-14044

9046815007

main90468-15007

9155180830

main91551-80830

91611B0614

main91611-B0614

9167180616

main91671-80616

9167180816

main91671-80816

9167180820

main91671-80820

9167380612

main91673-80612

9415180600

main94151-80600

23 parts on this diagram · 20 diagrams in section
