WIRING & CLAMP

0001 1ENGINE ROOM 1/2 0002 1ENGINE ROOM 2/2 0003 1ENGINE ROOM 1/2 0004 1ENGINE ROOM 2/2 0005 1ENGINE ROOM 1/2 0006 1ENGINE ROOM 2/2 0007 1ENGINE ROOM 1/2 0008 1ENGINE ROOM 2/2 0009 1ENGINE 1/2 0010 1ENGINE 2/2 0011 1ENGINE 1/2 0012 1ENGINE 2/2 0013 1INSTRUMENT PANEL 0014 1INSTRUMENT PANEL 0015 1DOOR 0016 1LUGGAGE ROOM 0017 1FLOOR & ROOF 0018 1FLOOR WIRE NO.4 0019 1FLOOR WIRE NO.4 0020 1HIGH TENSION CABLE 0021 1HIGH TENSION CABLE 0022 1SEAT 0023 1SEAT 0024 1CLAMP & BRACKET 0025 1CLAMP & BRACKET 0026 1CONNECTOR 1/2 0027 1CONNECTOR 2/2

82111WIRE, ENGINE ROOM MAIN

main82111-11700iURZ100..GCC,GEN202305-202410

main82111-11701iURZ100..GCC,GEN202410

main82111-11730iGWZ100..GCC,GEN202305-202410

main82111-11731iGWZ100..GCC,GEN202410

main82111-11760iGWZ100..CHI202305-202410

main82111-11761iGWZ100..CHI202410

main82111-11780iURZ100..ARL¥164,000202305-202410

main82111-11781iURZ100..ARL¥149,000202410

main82111-11810iGWZ100..RHD..EUR¥213,000202305-202410

main82111-11811iGWZ100..ARL¥193,000202410

82112WIRE, ENGINE ROOM, NO.2

main82112-11060iGWZ100,URZ100..ARL,CHI,GCC,GEN¥3,210202305-202403

82113WIRE, ENGINE ROOM, NO.3

main82113-11010iURZ100..LHD..EUR202305-202403

main82113-50110iGWZ100..LHD..EUR202305-202403

main82113-50130iGWZ100,URZ100..RHD..EUR¥7,700202305-202403

82114WIRE, ENGINE ROOM, NO.4

main82114-11020iGWZ100,URZ100..ARL,CHI,GCC,GEN¥1,430202305-202403

82119CWIRE, ENGINE ROOM, NO.5

main82119-11040iGWZ100..ARL,CHI,GCC,GEN¥900202305-202403

8211AWIRE, ENGINE ROOM, NO.6

main8211A-11010iGWZ100,URZ100..ARL,CHI,GCC,GEN¥810202305-202403

821H2WIRE, HV AIR CONDITIONER

main821H2-50041iGWZ100..ARL,CHI,GCC,GEN¥3,750202305-202403

82666NHOLDER, CONNECTOR NO.10

main82666-50A20iGWZ100..EUR;URZ100..RHD..EUR¥1,700202305-202403

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-11670iGWZ100,URZ100..EUR¥610202305-202403

82817APROTECTOR, WIRING HARNESS, NO.2

main82817-11740iGWZ100,URZ100..EUR¥1,010202305-202403

82817DPROTECTOR, WIRING HARNESS, NO.5

main82817-50P80iGWZ100,URZ100..EUR¥400202305-202403

82817EPROTECTOR, WIRING HARNESS, NO.6

main82817-50P90iGWZ100,URZ100..EUR¥440202305-202403

82817FPROTECTOR, WIRING HARNESS, NO.7

main82817-50Q10iGWZ100,URZ100..EUR¥2,120202305-202403

82817GPROTECTOR, WIRING HARNESS, NO.8

main82817-50Q50iGWZ100..ARL,CHI,GCC,GEN¥970202305-202403

main82817-50Q60iURZ100..EUR¥2,440202305-202403

82817JPROTECTOR, WIRING HARNESS, NO.9

main82817-50Z70iGWZ100,URZ100..EUR¥530202305-202403

82817KPROTECTOR, WIRING HARNESS, NO.10

main82817-50Z80iGWZ100,URZ100..EUR¥530202305-202403

82817LPROTECTOR, WIRING HARNESS, NO.11

main82817-11770iURZ100..LHD..EUR202305-202403

main82817-50Q30iGWZ100..ARL,CHI,GCC,GEN¥970202305-202403

82817MPROTECTOR, WIRING HARNESS, NO.12

main82817-50N50iURZ100..GCC,GEN202305-202403

main82817-50Z60iGWZ100..EUR¥1,160202305-202403

82817NPROTECTOR, WIRING HARNESS, NO.13

main82817-5AA50iGWZ100..LHD..EUR202305-202403

main82817-5AA60iGWZ100..RHD..EUR¥160202305-202403

main82817-5AA70iURZ100..GCC,GEN202305-202403

82817PPROTECTOR, WIRING HARNESS, NO.14

main82817-5AD60iGWZ100,URZ100..CHI,GCC,GEN202305-202403

main82817-5AD70iGWZ100,URZ100..RHD..EUR¥630202305-202403

82817UPROTECTOR, WIRING HARNESS, NO.16

main82817-50M90iGWZ100..LHD..EUR202305-202403

main82817-50N21iGWZ100,URZ100..RHD..EUR¥4,860202305-202403

82817XPROTECTOR, WIRING HARNESS, NO.17

main82817-50Q40iGWZ100..CHI,GCC,GEN¥4,770202305-202403

main82817-5AD80iURZ100..RHD..EUR¥1,600202305-202403

82818PROTECTOR, WIRING HARNESS, NO.2

main82817-11700iGWZ100..EUR;URZ100..RHD..EUR¥330202305-202403

82818HPROTECTOR, WIRING HARNESS, NO.9

main82817-50N00iGWZ100..CHI,GCC,GEN202305-202403

main82817-50N10iGWZ100..RHD..EUR¥4,840202305-202403

82818NPROTECTOR, WIRING HARNESS, NO.14

main82817-5AE30iGWZ100,URZ100..EUR¥390202305-202403

82818ZPROTECTOR, WIRING HARNESS, NO.22

main82817-12860iGWZ100,URZ100..EUR¥80202305-202403

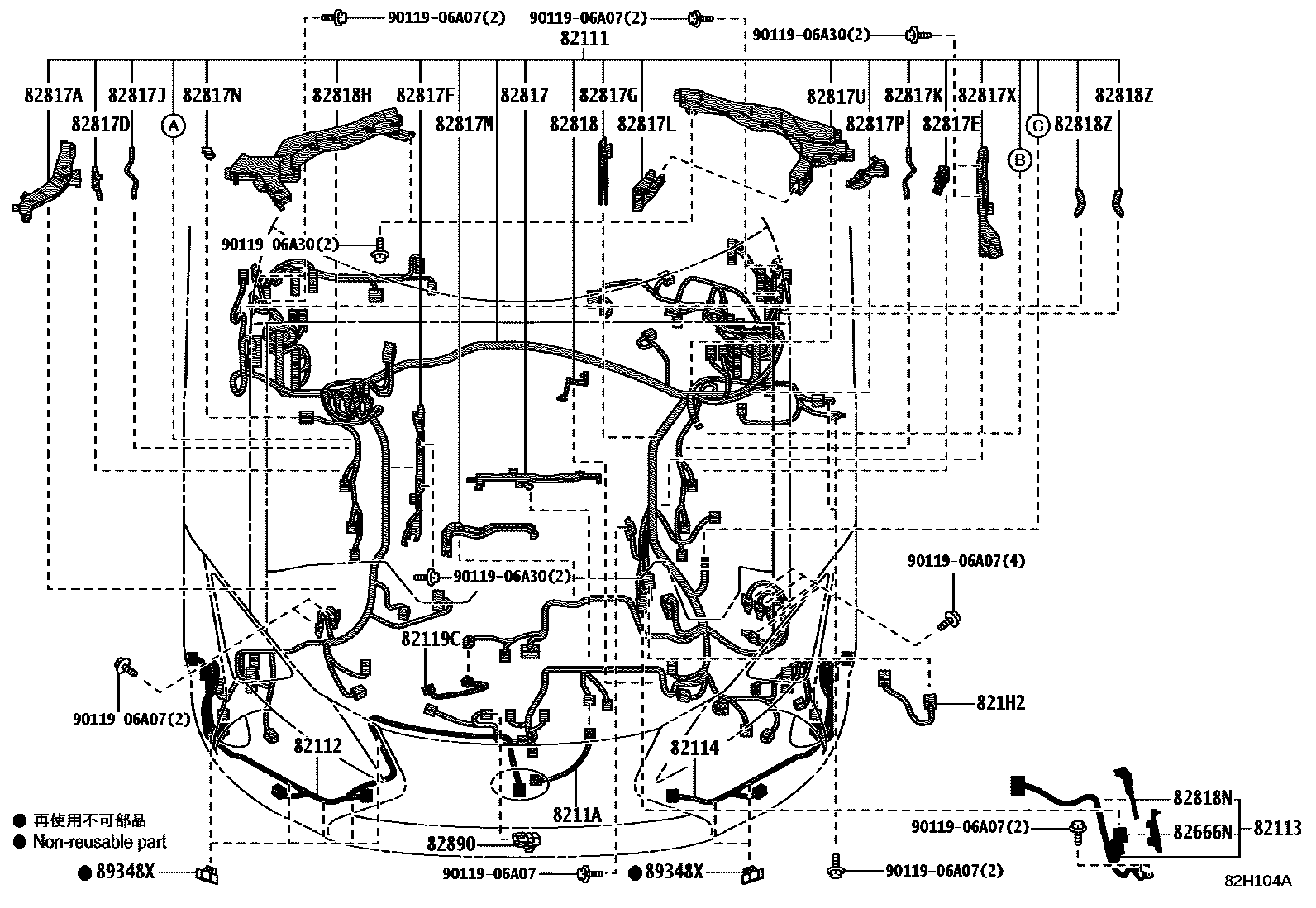

82890CONNECTOR ASSY, WIRING HARNESS

main82890-11010iGWZ100..GCC202305

ARGENTINA SPEC

main82890-11010iGWZ100..ARL202305-202508

GUATEMALA SPEC

89348XCLIP, ULTRASONIC SENSOR, FRONT

main89348-50050iGWZ100,URZ100..EUR¥260202305-202403

9011906A07

main90119-06A07¥60

9011906A30

main90119-06A30¥80

30 parts on this diagram · 27 diagrams in section
