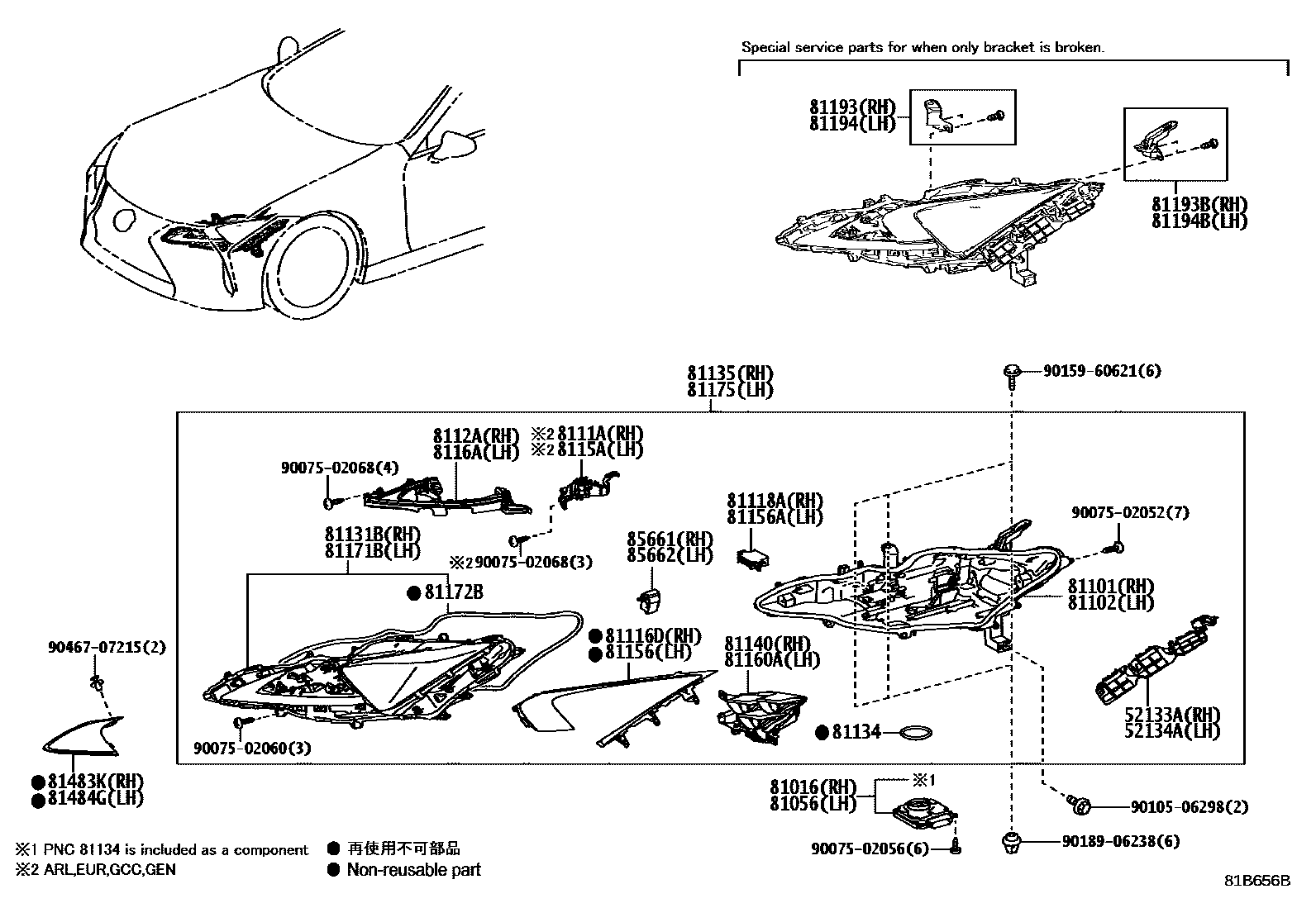

HEADLAMP
52133ABRACKET, FRONT BUMPER, RH
52134ABRACKET, FRONT BUMPER, LH
81016COMPUTER SUB-ASSY, HEADLAMP, RH NO.1
81056COMPUTER SUB-ASSY, HEADLAMP, LH NO.1
81101HOUSING SUB-ASSY, HEADLAMP, RH
81102HOUSING SUB-ASSY, HEADLAMP, LH
81116DRIM, HEAD LAMP, RH
81118ABRACKET, HEADLAMP, RH
8111AUNIT, HEADLAMP CORNERING LED, RH
8112AUNIT, HEADLAMP CLEARANCE LED, NO.1 RH
81131BHEAD LAMP LENS, RH
81134GASKET, HEADLAMP
81135UNIT ASSY, HEADLAMP, RH
81140UNIT ASSY, HEADLAMP LED, RH
81156RIM, HEADLAMP, LH
81156ABRACKET, HEADLAMP, LH
8115AUNIT, HEADLAMP CORNERING LED, LH
81160AUNIT ASSY, HEADLAMP LED, LH
8116AUNIT, HEADLAMP CLEARANCE LED, NO.1 LH
81171BHEAD LAMP LENS, LH
81172BGASKET, HEADLAMP LENS
81175UNIT ASSY, HEADLAMP, LH
81193RETAINER, HEADLAMP PROTECTOR, UPPER RH
81193BRETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2
81194RETAINER, HEADLAMP PROTECTOR, UPPER LH
81194BRETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2
81483KCOVER, DAYTIME RUNNING LAMP, RH
WHITE NOVA GF.,083
SONIC TITANIUM,1J7
SONIC IRIDIUM,1L2
SONIC CHROME,1L1
GRAPHITE BLACK GF.,223
RADIANT RED CONTRAST LAYE,3T5
SONIC COPPER,4Y5
NAPLES YELLOW,5C1
TERRANE KHAKI M.M.,6X4
HEAT BLUE CONTRAST LAYERI,8X1
81484GCOVER, DAYTIME RUNNING LAMP, LH
WHITE NOVA GF.,083
SONIC TITANIUM,1J7
SONIC IRIDIUM,1L2
SONIC CHROME,1L1
GRAPHITE BLACK GF.,223
RADIANT RED CONTRAST LAYE,3T5
SONIC COPPER,4Y5
NAPLES YELLOW,5C1
TERRANE KHAKI M.M.,6X4
HEAT BLUE CONTRAST LAYERI,8X1
85661MOTOR, HEADLAMP LEVELING, RH
85662MOTOR, HEADLAMP LEVELING, LH
9007502052
main90075-02052
9007502056
main90075-02056
9007502060
main90075-02060
9007502068
main90075-02068
9010506298
main90105-06298
9015960621
main90159-60621
9018906238
main90189-06238
9046707215
main90467-07215
38 parts on this diagram · 1 diagram in section
