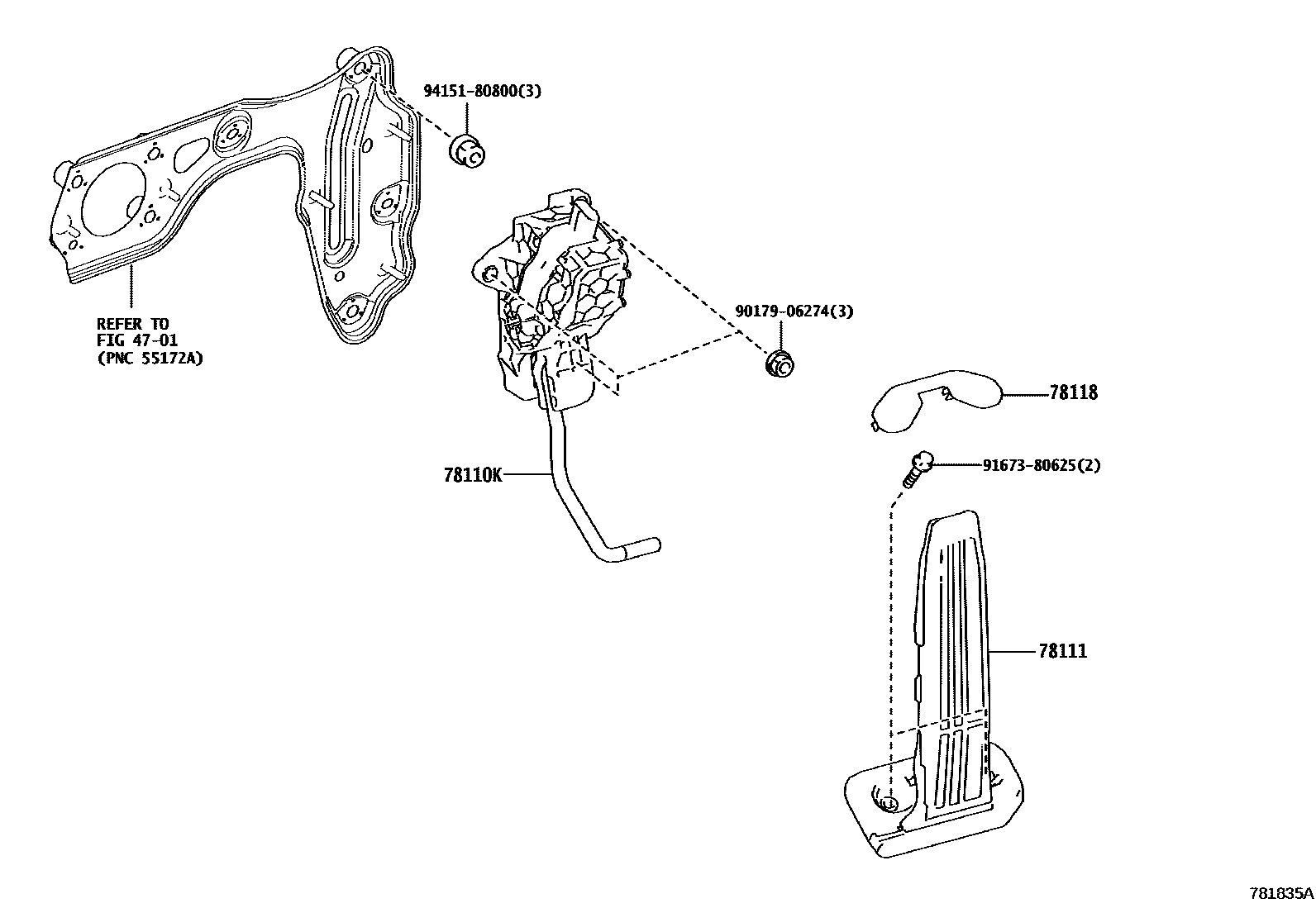

ACCELERATOR LINK

0001 1 0002 1

4701

78110KROD ASSY, ACCELERATOR PEDAL(W/SENSOR)

main78110-11031iGWZ100,URZ100..LHD..EUR202305-202403

main78110-11041iGWZ100,URZ100..RHD..EUR202305-202403

78111PEDAL, ACCELERATOR

main78101-11010iGWZ100,URZ100..ARL,CHI,GCC,GEN202305-202403

78118PAD, ACCELERATOR PEDAL

main78117-11010iGWZ100,URZ100..EUR202305-202403

9017906274

main90179-06274

9167380625

main91673-80625

9415180800

main94151-80800

7 parts on this diagram · 2 diagrams in section
