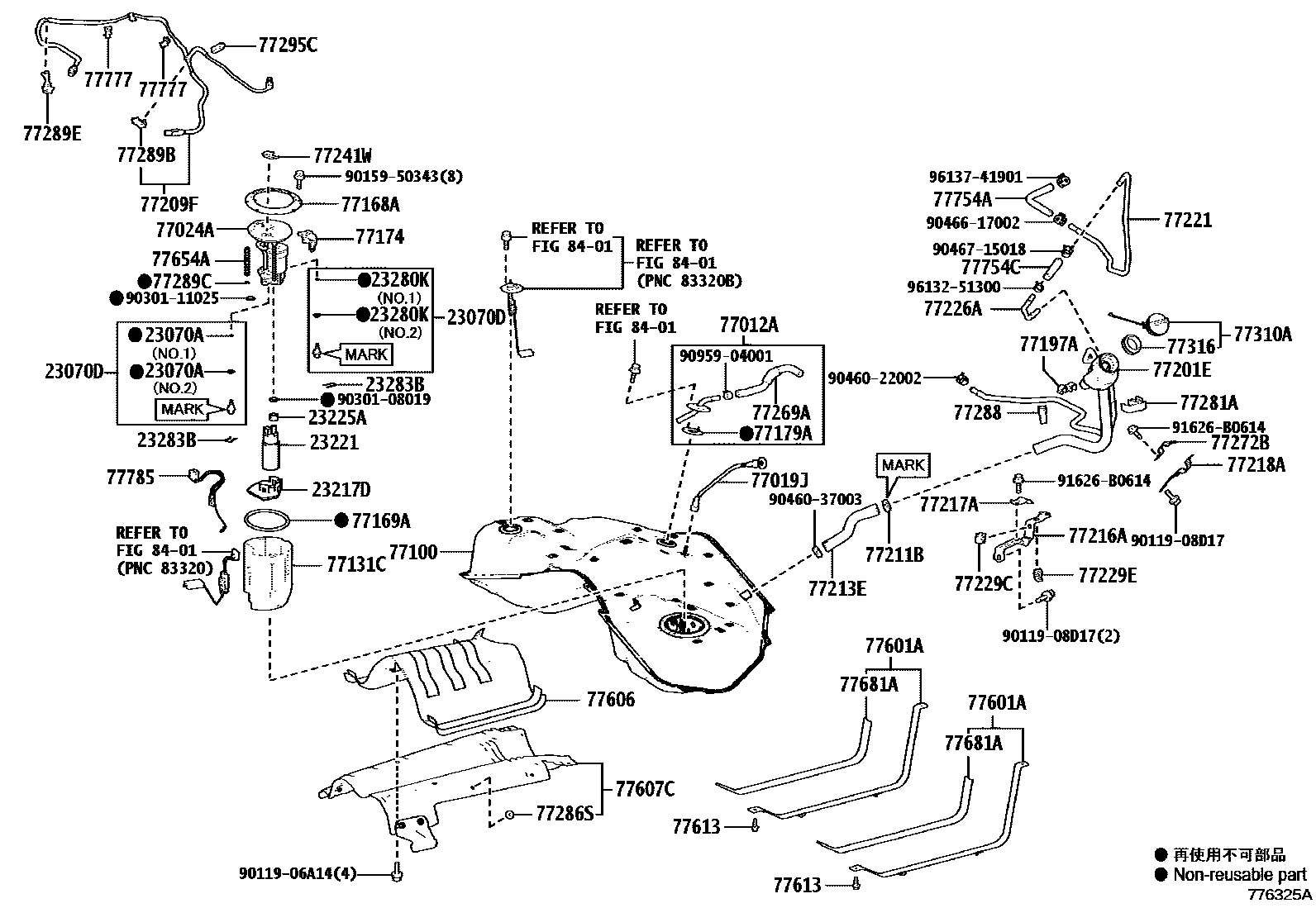

FUEL TANK & TUBE
23070ARING, O, NO.1(FOR FUEL MAIN VALVE)
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
23070DVALVE ASSY, FUEL MAIN, NO.2
MARK 23070-31030
MARK 23070-36010
23217DFILTER, FUEL PUMP
23221PUMP, FUEL
23225ASPACER, FUEL PUMP
23280KRING, O(FOR FUEL PRESSURE REGULATOR)
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
23283BHOLDER, FUEL PRESSURE REGULATOR
77012ATUBE SUB-ASSY, FUEL TANK BREATHER, NO.1
ARGENTINA SPEC
PHILIPPINE SPEC
SINGAPORE SPEC
HONG KONG SPEC
77019JTUBE SUB-ASSY, FUEL TANK TO CANISTER
HONG KONG SPEC
SINGAPORE SPEC
PHILIPPINE SPEC
ARGENTINA SPEC
77024APLATE SUB-ASSY, FUEL SUCTION
77100TANK ASSY, FUEL
77131CSUB-TANK, FUEL, NO.1
77168APLATE, FUEL TANK VENT TUBE SET
77169AGASKET, FUEL SUCTION TUBE SET
PHILIPPINE SPEC
ARGENTINA SPEC
HONG KONG SPEC
SINGAPORE SPEC
77174SUPPORT, FUEL SUCTION, NO.1
77179AGASKET, FUEL TANK BREATHER TUBE
77197ACLAMP, EVAPORATION VENT TUBE, NO.2
77201EPIPE SUB-ASSY, FUEL TANK FILLER
77209FTUBE SUB-ASSY, FUEL TANK MAIN
ARGENTINA SPEC
PHILIPPINE SPEC
ARGENTINA SPEC
SINGAPORE SPEC
HONG KONG SPEC
SINGAPORE SPEC
77211BCLAMP (FOR FUEL FILLER PIPE)
MARK=GREEN
NO MARK
77213EHOSE, FUEL TANK TO FILLER PIPE
PHILIPPINE SPEC
ARGENTINA SPEC
HONG KONG SPEC
SINGAPORE SPEC
77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1
77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2
77218ASUPPORT, FUEL TANK FILLER PIPE, NO.3
77221TUBE, FUEL TANK BREATHER, NO.1
77226ATUBE, FUEL TANK BREATHER, NO.6
77229CCLAMP, BREATHER TUBE
77229ECLAMP, BREATHER TUBE
77241WCLIP, TUBE JOINT
77269AHOSE, FUEL TANK BREATHER
PHILIPPINE SPEC
ARGENTINA SPEC
SINGAPORE SPEC
HONG KONG SPEC
77272BSUPPORT, BREATHER TUBE, NO.1
77281BRACKET, FUEL MAIN TUBE, NO.1
77281ACLAMP, FUEL FILLER PIPE
77286SCUSHION, FUEL TANK PROTECTOR
77288CLAMP, BREATHER HOSE
77289BCLAMP, FUEL TUBE, NO.3
77289CCLAMP, FUEL TUBE, NO.4
77289ECLAMP, FUEL TANK, NO.1
77295CGROMMET, FUEL TUBE
77310ACAP ASSY, FUEL TANK
PHILIPPINE SPEC
ARGENTINA SPEC
SINGAPORE SPEC
HONG KONG SPEC
77316GASKET, FUEL TANK CAP
PHILIPPINE SPEC
ARGENTINA SPEC
SINGAPORE SPEC
HONG KONG SPEC
77601ABAND SUB-ASSY, FUEL TANK, NO.1
77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1
77607CPROTECTOR SUB-ASSY, FUEL TANK, NO.2
77613BOLT, FUEL TANK BAND SET
77654ACUSHION, FUEL TANK, NO.4
77681ASEAT, FUEL TANK BAND
77754AHOSE, CHARCOAL CANISTER OUTLET, NO.2
77754CHOSE, FUEL TANK BREATHER
77777BRACKET, FUEL TUBE CLAMP
77785HARNESS, FUEL PUMP
8401
9011906A14
main90119-06A14
9011908D17
main90119-08D17
9015950343
main90159-50343
9030108019
main90301-08019
9030111025
main90301-11025
9046022002
main90460-22002
9046037003
main90460-37003
9046617002
main90466-17002
9046715018
main90467-15018
9095904001
main90959-04001
91626B0614
main91626-B0614
9613251300
main96132-51300
9613741901
main96137-41901
65 parts on this diagram · 10 diagrams in section
