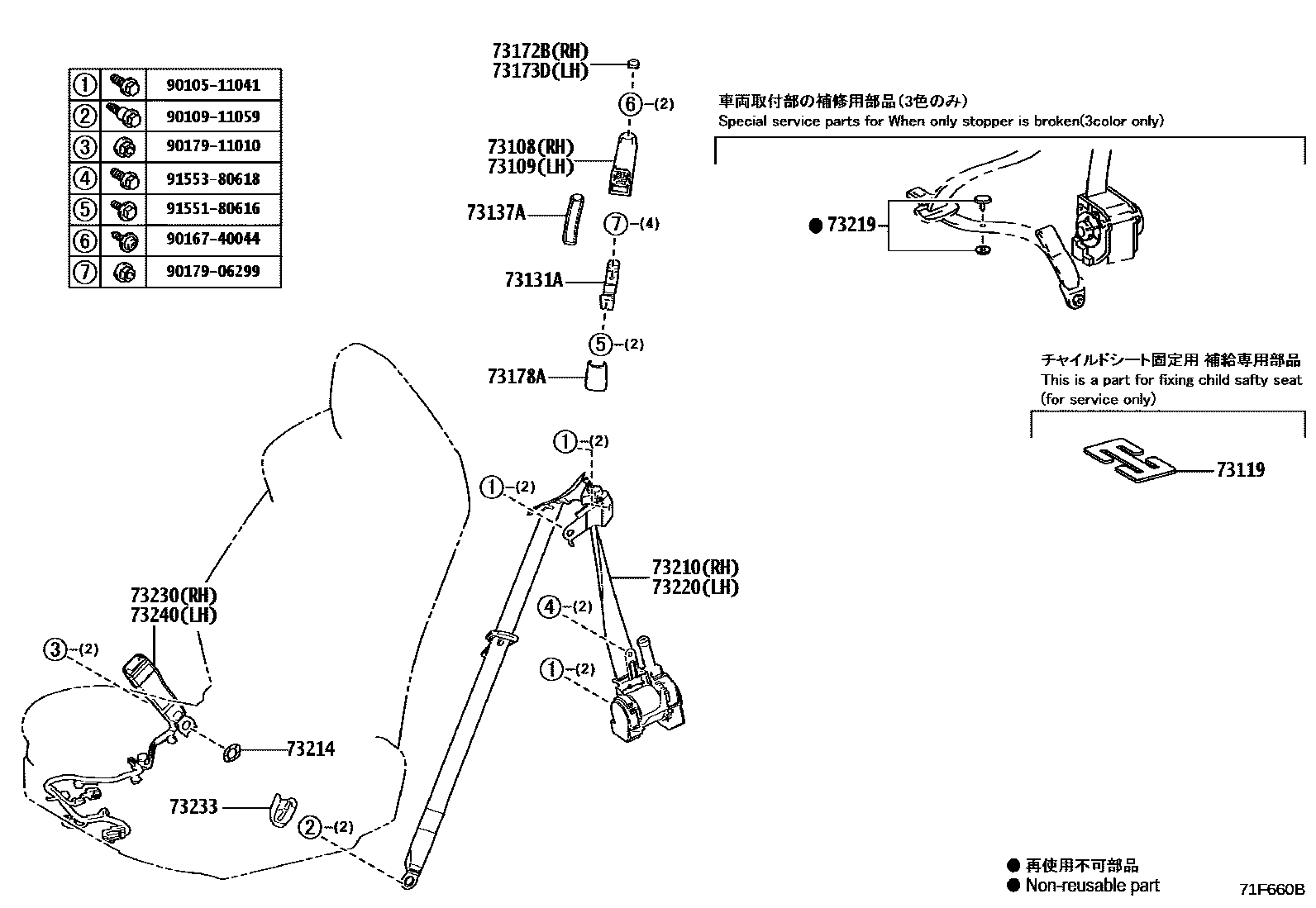

SEAT BELT & CHILD RESTRAINT SEAT

0001 1FRONT SEAT 0002 1REAR SEAT 0003 1FRONT SEAT 0004 1REAR SEAT

73108BASE SUB-ASSY, FRONT SEAT BELT ANCHOR, RH

main73108-11010iURZ100..CONV..(ARL,GCC,GEN)202305-202403

SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT)

main73108-11020iURZ100..CONV..(ARL,GCC,GEN)202305-202403

73109BASE SUB-ASSY, FRONT SEAT BELT ANCHOR, LH

main73108-11010iURZ100..CONV..(ARL,GCC,GEN)202305-202403

SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT)

main73108-11020iURZ100..CONV..EUR202305-202403

73119PLATE, SEAT BELT WEBBING CLIP

main73119-22010iGWZ100,URZ100..ARL,CHI,GCC,GEN202305-202403

73131ABRACKET, SEAT BELT

main73131-11010iURZ100..CONV..(ARL,GCC,GEN)202305-202403

73137ACOVER, SHOULDER BELT ANCHOR, UPR

main73137-11010-C0iURZ100..CONV..EUR202305-202403

BLACK,TRIM2#

main73137-11010-D2iURZ100..CONV..(ARL,GCC,GEN)202305-202403

SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT),DK.ROSE,TRIM3#

main73137-11010-E0iURZ100..CONV..EUR202305-202403

LT.OCHRE,TRIM4#

main73137-11010-J1iURZ100..CONV..EUR202305-202508

SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT),BLUE,TRIM0#

main73137-11010-J2iURZ100..CONV..(ARL,GCC,GEN)202305-202409

SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT),BLUE,TRIM8#

73172BCAP, FRONT SHOULDER BELT HANGER, RH

main73172-11020iURZ100..CONV..(ARL,GCC,GEN)202305-202403

73173DCAP, FRONT SHOULDER BELT HANGER, LH

main73172-11020iURZ100..CONV..EUR202305-202403

73178ACAP, SEAT BELT ANCHOR COVER

main73178-11010iURZ100..CONV..(ARL,GCC,GEN)202305-202403

SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT)

main73178-11020iURZ100..CONV..EUR202305-202403

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-11021-20iGWZ100,URZ100..CP..(ARL,GCC,GEN)202305-202403

BLACK,TRIM2#,3#

main73210-11021-E1iGWZ100,URZ100..CP..EUR202305-202403

OCHRE,TRIM4#

main73210-11021-J0iGWZ100,URZ100..CP..EUR202305-202508

BLUE,TRIM0#

main73210-11021-J1iURZ100..CP..EUR;GWZ100..RHD..EUR202305-202409

BLUE,TRIM8#

main73210-11031-20iGWZ100..CHI202305

BLACK,TRIM2#,3#

main73210-11031-E1iGWZ100..CHI202305

OCHER,TRIM4#

main73210-11031-J0iGWZ100..CHI202305

BLUE,TRIM0#

main73210-11031-J1iGWZ100..CHI202305-202409

BLUE,TRIM8#

main73210-11051-C1iURZ100..CONV..EUR202305-202403

BLACK/BLACK,TRIM2#,3#

main73210-11051-E2iURZ100..CONV..EUR202305-202403

BLACK/OCHRE,TRIM4#

main73210-11051-J2iURZ100..CONV..EUR202305-202508

WHITE/BLUE,TRIM0#

main73210-11051-J4iURZ100..CONV..(ARL,GCC,GEN)202305-202409

BLUE,TRIM8#

73214PLATE, FRONT SEAT BELT ANCHOR

main73214-75010iGWZ100,URZ100..EUR202305-202403

73219STOPPER, TONGUE PLATE

main73219-33010iGWZ100,URZ100..ARL,CHI,GCC,GEN202305-202403

BLACK

main73219-33020iGWZ100,URZ100..ARL,CHI,GCC,GEN202305-202403

GRAY

main73219-33030iGWZ100,URZ100..EUR202305-202403

BEIGE

main73219-50010iGWZ100,URZ100..CP..(ARL,CHI,GCC,GEN)202305-202403

MELLOW WHITE

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-11011-20iGWZ100,URZ100..CP..(ARL,GCC,GEN)202305-202403

BLACK,TRIM2#,3#

main73220-11011-E1iGWZ100,URZ100..CP..EUR202305-202403

BLACK/OCHER,TRIM4#

main73220-11011-J0iGWZ100,URZ100..CP..EUR202305-202508

BLUE,TRIM0#

main73220-11011-J1iURZ100..CP..(ARL,GCC,GEN)202305-202409

BLUE,TRIM8#

main73220-11031-20iGWZ100..CHI202305

BLACK,TRIM2#,3#

main73220-11031-E1iGWZ100..CHI202305

OCHER,TRIM4#

main73220-11031-J0iGWZ100..CHI202305

BLUE,TRIM0#

main73220-11031-J1iGWZ100..CHI202305-202409

BLUE,TRIM8#

main73220-11041-C1iURZ100..CONV..EUR202305-202403

BLACK/BLACK,TRIM2#,3#

main73220-11041-E2iURZ100..CONV..(ARL,GCC,GEN)202305-202403

BLACK/OCHRE,TRIM4#

main73220-11041-J2iURZ100..CONV..EUR202305-202508

WHITE/BLUE,TRIM0#

main73220-11041-J4iURZ100..CONV..(ARL,GCC,GEN)202305-202409

BLUE,TRIM8#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-11020-A1iURZ100..CONV..(GCC,GEN)202305-202403

WHITE,TRIM0#

main73230-11020-C1iGWZ100..LHD..EUR202305-202403

BLACK,TRIM0#,2#,3#,4#,8#

main73230-11020-C1iURZ100..LHD..CP..EUR202305-202403

BLACK,TRIM0#,2#,3#,4#

main73230-11020-C1iURZ100..LHD..CP..EUR202305-202403

BLACK,TRIM2#,3#,4#,8#

main73230-11030-A1iURZ100..CONV..ARL202305-202403

WHITE,TRIM0#

main73230-11030-C1iURZ100..CP..ARL202305-202403

BLACK,TRIM0#,2#,3#,4#,8#

main73230-11030-C1iURZ100..RHD..CONV..EUR202305-202403

BLACK,TRIM2#,3#,4#,8#

main73230-11030-C1iURZ100..CP..ARL202305

BLACK,TRIM0#,2#,3#,4#

73233COVER, LAP BELT OUTER ANCHOR

main73233-60020-A7iURZ100..CONV..EUR202305-202403

WHITE,TRIM0#

sub73233-60020

sub73233-35010

main73233-60020-C1iURZ100..CONV..(ARL,GCC,GEN)202305-202403

BLACK,TRIM0#,2#,3#,4#

sub73233-60020

sub73233-35010

main73233-60020-C1iURZ100..CONV..(ARL,GCC,GEN)202305-202403

BLACK,TRIM2#,3#,4#,8#

sub73233-60020

sub73233-35010

main73233-60020-C1iURZ100..CONV..(ARL,GCC,GEN)202305-202403

BLACK,TRIM0#,2#,3#,4#,8#

sub73233-60020

sub73233-35010

73240BELT ASSY, FRONT SEAT INNER, LH

main73240-11010-A1iURZ100..CONV..(GCC,GEN)202305-202403

WHITE,TRIM0#

main73240-11010-C1iURZ100..LHD..CP..EUR202305-202403

BLACK,TRIM0#,2#,3#,4#

main73240-11010-C1iURZ100..LHD..CP..EUR202305-202403

BLACK,TRIM2#,3#,4#,8#

main73240-11010-C1iGWZ100..LHD..EUR202305-202403

BLACK,TRIM0#,2#,3#,4#,8#

main73240-11020-A1iURZ100..CONV..ARL202305-202403

WHITE,TRIM0#

main73240-11020-C1iGWZ100..ARL202305-202403

BLACK,TRIM2#,3#,4#,8#

main73240-11020-C1iURZ100..RHD..CONV..EUR202305-202403

BLACK,TRIM0#,2#,3#,4#,8#

main73240-11020-C1iURZ100..CP..ARL202305

BLACK,TRIM0#,2#,3#,4#

9010511041

main90105-11041

9010911059

main90109-11059

9016740044

main90167-40044

9017906299

main90179-06299

9017911010

main90179-11010

9155180616

main91551-80616

9155380618

main91553-80618

22 parts on this diagram · 4 diagrams in section
