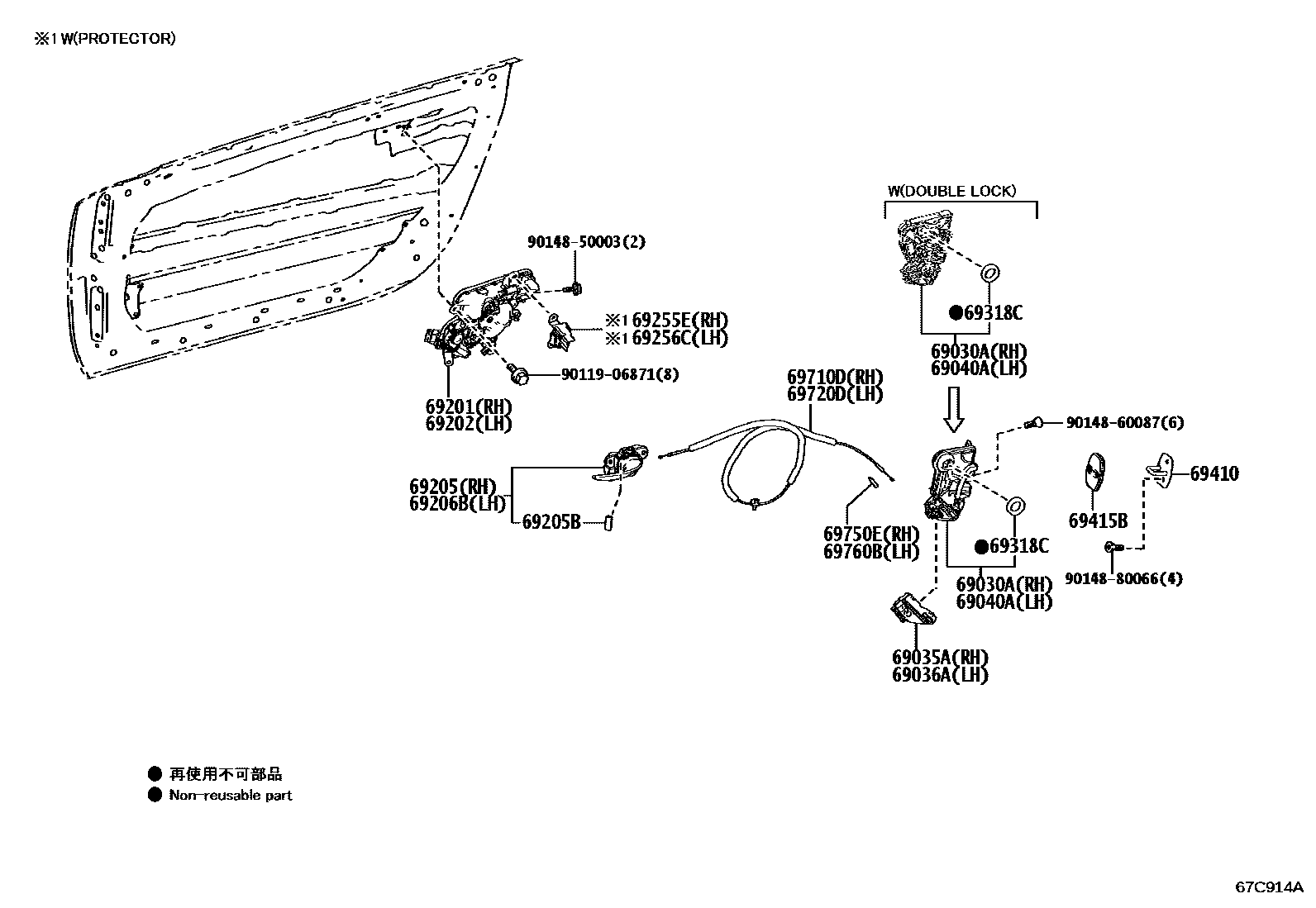

FRONT DOOR LOCK & HANDLE

69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH

main69030-11020iGWZ100,URZ100..CHI,GCC202305

PHILIPPINE SPEC

main69030-11020iURZ100..GEN202305

ARGENTINA SPEC

main69030-11030iGWZ100,URZ100..EUR202305-202403

69035ACOVER SUB-ASSY, FRONT DOOR LOCK, RH

main69035-30010iGWZ100,URZ100..EUR202305-202403

69036ACOVER SUB-ASSY, FRONT DOOR LOCK, LH

main69036-30010iGWZ100,URZ100..ARL,CHI,GCC,GEN202305-202403

69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH

main69040-11010iGWZ100..GEN;URZ100..CONV..GEN202305

ARGENTINA SPEC

main69040-11010iGWZ100,URZ100..CHI,GCC202305

PHILIPPINE SPEC

main69040-11030iGWZ100,URZ100..EUR202305-202403

69201HANDLE SUB-ASSY, DOOR OUTSIDE, RH

main69201-11012-A0iGWZ100,URZ100..EUR202305-202403

WHITE NOVA GF.,083

main69201-11012-A2iURZ100..EUR;GWZ100..RHD..EUR202309-202409

HAKUJI 2,094

main69201-11012-B2iGWZ100,URZ100..ARL,CHI,GCC,GEN202305-202409

SONIC TITANIUM,1J7

main69201-11012-B3iGWZ100,URZ100..ARL,CHI,GCC,GEN202305-202403

SONIC IRIDIUM,1L2

main69201-11012-B4iGWZ100,URZ100..EUR202305-202403

SONIC CHROME,1L1

main69201-11012-C1iGWZ100,URZ100..EUR202305-202403

GRAPHITE BLACK GF.,223

main69201-11012-D1iGWZ100,URZ100..EUR202305-202403

RADIANT RED CONTRAST LAYE,3T5

main69201-11012-E2iGWZ100,URZ100..EUR202305-202508

SONIC COPPER,4Y5

main69201-11012-F0iGWZ100,URZ100..EUR202305-202508

NAPLES YELLOW CONTRAST LA,5C1

main69201-11012-G0iGWZ100,URZ100..ARL,CHI,GCC,GEN202305-202403

TERRANE KHAKI M.M.,6X4

main69201-11012-J2iGWZ100,URZ100..EUR202305-202403

HEAT BLUE CONTRAST LAYERI,8X1

69202HANDLE SUB-ASSY, DOOR OUTSIDE, LH

main69202-11012-A0iGWZ100,URZ100..EUR202305-202403

WHITE NOVA GF.,083

main69202-11012-A2iGWZ100..CHI;URZ100..ARL,GCC,GEN202309-202409

HAKUJI 2,094

main69202-11012-B2iGWZ100,URZ100..EUR202305-202409

SONIC TITANIUM,1J7

main69202-11012-B3iGWZ100,URZ100..EUR202305-202403

SONIC IRIDIUM,1L2

main69202-11012-B4iGWZ100,URZ100..EUR202305-202403

SONIC CHROME,1L1

main69202-11012-C1iGWZ100,URZ100..ARL,CHI,GCC,GEN202305-202403

GRAPHITE BLACK GF.,223

main69202-11012-D1iGWZ100,URZ100..ARL,CHI,GCC,GEN202305-202403

RADIANT RED CONTRAST LAYE,3T5

main69202-11012-E2iGWZ100,URZ100..ARL,CHI,GCC,GEN202305-202508

SONIC COPPER,4Y5

main69202-11012-F0iGWZ100,URZ100..EUR202305-202508

NAPLES YELLOW CONTRAST LA,5C1

main69202-11012-G0iGWZ100,URZ100..EUR202305-202403

TERRANE KHAKI M.M.,6X4

main69202-11012-J2iGWZ100,URZ100..EUR202305-202403

HEAT BLUE CONTRAST LAYERI,8X1

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69270-11010iGWZ100,URZ100..EUR202305-202403

69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)

main69275-30070iGWZ100,URZ100..EUR202305-202403

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69280-11010iGWZ100,URZ100..EUR202305-202403

69255EPROTECTOR, DOOR OUTSIDE HANDLE, RH

main69255-11010iGWZ100,URZ100..EUR202305-202403

69256CPROTECTOR, DOOR OUTSIDE HANDLE, LH

main69256-11010iGWZ100,URZ100..EUR202305-202403

69318CSEAL, DOOR LOCK WIRING HARNESS

main69318-51010iGWZ100,URZ100..EUR202305-202403

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-30060iGWZ100,URZ100..EUR202305-202403

69415BCOVER, DOOR LOCK STRIKER, FRONT

main69415-60020iGWZ100,URZ100..EUR202305-202403

69710DCABLE, FRONT DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER)

main69710-11020iGWZ100,URZ100..EUR202305-202403

69720DCABLE, FRONT DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER)

main69710-11020iGWZ100,URZ100..EUR202305-202403

69750ECABLE, FRONT DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK KNOB)

main69750-11040iGWZ100,URZ100..EUR202305-202403

69760BCABLE, FRONT DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK KNOB)

main69750-11040iGWZ100,URZ100..EUR202305-202403

9011906871

main90119-06871

9014850003

main90148-50003

9014860087

main90148-60087

9014880066

main90148-80066

22 parts on this diagram · 1 diagram in section
