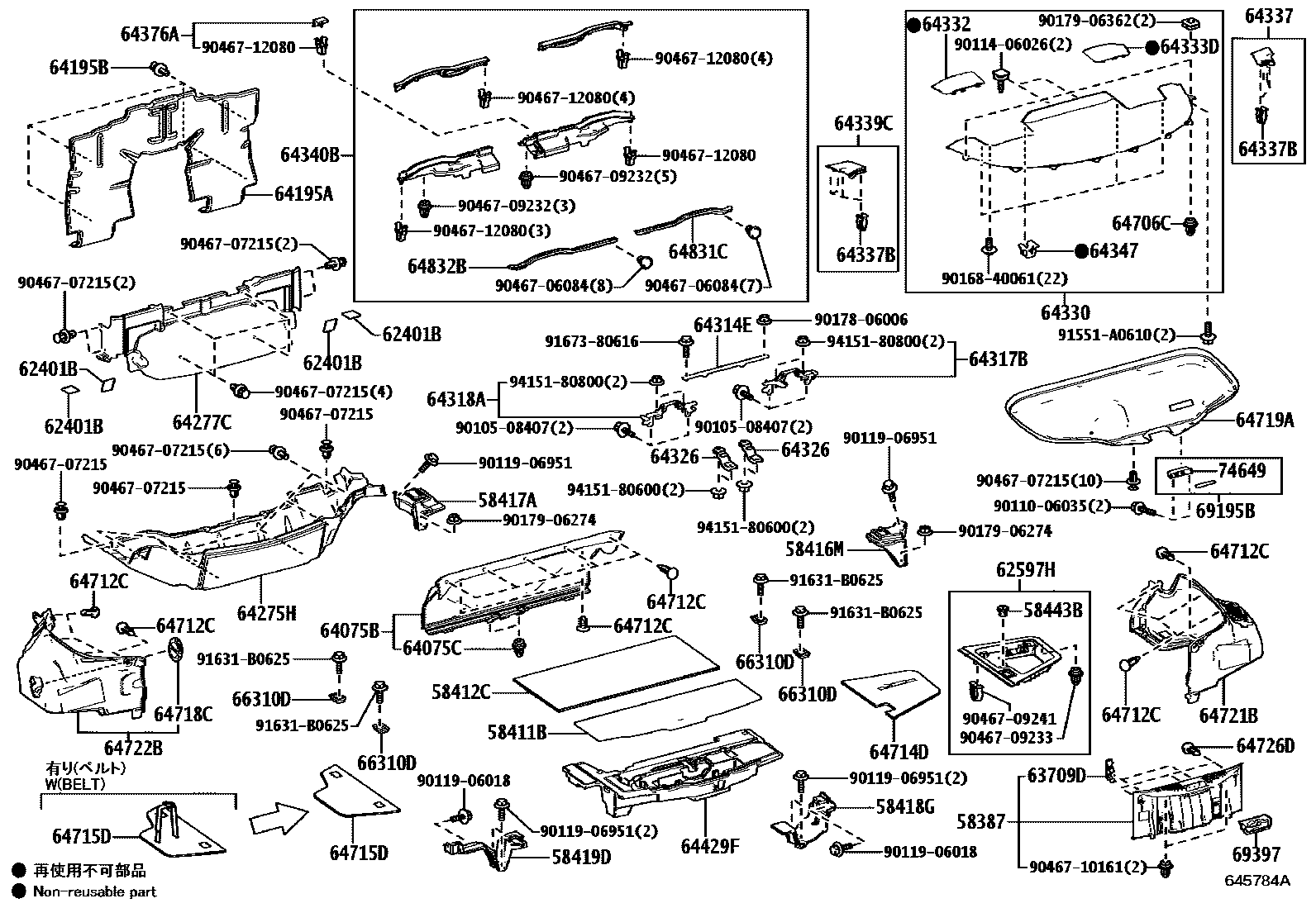

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

0001 1 0002 1

58387PLATE, REAR FLOOR FINISH

main58387-11030-C1iGWZ100..LHD..EUR202305-202403

BLACK,TRIM0#,2#,3#,4#

main58387-11030-C1iURZ100..EUR;GWZ100..RHD..EUR202305-202403

BLACK,TRIM0#,2#,3#,4#,8#

58411BBOARD, DECK, NO.1

main58411-11020-C1iGWZ100..CHI;URZ100..ARL,GCC,GEN202305-202403

BLACK,TRIM0#,2#,3#,4#,8#

main58411-11020-C1iURZ100..EUR202305-202403

BLACK,TRIM0#,2#,3#,4#

58412CBOARD, DECK, NO.2

main58412-11010-C1iGWZ100..EUR202305-202403

BLACK,TRIM0#,2#,3#,4#

main58412-11010-C1iGWZ100..EUR202305-202403

BLACK,TRIM0#,2#,3#,4#,8#

58416MBRACKET, DECK BOARD, NO.1 RH

main58416-11020iGWZ100,URZ100..EUR¥4,320202305-202403

58417ABRACKET, DECK BOARD, NO.1 LH

main58417-11030iGWZ100,URZ100..EUR¥5,200202305-202403

58418GBRACKET, DECK BOARD, NO.2

main58418-11010iGWZ100,URZ100..EUR¥4,440202305-202403

58419DBRACKET, DECK BOARD, NO.3

main58419-11010iGWZ100,URZ100..EUR¥5,700202305-202403

58443BCUSHION, DECK BOARD, NO.1

main58443-33010iGWZ100,URZ100..ARL,CHI,GCC,GEN¥80202305-202403

62401BFASTENER, HOOK

main90530-20022iURZ100..CONV..EUR¥80202305-202403

62597HBOX, SIDE TRIM

main62597-11010-C1iGWZ100..EUR202305-202403

BLACK,TRIM0#,2#,3#,4#,8#

main62597-11010-C1iURZ100..EUR202305-202403

BLACK,TRIM0#,2#,3#,4#

63709DBAND SUB-ASSY, ROOM RACK

main63709-11010-C1iGWZ100..LHD..EUR202305-202403

BLACK,TRIM0#,2#,3#,4#

main63709-11010-C1iGWZ100..LHD..EUR202305-202403

BLACK,TRIM0#,2#,3#,4#,8#

64075BCOVER, LUGGAGE COMPARTMENT TRIM, FRONT

main64075-11010-C3iURZ100..CP..(ARL,GCC,GEN)202305-202403

BLACK,TRIM0#,2#,3#,4#,8#

main64075-11020-C2iGWZ100..RHD..EUR202305-202403

BLACK,TRIM0#,2#,3#,4#

main64075-11020-C2iGWZ100..LHD..EUR202305-202403

BLACK,TRIM0#,2#,3#,4#,8#

main64075-11030-C0iURZ100..CONV..EUR202305-202403

BLACK,TRIM0#,2#,3#,4#,8#

64075CCLIP, LUGGAGE COMPARTMENT TRIM COVER

main90467-10161iURZ100..CONV..EUR¥90202305-202403

64195AINSULATOR, ROOM PARTITION PANEL

main64195-11010iGWZ100,URZ100..CP..(ARL,CHI,GCC,GEN)¥1,670202305-202403

main64195-11020iURZ100..CONV..EUR¥2,000202305-202403

64195BCLIP(FOR ROOM PARTITION PANEL INSULATOR)

main90467-07215iGWZ100,URZ100..ARL,CHI,GCC,GEN¥80202305-202403

64275HCOVER, ROOM PARTITION, NO.1

main64275-11010iURZ100..CONV..EUR¥6,300202305-202403

64277CCOVER, ROOM PARTITION, NO.2

main64277-11010iURZ100..CONV..EUR¥4,630202305-202403

64314EREINFORCEMENT, PACKAGE TRAY BRACKET

main64314-11020iURZ100..CONV..EUR¥1,060202305-202403

64317BREINFORCEMENT, PACKAGE TRAY BRACKET, NO.2 RH

main64317-11010iURZ100..CONV..EUR¥1,730202305-202403

64318AREINFORCEMENT, PACKAGE TRAY BRACKET, NO.2 LH

main64318-11010iURZ100..CONV..EUR¥1,730202305-202403

64326BRACKET, PACKAGE TRAY TRIM, CENTER

main64326-11010iURZ100..CONV..EUR¥410202305-202403

64330PANEL ASSY, PACKAGE TRAY TRIM

main64330-11010-C5iGWZ100,URZ100..CP..(ARL,CHI,GCC)202305-202403

BLACK,TRIM2#,3#

main64330-11010-E4iGWZ100,URZ100..CP..EUR202305-202403

OCHRE,TRIM4#

main64330-11010-J3iGWZ100,URZ100..CP..EUR202305-202403

BLUE,TRIM0#

main64330-11010-J3iGWZ100,URZ100..CP..(ARL,CHI,GCC)202305

BLUE&WHITE PACKAGE&ROOF HEADLINING-BELLEZA,BLUE,TRIM0#

main64330-11020-C3iGWZ100..ARL,CHI,GCC202305

ROOF HEADLINING-ALCANTARA,BLACK,TRIM0#,2#,3#

main64330-11020-C3iURZ100..CP..GEN202305

BLACK,TRIM0#,2#,3#

main64330-11020-C3iURZ100..CP..GEN202305

BLACK,TRIM2#,3#

main64330-11020-C3iURZ100..CP..GEN202305

ROOF HEADLINING-ALCANTARA,BLACK,TRIM2#,3#

main64330-11020-E1iGWZ100,URZ100..CP..(ARL,CHI,GCC)202305

OCHRE,TRIM4#

main64330-11020-E1iGWZ100,URZ100..CP..(ARL,CHI,GCC)202305

ROOF HEADLINING-ALCANTARA,OCHRE,TRIM4#

main64330-11020-J1iGWZ100..CHI;URZ100..CP..(ARL,GCC)202309-202409

BLUE,TRIM8#

main64330-11020-J1iURZ100..CP..GEN202309-202409

ROOF HEADLINING-ALCANTARA,BLUE,TRIM8#

main64330-11030-A2iURZ100..CONV..ARL202305

BRUNEI SPEC,WHITE,TRIM0#

main64330-11030-A2iURZ100..CONV..ARL202305

INDONESIA SPEC,WHITE,TRIM0#

main64330-11030-A2iURZ100..CONV..ARL202305

SINGAPORE SPEC,WHITE,TRIM0#

main64330-11030-A2iURZ100..CONV..ARL202305

MALAYSIA SPEC,WHITE,TRIM0#

main64330-11030-A2iURZ100..CONV..ARL202305-202403

WHITE,TRIM0#

main64330-11030-C1iURZ100..CONV..(GCC,GEN)202305

INDONESIA SPEC,BLACK,TRIM2#,3#

main64330-11030-C1iURZ100..CONV..EUR202305-202403

BLACK,TRIM2#,3#

main64330-11030-C1iURZ100..CONV..ARL202305

MALAYSIA SPEC,BLACK,TRIM2#,3#

main64330-11030-C1iURZ100..CONV..ARL202305

SINGAPORE SPEC,BLACK,TRIM2#,3#

main64330-11030-C1iURZ100..CONV..ARL202305

BRUNEI SPEC,BLACK,TRIM2#,3#

main64330-11030-E2iURZ100..CONV..ARL202305

MALAYSIA SPEC,OCHER,TRIM4#

main64330-11030-E2iURZ100..CONV..EUR202305-202403

OCHER,TRIM4#

main64330-11030-E2iURZ100..CONV..(GCC,GEN)202305

BRUNEI SPEC,OCHER,TRIM4#

main64330-11030-E2iURZ100..CONV..(GCC,GEN)202305

INDONESIA SPEC,OCHER,TRIM4#

main64330-11030-E2iURZ100..CONV..(GCC,GEN)202305

SINGAPORE SPEC,OCHER,TRIM4#

main64330-11030-J0iURZ100..CONV..(GCC,GEN)202309-202409

BLUE,TRIM8#

main64330-11030-J0iURZ100..CONV..(GCC,GEN)202309-202409

INDONESIA SPEC,BLUE,TRIM8#

main64330-11030-J0iURZ100..CONV..(GCC,GEN)202309-202409

SINGAPORE SPEC,BLUE,TRIM8#

main64330-11030-J0iURZ100..CONV..(GCC,GEN)202309-202409

MALAYSIA SPEC,BLUE,TRIM8#

main64330-11030-J0iURZ100..CONV..ARL202309-202409

BRUNEI SPEC,BLUE,TRIM8#

main64330-11040-A3iURZ100..CONV..ARL202305

WHITE,TRIM0#

main64330-11040-C2iURZ100..CONV..ARL202305

BLACK,TRIM2#,3#

main64330-11040-E3iURZ100..CONV..ARL202305

OCHER,TRIM4#

main64330-11040-J0iURZ100..CONV..ARL202309-202409

BLUE,TRIM8#

64332COVER, PACKAGE TRAY TRIM

main64332-11010-C1iURZ100..CP..(ARL,GCC)202305

ROOF HEADLINING-ALCANTARA,BLACK,TRIM0#,2#,3#

main64332-11010-C1iGWZ100,URZ100..CP..EUR202305-202403

BLACK,TRIM2#,3#

main64332-11010-C1iURZ100..CP..GEN202305

BLACK,TRIM0#,2#,3#

main64332-11010-C1iURZ100..CP..GEN202305

BLACK,TRIM03,2#,3#

main64332-11010-E0iGWZ100,URZ100..CP..(ARL,CHI,GCC,GEN)202305-202403

OCHRE,TRIM4#

main64332-11010-J0iGWZ100,URZ100..CP..GEN202305

BLUE,TRIM00

main64332-11010-J0iGWZ100..ARL,CHI,GCC202305

BLUE&WHITE PACKAGE&ROOF HEADLINING-BELLEZA,BLUE,TRIM0#

main64332-11010-J0iGWZ100..ARL,CHI,GCC202305-202403

BLUE,TRIM0#

main64332-11010-J0iGWZ100..CHI;URZ100..CP..(ARL,GCC)202309-202409

ROOF HEADLINING-ALCANTARA,BLUE,TRIM8#

main64332-11010-J0iGWZ100..CHI;URZ100..CP..(ARL,GCC)202309-202409

BLUE,TRIM8#

main64332-11020-A2iURZ100..CONV..ARL202305

MALAYSIA SPEC,WHITE,TRIM0#

main64332-11020-A2iURZ100..CONV..ARL202305

BRUNEI SPEC,WHITE,TRIM0#

main64332-11020-A2iURZ100..CONV..ARL202305

INDONESIA SPEC,WHITE,TRIM0#

main64332-11020-A2iURZ100..CONV..ARL202305

SINGAPORE SPEC,WHITE,TRIM0#

main64332-11020-A2iURZ100..CONV..ARL202305-202403

WHITE,TRIM0#

main64332-11020-C1iURZ100..CONV..ARL202305

MALAYSIA SPEC,BLACK,TRIM2#,3#

main64332-11020-C1iURZ100..CONV..ARL202305-202403

BLACK,TRIM2#,3#

main64332-11020-C1iURZ100..CONV..ARL202305

BRUNEI SPEC,BLACK,TRIM2#,3#

main64332-11020-C1iURZ100..CONV..ARL202305

INDONESIA SPEC,BLACK,TRIM2#,3#

main64332-11020-C1iURZ100..CONV..ARL202305

SINGAPORE SPEC,BLACK,TRIM2#,3#

main64332-11020-E2iURZ100..CONV..ARL202305

INDONESIA SPEC,OCHER,TRIM4#

main64332-11020-E2iURZ100..CONV..ARL202305

BRUNEI SPEC,OCHER,TRIM4#

main64332-11020-E2iURZ100..CONV..ARL202305-202403

OCHER,TRIM4#

main64332-11020-E2iURZ100..CONV..ARL202305

MALAYSIA SPEC,OCHER,TRIM4#

main64332-11020-E2iURZ100..CONV..ARL202305

SINGAPORE SPEC,OCHER,TRIM4#

main64332-11020-J0iURZ100..CONV..(GCC,GEN)202309-202409

SINGAPORE SPEC,BLUE,TRIM8#

main64332-11020-J0iURZ100..CONV..EUR202309-202409

BLUE,TRIM8#

main64332-11020-J0iURZ100..CONV..(GCC,GEN)202309-202409

BRUNEI SPEC,BLUE,TRIM8#

main64332-11020-J0iURZ100..CONV..(GCC,GEN)202309-202409

INDONESIA SPEC,BLUE,TRIM8#

main64332-11020-J0iURZ100..CONV..(GCC,GEN)202309-202409

MALAYSIA SPEC,BLUE,TRIM8#

64333DCOVER, PACKAGE TRAY TRIM SIDE, RH

main64333-11010-A2iURZ100..CONV..(GCC,GEN)202305

BRUNEI SPEC,WHITE,TRIM0#

main64333-11010-A2iURZ100..CONV..(GCC,GEN)202305-202403

WHITE,TRIM0#

main64333-11010-A2iURZ100..CONV..ARL202305

SINGAPORE SPEC,WHITE,TRIM0#

main64333-11010-A2iURZ100..CONV..ARL202305

INDONESIA SPEC,WHITE,TRIM0#

main64333-11010-A2iURZ100..CONV..ARL202305

MALAYSIA SPEC,WHITE,TRIM0#

main64333-11010-C1iURZ100..CONV..ARL202305

SINGAPORE SPEC,BLACK,TRIM2#,3#

main64333-11010-C1iURZ100..CONV..EUR202305-202403

BLACK,TRIM2#,3#

main64333-11010-C1iURZ100..CONV..(GCC,GEN)202305

BRUNEI SPEC,BLACK,TRIM2#,3#

main64333-11010-C1iURZ100..CONV..(GCC,GEN)202305

INDONESIA SPEC,BLACK,TRIM2#,3#

main64333-11010-C1iURZ100..CONV..(GCC,GEN)202305

MALAYSIA SPEC,BLACK,TRIM2#,3#

main64333-11010-E2iURZ100..CONV..(GCC,GEN)202305

BRUNEI SPEC,OCHER,TRIM4#

main64333-11010-E2iURZ100..CONV..(GCC,GEN)202305-202403

OCHER,TRIM4#

main64333-11010-E2iURZ100..CONV..ARL202305

INDONESIA SPEC,OCHER,TRIM4#

main64333-11010-E2iURZ100..CONV..ARL202305

SINGAPORE SPEC,OCHER,TRIM4#

main64333-11010-E2iURZ100..CONV..ARL202305

MALAYSIA SPEC,OCHER,TRIM4#

main64333-11010-J0iURZ100..CONV..ARL202309-202409

SINGAPORE SPEC,BLUE,TRIM8#

main64333-11010-J0iURZ100..CONV..(GCC,GEN)202309-202409

MALAYSIA SPEC,BLUE,TRIM8#

main64333-11010-J0iURZ100..CONV..ARL202309-202409

BLUE,TRIM8#

main64333-11010-J0iURZ100..CONV..ARL202309-202409

BRUNEI SPEC,BLUE,TRIM8#

main64333-11010-J0iURZ100..CONV..ARL202309-202409

INDONESIA SPEC,BLUE,TRIM8#

64337GARNISH, PACKAGE TRAY TRIM, RH

main64337-11010-A2iURZ100..CONV..(ARL,GCC,GEN)202305-202403

WHITE,TRIM0#

main64337-11010-C1iURZ100..CONV..EUR202305-202403

BLACK,TRIM2#,3#

main64337-11010-E2iURZ100..CONV..(ARL,GCC,GEN)202305-202403

OCHER,TRIM4#

main64337-11010-J0iURZ100..CONV..(ARL,GCC,GEN)202309-202409

BLUE,TRIM8#

64337BCLIP(FOR PACKAGE TRAY TRIM GARNISH)

main90467-08227iURZ100..CONV..EUR¥80202305-202403

64339CGARNISH, PACKAGE TRAY TRIM, NO.2

main64339-11010-A2iURZ100..CONV..EUR202305-202403

WHITE,TRIM0#

main64339-11010-C1iURZ100..CONV..(ARL,GCC,GEN)202305-202403

BLACK,TRIM2#,3#

main64339-11010-E2iURZ100..CONV..EUR202305-202403

OCHER,TRIM4#

main64339-11010-J0iURZ100..CONV..(ARL,GCC,GEN)202309-202409

BLUE,TRIM8#

64340BPANEL ASSY, PACKAGE TRAY TRIM, NO.2

main64340-11010-A2iURZ100..CONV..EUR202305-202403

WHITE,TRIM0#

main64340-11010-C1iURZ100..CONV..EUR202305-202403

BLACK,TRIM2#,3#

main64340-11010-E2iURZ100..CONV..(ARL,GCC,GEN)202305-202403

OCHER,TRIM4#

main64340-11010-J0iURZ100..CONV..(ARL,GCC,GEN)202309-202409

BLUE,TRIM8#

64347RETAINER, PACKAGE TRAY TRIM EDGE SIDE

main64372-11010iURZ100..CONV..EUR¥80202305-202403

64376ASPACER, PACKAGE TRAY TRIM, NO.2

main64375-11010-A1iURZ100..CONV..EUR202305-202403

WHITE,TRIM0#

main64375-11010-C0iURZ100..CONV202305-202308

BLACK,TRIM2#,3#

main64375-11010-C1iURZ100..CONV..(ARL,GCC,GEN)202308-202403

BLACK,TRIM2#,3#

main64375-11010-E1iURZ100..CONV..(ARL,GCC,GEN)202305-202403

OCHER,TRIM4#

main64375-11010-J0iURZ100..CONV..EUR202309-202409

BLUE,TRIM8#

64429FBOX, LUGGAGE COMPARTMENT TRIM

main64429-11011iGWZ100,URZ100..ARL,GCC,GEN¥3,900202305-202403

main64429-11031iGWZ100..CHI202305

64706CCLIP

main90467-09206iURZ100..CONV..(ARL,GCC,GEN)¥80202305-202403

64712CCLIP(FOR LUGGAGE COMPARTMENT TRIM COVER)

main90467-08186-C3iURZ100..CONV..(ARL,GCC,GEN)202305-202403

BLACK,TRIM0#,2#,3#,4#,8#

sub90467-08186¥120

64714DCOVER, LUGGAGE COMPARTMENT TRIM, SIDE, RH

main64714-11020-C3iGWZ100..CHI;URZ100..ARL,GCC,GEN202305-202403

BLACK,TRIM0#,2#,3#,4#,8#

main64714-11020-C3iGWZ100..EUR202305-202403

BLACK,TRIM0#,2#,3#,4#

64715DCOVER, LUGGAGE COMPARTMENT TRIM, SIDE, LH

main64715-11010-C0iGWZ100..CHI;URZ100..ARL,GCC,GEN202305

BLACK,TRIM0#,2#,3#,4#,8#

main64715-11010-C0iGWZ100..CHI;URZ100..ARL,GCC,GEN202305

BLACK,TRIM0#,2#,3#,4#

main64715-11020-C0iURZ100..EUR202305-202403

BLACK,TRIM0#,2#,3#,4#

main64715-11020-C0iGWZ100..EUR202305-202403

BLACK,TRIM0#,2#,3#,4#,8#

64718CCOVER, LUGGAGE TRIM SERVICE HOLE

main64718-50120-C0iURZ100..CONV..EUR202305-202403

BLACK,TRIM0#,2#,3#,4#,8#

64719ACOVER, LUGGAGE COMPARTMENT DOOR

main64719-11010-C0iGWZ100..LHD..EUR202305-202403

BLACK,TRIM0#,2#,3#,4#,8#

main64719-11010-C0iURZ100..CP..EUR;GWZ100..RHD..EUR202305-202403

BLACK,TRIM0#,2#,3#,4#

main64719-11020-C0iURZ100..CONV..EUR202305-202403

BLACK,TRIM0#,2#,3#,4#,8#

64721COVER, LUGGAGE COMPARTMENT TRIM, INNER RH

main64721-11010-C0iGWZ100..LHD..EUR202305-202403

BLACK,TRIM0#,2#,3#,4#

main64721-11010-C0iGWZ100..LHD..EUR202305-202403

BLACK,TRIM0#,2#,3#,4#,8#

64721BCOVER, LUGGAGE COMPARTMENT TRIM, NO.1

main64721-11020-C0iURZ100..CONV..EUR202305-202403

BLACK,TRIM0#,2#,3#,4#,8#

64722COVER, LUGGAGE COMPARTMENT TRIM, INNER LH

main64722-11010-C0iGWZ100..LHD..EUR202305-202403

BLACK,TRIM0#,2#,3#,4#

main64722-11010-C0iGWZ100..LHD..EUR202305-202403

BLACK,TRIM0#,2#,3#,4#,8#

64722BCOVER, LUGGAGE COMPARTMENT TRIM, NO.2

main64722-11020-C0iURZ100..CONV..EUR202305-202403

BLACK,TRIM0#,2#,3#,4#,8#

64726DCLIP, LUGGAGE TRIM, REAR

main90467-08186-C3iGWZ100..CHI;URZ100..ARL,GCC,GEN202305-202403

BLACK,TRIM0#,2#,3#,4#

sub90467-08186¥120

main90467-08186-C3iGWZ100..LHD..EUR202305-202403

BLACK,TRIM0#,2#,3#,4#,8#

sub90467-08186¥120

64831CWEATHERSTRIP, BACK WINDOW GLASS, RH

main64831-11010-B0iURZ100..CONV..EUR202305-202403

GRAY,TRIM0#

main64831-11010-C0iURZ100..CONV..(ARL,GCC,GEN)202305-202403

BLACK,TRIM2#,3#,4#,8#

64832BWEATHERSTRIP, BACK WINDOW GLASS, LH

main64832-11010-B0iURZ100..CONV..(ARL,GCC,GEN)202305-202403

GRAY,TRIM0#

main64832-11010-C0iURZ100..CONV..(ARL,GCC,GEN)202305-202403

BLACK,TRIM2#,3#,4#,8#

66310DHOOK ASSY, ROPE

main66310-30011-C1iURZ100..EUR202305-202403

BLACK,TRIM0#,2#,3#,4#,8#

sub66310-30011¥1,750

main66310-30011-C1iGWZ100..ARL,GCC,GEN202305-202403

BLACK,TRIM0#,2#,3#,4#

sub66310-30011¥1,750

69195BGRIP ASSY, LUGGAGE COMPARTMENT DOOR ASSIST

main69195-11010-C0iURZ100..CONV..EUR202305-202403

BLACK,TRIM0#,2#,3#,4#,8#

69397PROTECTOR, BACK DOOR LOCK

main69358-11010-C1iGWZ100..LHD..EUR202305-202403

BLACK,TRIM0#,2#,3#,4#

main69358-11010-C1iGWZ100..LHD..EUR202305-202403

BLACK,TRIM0#,2#,3#,4#,8#

74649GRIP, LUGGAGE COMPARTMENT DOOR ASSIST

main69195-11020-C0iGWZ100..LHD..EUR202305-202403

BLACK,TRIM0#,2#,3#,4#

main69195-11020-C0iGWZ100..LHD..EUR202305-202403

BLACK,TRIM0#,2#,3#,4#,8#

main74649-51010-C3iURZ100..CONV..EUR202305-202403

BLACK,TRIM0#,2#,3#,4#,8#

sub74649-51010¥1,410

9010508407

main90105-08407¥80

9011006035

main90110-06035¥80

9011406026

main90114-06026¥60

9011906018

main90119-06018¥170

9011906951

main90119-06951¥80

9016840061

main90168-40061¥70

9017806006

main90178-06006¥80

9017906274

main90179-06274¥70

9017906362

main90179-06362¥60

9046706084

main90467-06084¥80

9046707215

main90467-07215¥80

9046709232

main90467-09232¥70

9046709233

main90467-09233¥80

9046709241

main90467-09241¥80

9046710161

main90467-10161¥90

9046712080

main90467-12080¥60

91551A0610

main91551-A0610¥60

91631B0625

main91631-B0625¥60

9167380616

main91673-80616¥60

9415180600

main94151-80600¥60

9415180800

main94151-80800¥80

69 parts on this diagram · 2 diagrams in section
