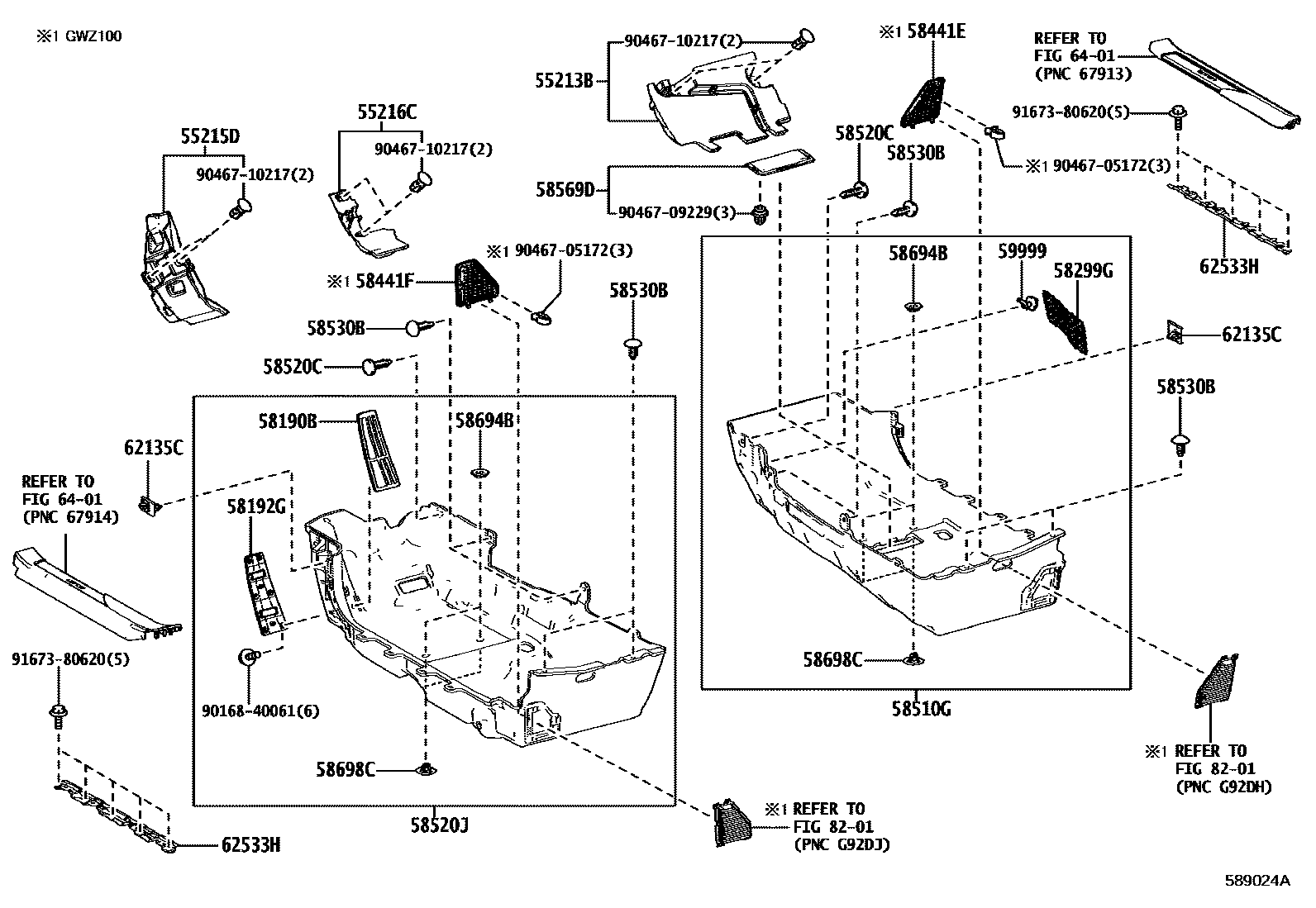

MAT & CARPET

0001 1 0002 1 0003 1

55213BPAD, DASH PANEL INSULATOR, NO.1

main55213-11010iGWZ100,URZ100..LHD..EUR202305-202403

main55213-11020iGWZ100,URZ100..RHD..EUR202305-202403

55215DPAD, DASH PANEL INSULATOR, NO.3

main55215-11010iGWZ100,URZ100..CHI,GCC,GEN202305-202403

main55215-11020iGWZ100,URZ100..RHD..EUR202305-202403

55216CPAD, DASH PANEL INSULATOR, NO.4

main55216-11010iGWZ100,URZ100..LHD..EUR202305-202403

58190BREST ASSY, FRONT FLOOR FOOT

main58190-11010iGWZ100,URZ100..LHD..EUR202305-202403

main58190-11020iGWZ100,URZ100..ARL202305-202403

58192GPANEL, FOOTREST, NO.2

main58192-11010iGWZ100,URZ100..CHI,GCC,GEN202305-202403

main58192-11020iGWZ100,URZ100..ARL202305-202403

58299GNET, BAGGAGE HOLDER

main58299-11010-A0iURZ100..CONV..ARL202305-202403

WHITE,TRIM0#

main58299-11010-A0iGWZ100,URZ100..ARL,CHI,GCC,GEN202305

INDONESIA SPEC,WHITE,TRIM0#

main58299-11010-C1iGWZ100,URZ100..ARL,CHI,GCC,GEN202305

INDONESIA SPEC,BLACK,TRIM2#,3#

main58299-11010-C1iURZ100..CONV..ARL202305-202403

BLACK,TRIM2#,3#

main58299-11010-E2iGWZ100,URZ100..ARL,CHI,GCC,GEN202305

INDONESIA SPEC,OCHRE,TRIM4#

main58299-11010-E2iURZ100..CONV..ARL202305-202403

OCHRE,TRIM4#

main58299-11010-J1iURZ100..EUR;GWZ100..RHD..EUR202309-202409

BLUE,TRIM8#

58441ECOVER, BATTERY SERVICE HOLE

main58441-11010-A0iGWZ100..ARL,CHI,GCC,GEN202305-202403

WHITE,TRIM0#

main58441-11010-C1iGWZ100..EUR202305-202403

BLACK,TRIM2#,3#

main58441-11010-E0iGWZ100..EUR202305-202403

OCHRE,TRIM4#

main58441-11010-J0iGWZ100..RHD..EUR202309-202409

BLUE,TRIM8#

58441FCOVER, BATTERY SERVICE HOLE

main58441-11020-A0iGWZ100..ARL,CHI,GCC,GEN202305-202403

WHITE,TRIM0#

main58441-11020-C1iGWZ100..EUR202305-202403

BLACK,TRIM2#,3#

main58441-11020-E0iGWZ100..EUR202305-202403

OCHRE,TRIM4#

main58441-11020-J0iGWZ100..RHD..EUR202309-202409

BLUE,TRIM8#

58510GCARPET ASSY, FLOOR, FRONT RH

main58510-11080-A2iURZ100..LHD..EUR202305-202403

WHITE,TRIM0#

main58510-11080-C0iURZ100..LHD..EUR202305-202403

BLACK,TRIM2#,3#

main58510-11080-E1iURZ100..GCC,GEN202305-202403

OCHER,TRIM4#

main58510-11080-J0iURZ100..GCC,GEN202309-202409

BLUE,TRIM8#

main58510-11090-A0iURZ100..RHD..EUR202305-202403

WHITE,TRIM0#

main58510-11090-C0iURZ100..ARL202305-202403

BLACK,TRIM2#,3#

main58510-11090-E0iURZ100..ARL202305-202403

OCHRE,TRIM4#

main58510-11090-J0iURZ100..RHD..EUR202309-202409

BLUE,TRIM8#

main58510-11110-A0iGWZ100..CHI,GCC,GEN202305-202403

WHITE,TRIM0#

main58510-11110-C0iGWZ100..LHD..EUR202305-202403

BLACK,TRIM2#,3#

main58510-11110-E0iGWZ100..CHI,GCC,GEN202305-202403

OCHER,TRIM4#

main58510-11110-J0iGWZ100..CHI202309-202409

BLUE,TRIM8#

main58510-11130-A0iGWZ100..ARL202305-202403

WHITE,TRIM0#

main58510-11130-C0iGWZ100..ARL202305-202403

BLACK,TRIM2#,3#

main58510-11130-E0iGWZ100..RHD..EUR202305-202403

OCHRE,TRIM4#

main58510-11130-J0iGWZ100..RHD..EUR202309-202403

BLUE,TRIM8#

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-07049-08iGWZ100,URZ100..ARL,CHI,GCC,GEN202305-202403

WHITE,TRIM0#

sub90467-07049

main90467-07049-23iGWZ100,URZ100..EUR202305-202403

BLACK,TRIM2#,3#

sub90467-07049

main90467-07049-J4iGWZ100..CHI;URZ100..ARL,GCC,GEN202309-202409

BLUE,TRIM8#

sub90467-07049

main90467-07049-L4iGWZ100,URZ100..ARL,CHI,GCC,GEN202305-202403

OCHRE,TRIM4#

sub90467-07049

58520JCARPET ASSY, FLOOR, FRONT LH

main58520-11060-A0iURZ100..LHD..EUR202305-202403

WHITE,TRIM0#

main58520-11060-C0iURZ100..GCC,GEN202305-202403

BLACK,TRIM2#,3#

main58520-11060-E0iURZ100..GCC,GEN202305-202403

OCHRE,TRIM4#

main58520-11060-J0iURZ100..GCC,GEN202309-202409

BLUE,TRIM8#

main58520-11070-A2iURZ100..ARL202305-202403

WHITE,TRIM0#

main58520-11070-C0iURZ100..ARL202305-202403

BLACK,TRIM2#,3#

main58520-11070-E1iURZ100..RHD..EUR202305-202403

OCHER,TRIM4#

main58520-11070-J0iURZ100..ARL202309-202409

BLUE,TRIM8#

main58520-11090-A0iGWZ100..CHI,GCC,GEN202305-202403

WHITE,TRIM0#

main58520-11090-C0iGWZ100..CHI,GCC,GEN202305-202403

BLACK,TRIM2#,3#

main58520-11090-E0iGWZ100..CHI,GCC,GEN202305-202403

OCHRE,TRIM4#

main58520-11090-J0iGWZ100..CHI202309-202409

BLUE,TRIM8#

main58520-11110-A0iGWZ100..ARL202305-202403

WHITE,TRIM0#

main58520-11110-C0iGWZ100..RHD..EUR202305-202403

BLACK,TRIM2#,3#

main58520-11110-E0iGWZ100..RHD..EUR202305-202403

OCHER,TRIM4#

main58520-11110-J0iGWZ100..RHD..EUR202309-202403

BLUE,TRIM8#

58530BCLIP(FOR FRONT FLOOR CARPET)

main63399-26050-B0iGWZ100,URZ100..EUR202305-202403

LT.GRAY

58569DCOVER, FRONT FLOOR CAUTION PLATE

main58569-11010-A3iGWZ100,URZ100..EUR202305-202403

WHITE,TRIM0#

main58569-11010-C2iGWZ100,URZ100..EUR202305-202403

BLACK,TRIM2#,3#

main58569-11010-E2iGWZ100,URZ100..ARL,CHI,GCC,GEN202305-202403

OCHRE,TRIM4#

main58569-11010-J1iGWZ100..CHI;URZ100..ARL,GCC,GEN202309-202409

BLUE,TRIM8#

58694BPLATE, MAT SET, UPPER

main58694-78010iGWZ100,URZ100..EUR202305-202403

58698CPLATE, MAT SET, LOWER

main58698-78010iGWZ100,URZ100..ARL,CHI,GCC,GEN202305-202403

59999CLAMP(FOR FLOOR MAT)

main59999-24010-A4iGWZ100,URZ100..ARL,CHI,GCC,GEN202305-202403

WHITE,TRIM0#

sub59999-24010

main59999-24010-A4iGWZ100,URZ100..ARL,CHI,GCC,GEN202305

INDONESIA SPEC,WHITE,TRIM0#

sub59999-24010

main59999-24010-C4iGWZ100,URZ100..ARL,CHI,GCC,GEN202305

INDONESIA SPEC,BLACK,TRIM2#,3#

sub59999-24010

main59999-24010-C4iGWZ100,URZ100..EUR202305-202403

BLACK,TRIM2#,3#

sub59999-24010

main59999-24010-E3iGWZ100,URZ100..EUR202305-202403

OCHRE,TRIM4#

sub59999-24010

main59999-24010-E3iGWZ100,URZ100..ARL,CHI,GCC,GEN202305

INDONESIA SPEC,OCHRE,TRIM4#

sub59999-24010

main59999-24010-J1iURZ100..EUR;GWZ100..RHD..EUR202309-202409

BLUE,TRIM8#

sub59999-24010

62135CRETAINER, COWL SIDE CARPET

main62135-30020iGWZ100,URZ100..ARL,CHI,GCC,GEN202305-202403

62533HBRACKET, SIDE TRIM, NO.1

main62533-11010iGWZ100,URZ100..EUR202305-202403

6401

8201

9016840061

main90168-40061

9046705172

main90467-05172

9046709229

main90467-09229

9046710217

main90467-10217

9167380620

main91673-80620

25 parts on this diagram · 3 diagrams in section
