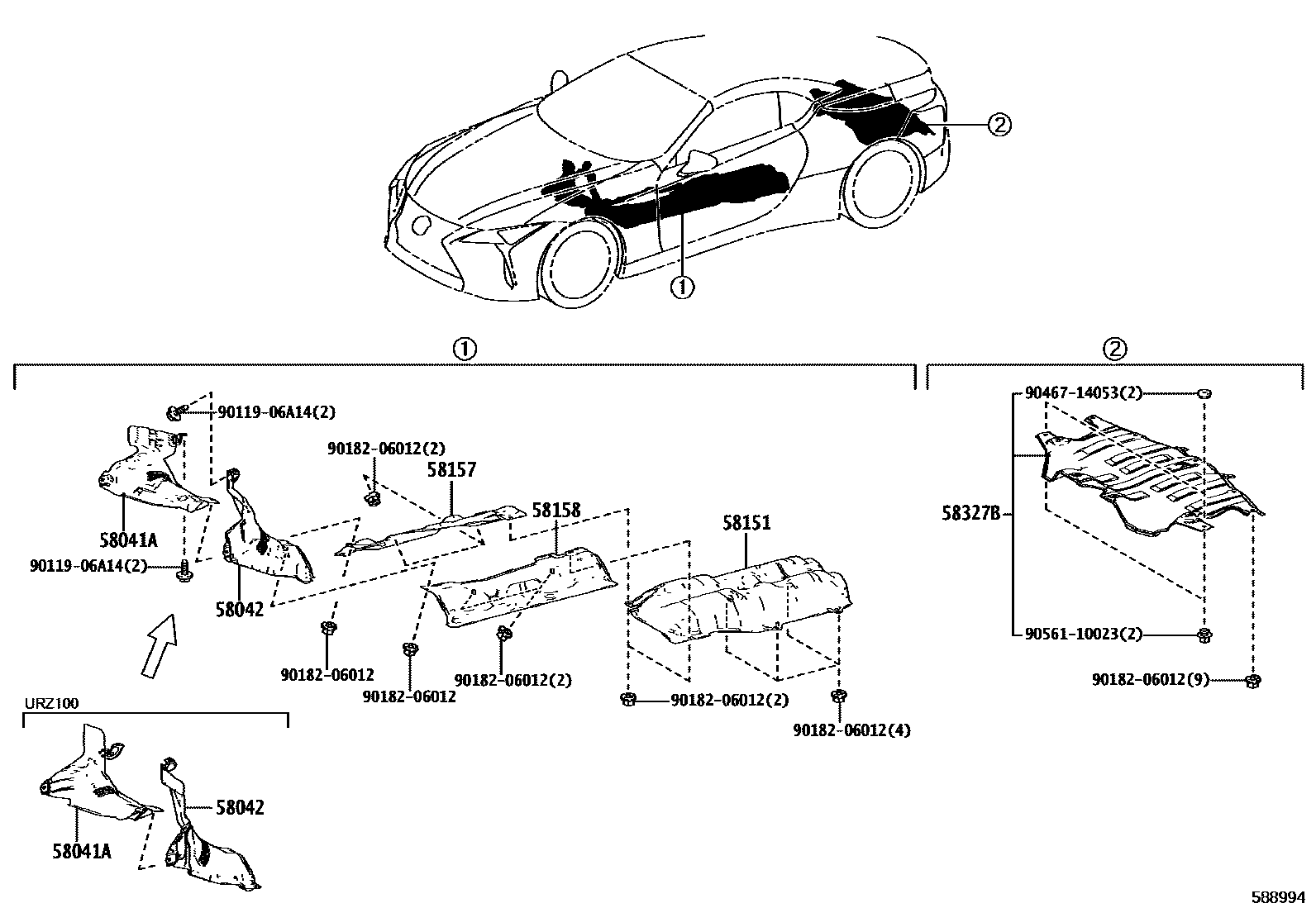

FLOOR INSULATOR

58041AINSULATOR SUB-ASSY, FRONT FLOOR HEAT, NO.1

main58041-11011iGWZ100..EUR202305-202403

main58041-11021iURZ100..EUR202305-202403

58042INSULATOR SUB-ASSY, FRONT FLOOR HEAT, NO.2

main58042-11010iGWZ100..EUR202305-202403

main58042-11021iURZ100..ARL,GCC,GEN202305-202403

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-11011iGWZ100,URZ100..ARL,CHI,GCC,GEN202305-202403

58157INSULATOR, FRONT FLOOR HEAT, NO.5

main58157-11010iGWZ100,URZ100..EUR202305-202403

58158INSULATOR, FRONT FLOOR HEAT, NO.6

main58158-11010iGWZ100,URZ100..EUR202305-202403

58327BINSULATOR, MAIN MUFFLER HEAT

main58327-11010iGWZ100,URZ100..CP..EUR202305-202403

main58327-11020iURZ100..CONV..(ARL,GCC,GEN)202305-202403

9011906A14

main90119-06A14

9018206012

main90182-06012

9046714053

main90467-14053

9056110023

main90561-10023

10 parts on this diagram · 1 diagram in section
