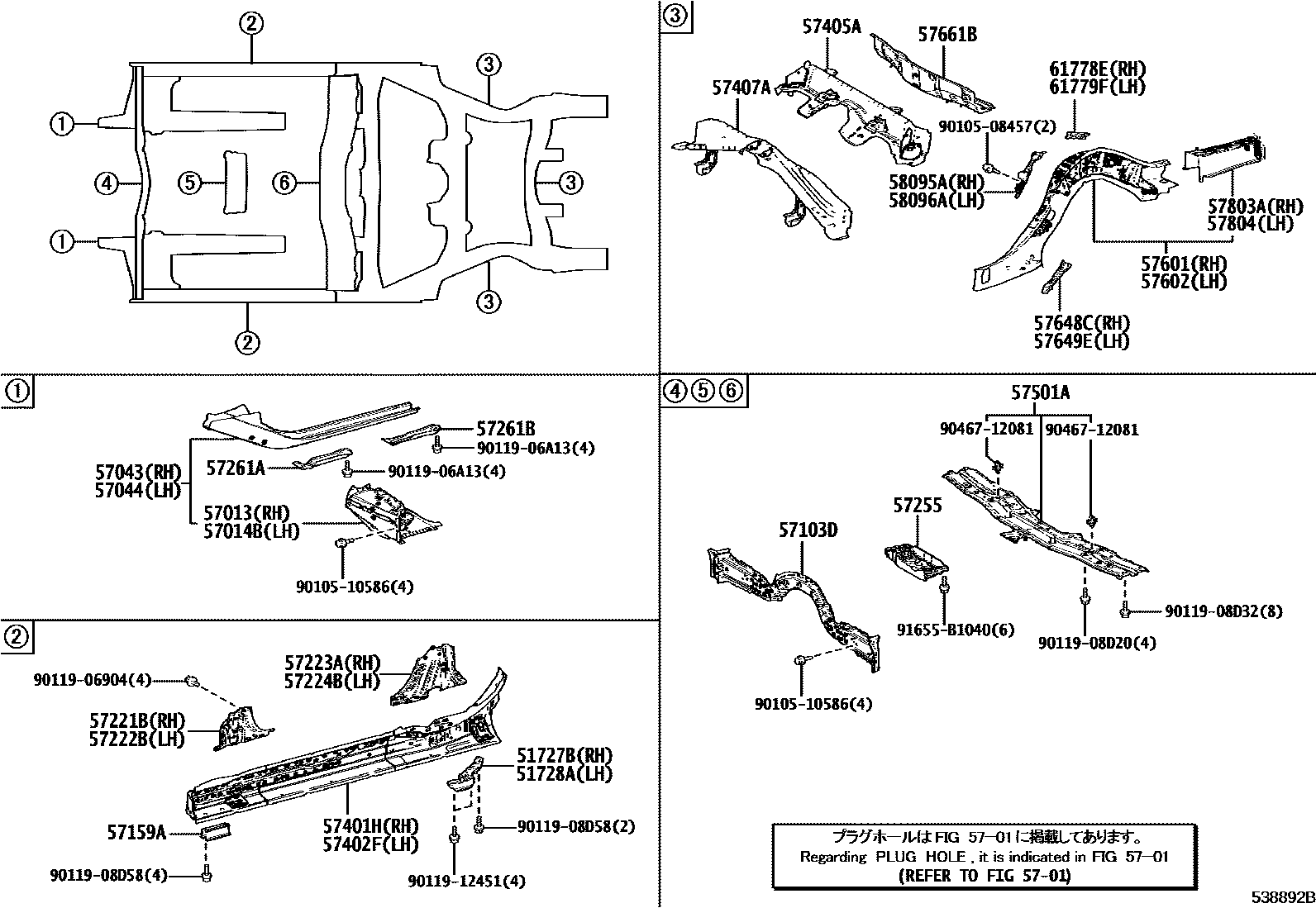

FLOOR SIDE MEMBER

0001 1 0002 1 0003 1BRACE

51727BREINFORCEMENT, BODY SUPPORT BRACKET, REAR RH

main51727-11010iURZ100..CONV..EUR¥8,500202305-202403

IE 24MY

main51727-11010iURZ100..CONV..(ARL,GCC,GEN)¥8,500202305

51728AREINFORCEMENT, BODY SUPPORT BRACKET, REAR LH

main51728-11010iURZ100..CONV..(ARL,GCC,GEN)¥8,500202305

main51728-11010iURZ100..CONV..EUR¥8,500202305-202403

IE 24MY

5701

57013BRACKET SUB-ASSY, FRONT SIDE MEMBER, RH

main57013-11010iGWZ100,URZ100..EUR¥7,500202305-202403

57014BBRACKET SUB-ASSY, FRONT SIDE MEMBER, LH

main57014-11010iGWZ100,URZ100..EUR¥7,500202305-202403

57043REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH

main57043-11010iGWZ100,URZ100..CP..EUR¥14,200202305-202409

main57043-11020iURZ100..CP..EUR¥14,200202305-202403

IE 24MY

main57043-11020iURZ100..CONV..(ARL,GCC,GEN)¥14,200202305

57044REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH

main57044-11010iGWZ100,URZ100..CP..EUR¥14,200202305-202409

main57044-11020iURZ100..CP..EUR¥14,200202305-202403

IE 24MY

main57044-11020iURZ100..CONV..(ARL,GCC,GEN)¥14,200202305

57103DCROSSMEMBER SUB-ASSY, FRONT SIDE MEMBER TO DASH PANEL

main57103-11010iGWZ100,URZ100..EUR¥16,400202305-202403

57159AREINFORCEMENT, ENGINE UNDER COVER MOUNTING

main57159-11011iURZ100..CONV..EUR¥2,700202305-202409

IE 24MY

main57159-11011iURZ100..CONV..(ARL,GCC,GEN)¥2,700202305

57221BREINFORCEMENT, BODY MOUNTING, NO.1 RH

main57221-11010iURZ100..CONV..EUR¥3,040202305-202403

57222BREINFORCEMENT, BODY MOUNTING, NO.1 LH

main57222-11010iURZ100..CONV..EUR¥3,050202305-202403

57223AREINFORCEMENT, BODY MOUNTING, NO.2 RH

main57223-11010iURZ100..CONV..EUR¥4,110202305-202403

57224BREINFORCEMENT, BODY MOUNTING, NO.2 LH

main57224-11010iURZ100..CONV..EUR¥4,110202305-202403

57255MEMBER, ENGINE REAR MOUNTING

main57255-11010iGWZ100,URZ100..EUR¥17,000202305-202403

57261APLATE, ENGINE REAR MOUNTING MEMBER

main57261-11010iGWZ100,URZ100..EUR¥1,440202305-202403

57261BPLATE, ENGINE REAR MOUNTING MEMBER

main57261-11020iGWZ100,URZ100..CP..(ARL,CHI,GCC,GEN)¥1,480202305-202403

main57261-11030iURZ100..CONV..(ARL,GCC,GEN)¥1,380202305-202403

57401HMEMBER SUB-ASSY, FLOOR SIDE, INNER RH

main57401-11010iURZ100..CP..(ARL,GCC,GEN)¥41,200202305-202409

main57401-11020iURZ100..CONV..(ARL,GCC,GEN)¥43,000202305-202403

main57401-11030iURZ100..CP..(ARL,GCC,GEN)¥43,000202409

57402FMEMBER SUB-ASSY, FLOOR SIDE, INNER LH

main57402-11010iGWZ100,URZ100..CP..EUR¥41,200202305-202409

main57402-11020iURZ100..CONV..(ARL,GCC,GEN)¥43,000202305-202403

main57402-11030iURZ100..CP..(ARL,GCC,GEN)¥43,000202409

57405AMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.2

main57405-11011iGWZ100,URZ100..CP..(ARL,CHI,GCC,GEN)¥19,700202305-202403

main57405-11020iURZ100..CONV..(ARL,GCC,GEN)¥24,500202305-202403

57407AMEMBER SUB-ASSY, CENTER FLOOR CROSS

main57407-11010iGWZ100,URZ100..ARL,CHI,GCC,GEN¥8,100202305-202403

57501ABRACE SUB-ASSY, FRONT FLOOR, CENTER

main57501-11010iURZ100..CP..(ARL,GCC,GEN)¥11,400202305-202409

main57501-11020iURZ100..CONV..(ARL,GCC,GEN)¥12,400202305

main57501-11020iURZ100..CONV..EUR¥12,400202305-202403

IE 24MY

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-11070iGWZ100..ARL,CHI,GCC,GEN¥41,200202305-202403

main57601-11080iURZ100..EUR¥41,200202305-202403

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-11060iURZ100..ARL,GCC,GEN¥41,200202305-202403

main57602-11070iGWZ100..EUR¥41,200202305-202403

57648CREINFORCE, REAR FLOOR SIDE MEMBER, REAR UPPER RH

main57648-11020iURZ100..CONV..EUR¥1,180202305-202403

57649EREINFORCE, REAR FLOOR SIDE MEMBER, REAR UPPER LH

main57649-11010iURZ100..CONV..(ARL,GCC,GEN)¥1,180202305-202403

57661BMEMBER, REAR FLOOR CROSS, FRONT

main57068-11010iURZ100..CONV..EUR¥8,100202305-202403

57803AREINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, REAR RH

main57803-11010iGWZ100,URZ100..EUR¥5,900202305-202403

57804REINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, REAR LH

main57804-11010iGWZ100,URZ100..EUR¥5,900202305-202403

58095ARETAINER SUB-ASSY, REAR SEAT, NO.3 REAR RH

main58095-11010iURZ100..CONV..EUR¥1,150202305-202403

58096ARETAINER SUB-ASSY, REAR SEAT, NO.3 REAR LH

main58096-11010iURZ100..CONV..EUR¥1,150202305-202403

61778EBRACKET, BELT ANCHOR TO QUARTER REINFORCE, RH

main61778-11020iURZ100..CONV..EUR¥1,070202305-202403

61779FBRACKET, BELT ANCHOR TO QUARTER REINFORCE, LH

main61779-11020iURZ100..CONV..EUR¥1,070202305-202403

9010508457

main90105-08457¥80

9010510586

main90105-10586¥100

9011906904

main90119-06904¥80

9011906A13

main90119-06A13¥60

9011908D20

main90119-08D20¥80

9011908D32

main90119-08D32¥100

9011908D58

main90119-08D58¥80

9011912451

main90119-12451¥190

9046712081

main90467-12081¥80

91655B1040

main91655-B1040¥130

42 parts on this diagram · 3 diagrams in section
