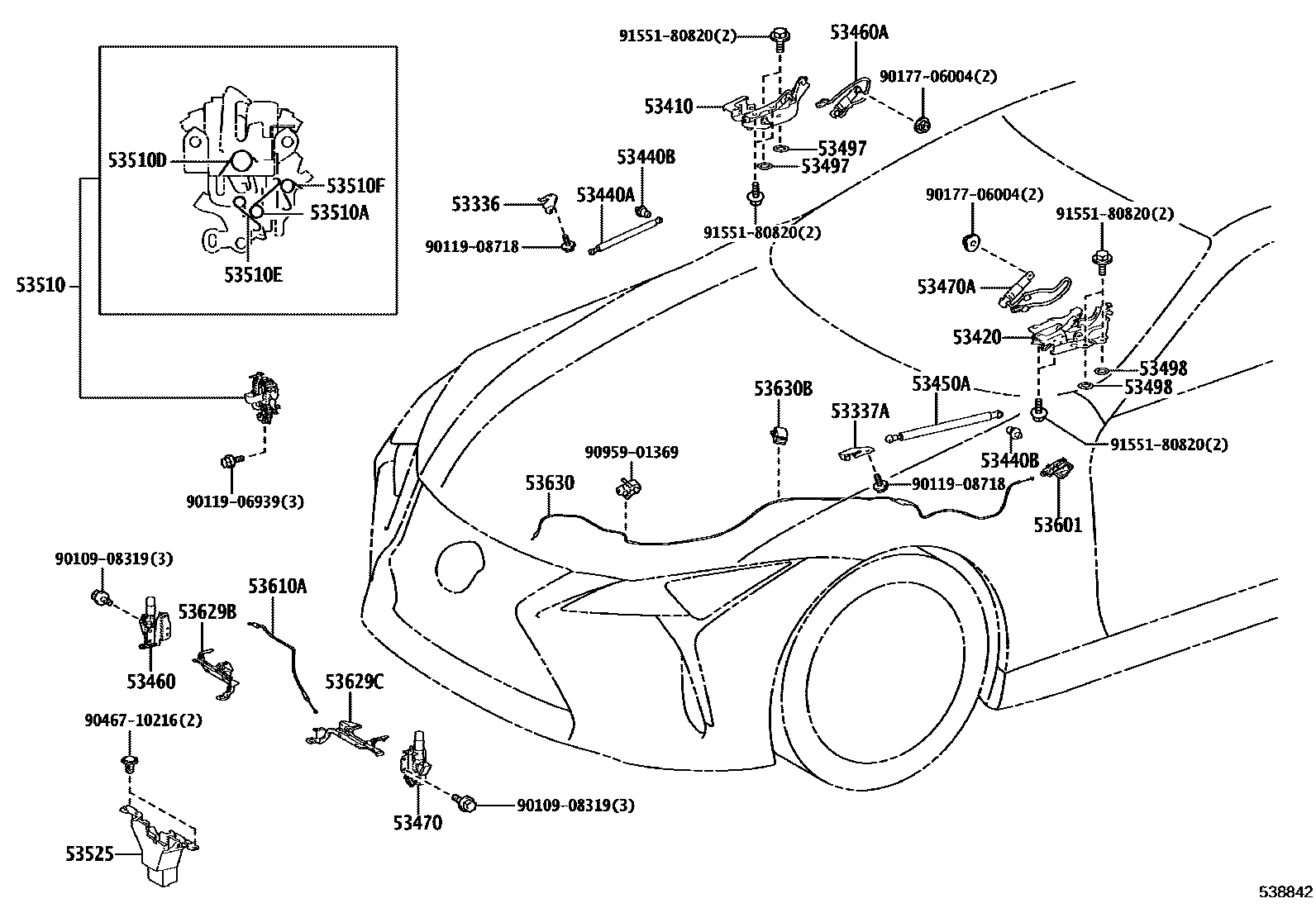

HOOD LOCK & HINGE
53336BRACKET, HOOD STAY, RH
53337ABRACKET, HOOD STAY, LH
53410HINGE ASSY, HOOD, RH
53420HINGE ASSY, HOOD, LH
53440ASUPPORT ASSY, HOOD, RH
53440BBOLT, HOOD SUPPORT, NO.1
53450ASUPPORT ASSY, HOOD, LH
53460LIFTER ASSY, POP UP HOOD, RH
53460ALIFTER ASSY, POP UP HOOD, NO.2 RH
53470LIFTER ASSY, POP UP HOOD, LH
53470ALIFTER ASSY, POP UP HOOD, NO.2 LH
53497PAD, HOOD HINGE, NO.1
T=1.0
53498PAD, HOOD HINGE, NO.2
T=1.0
53510LOCK ASSY, HOOD
53510ASPRING, TENSION(FOR HOOD LOCK)
WD=0.9
53510DSPRING, TENSION(FOR HOOD LOCK)
WD=1.4
53510ESPRING, TENSION(FOR HOOD LOCK)
WD=1.4
53510FSPRING, TENSION(FOR HOOD LOCK)
WD=1.4
53525PROTECTOR, HOOD LOCK RELEASE LEVER
53601LEVER SUB-ASSY, HOOD LOCK CONTROL
53610ACONTROL ASSY, HOOD LOCK
53629BCOVER, HOOD LOCK CONTROL CABLE, RH
53629CCOVER, HOOD LOCK CONTROL CABLE, LH
53630CABLE ASSY, HOOD LOCK CONTROL
53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)
9010908319
main90109-08319
9011906939
main90119-06939
9011908718
main90119-08718
9017706004
main90177-06004
9046710216
main90467-10216
9095901369
main90959-01369
9155180820
main91551-80820
32 parts on this diagram · 2 diagrams in section
