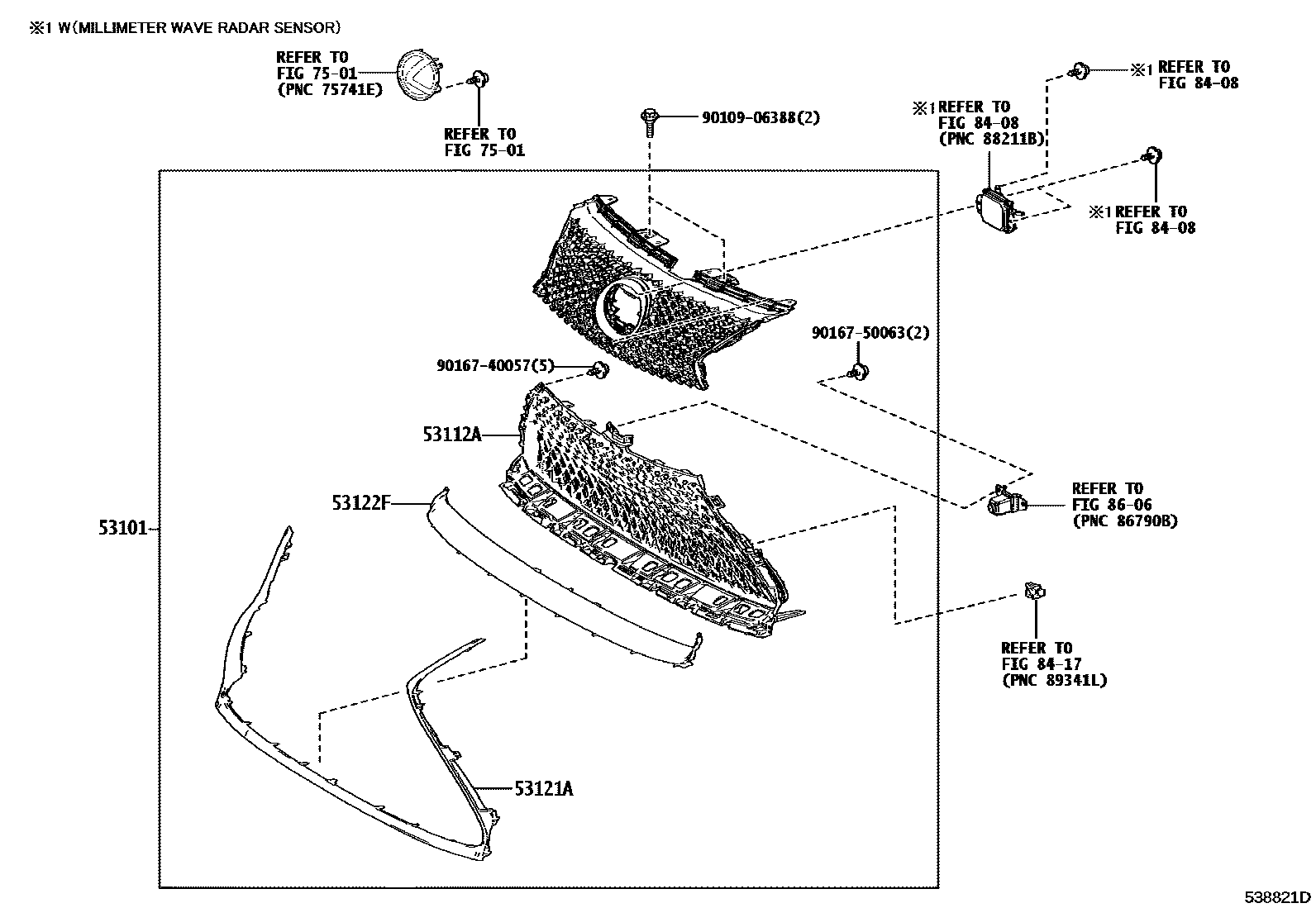

RADIATOR GRILLE

53101GRILLE SUB-ASSY, RADIATOR

main53101-11904iGWZ100..EUR202305-202403

NO PAINT REQ.

main53101-11904iGWZ100..ARL202305

NO PAINT REQ.,HONG KONG SPEC& "S+ PACKAGE"

main53101-11904iGWZ100..ARL202305

NO PAINT REQ.,SINGAPORE SPEC

main53101-11905iURZ100..EUR202305-202403

NO PAINT REQ.

main53101-11905iGWZ100..ARL202305

NO PAINT REQ.,SINGAPORE SPEC&PERSONAL PACKAGE

53112AGRILLE, RADIATOR, LOWER

main53112-11913iGWZ100..EUR202305-202403

main53112-11913iGWZ100..GEN202305

HONG KONG SPEC& "S+ PACKAGE"

main53112-11913iGWZ100..GEN202305

SINGAPORE SPEC

main53112-11914iGWZ100..ARL,CHI,GCC;URZ100..ARL,GCC,GEN202305

SINGAPORE SPEC&PERSONAL PACKAGE

main53112-11914iURZ100..EUR202305-202403

53121AMOULDING, RADIATOR GRILLE

main53121-11010iGWZ100..ARL202305

SINGAPORE SPEC&PERSONAL PACKAGE

main53121-11010iGWZ100,URZ100..EUR202305-202403

53122FMOULDING, RADIATOR GRILLE, NO.2

main53122-11010iGWZ100,URZ100..ARL,CHI,GCC,GEN202305

SINGAPORE SPEC&PERSONAL PACKAGE

main53122-11010iGWZ100,URZ100..EUR202305-202403

7501

8408

8417

8606

9010906388

main90109-06388

9016740057

main90167-40057

9016750063

main90167-50063

11 parts on this diagram · 1 diagram in section
