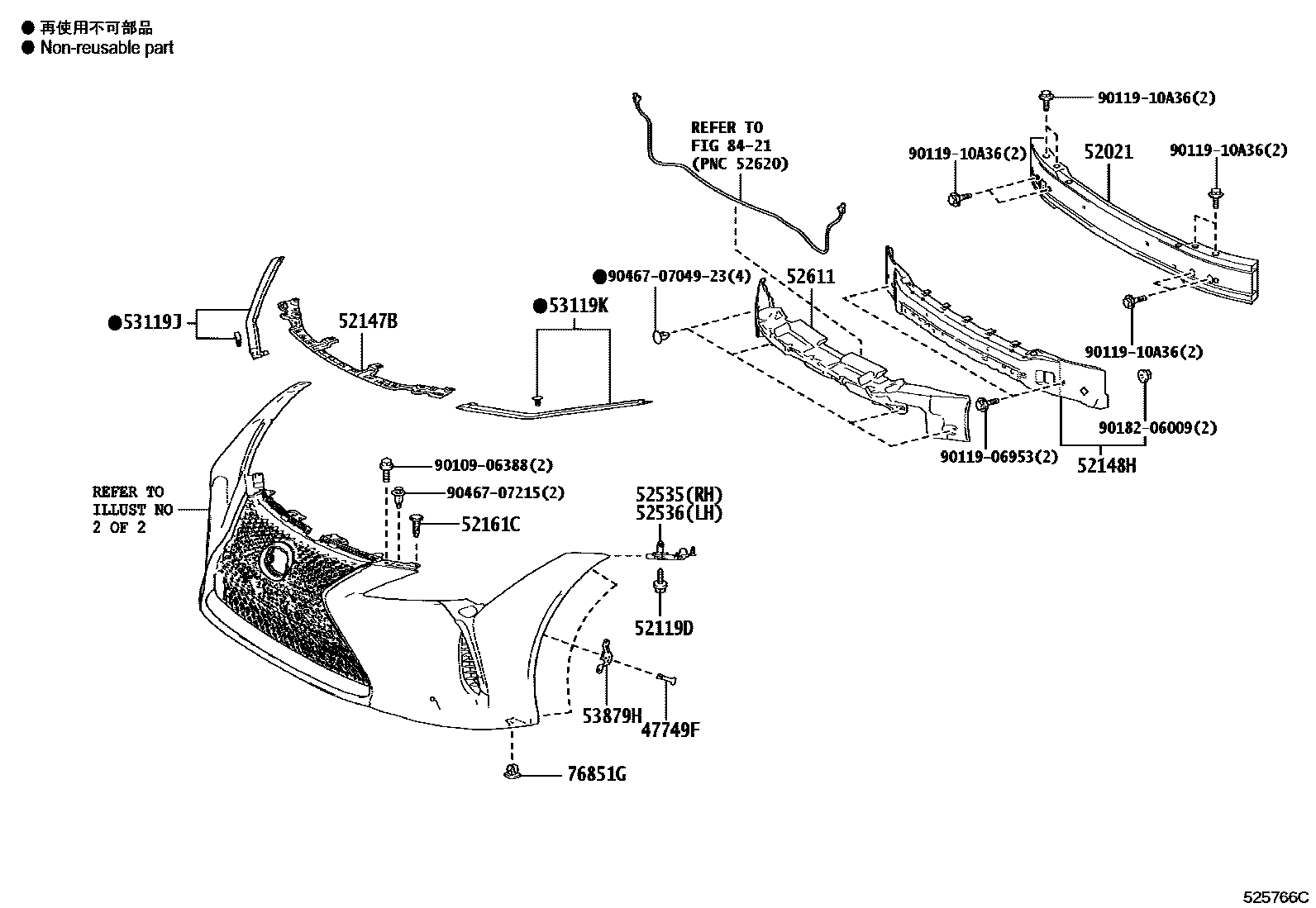

FRONT BUMPER & BUMPER STAY
47749FCLIP, PIN HOLD
52021REINFORCEMENT SUB-ASSY, FRONT BUMPER
52119DSCREW, NO.1
52147BBRACKET, FRONT BUMPER MOUNTING
52148HBRACKET, FRONT BUMPER MOUNTING, NO.2
52161CPIECE, FRONT BUMPER
sub52161-0K040
52535RETAINER, FRONT BUMPER SIDE, RH
52536RETAINER, FRONT BUMPER SIDE, LH
52611ABSORBER, FRONT BUMPER ENERGY
53119JPROTECTOR, RADIATOR GRILLE, RH
53119KPROTECTOR, RADIATOR GRILLE, LH
53879HRETAINER, FRONT FENDER LINER
76851GGROMMET, SCREW, NO.1
8421
9010906388
main90109-06388
9011906953
main90119-06953
9011910A36
main90119-10A36
9018206009
main90182-06009
904670704923
main90467-0704923
9046707215
main90467-07215
20 parts on this diagram · 2 diagrams in section
