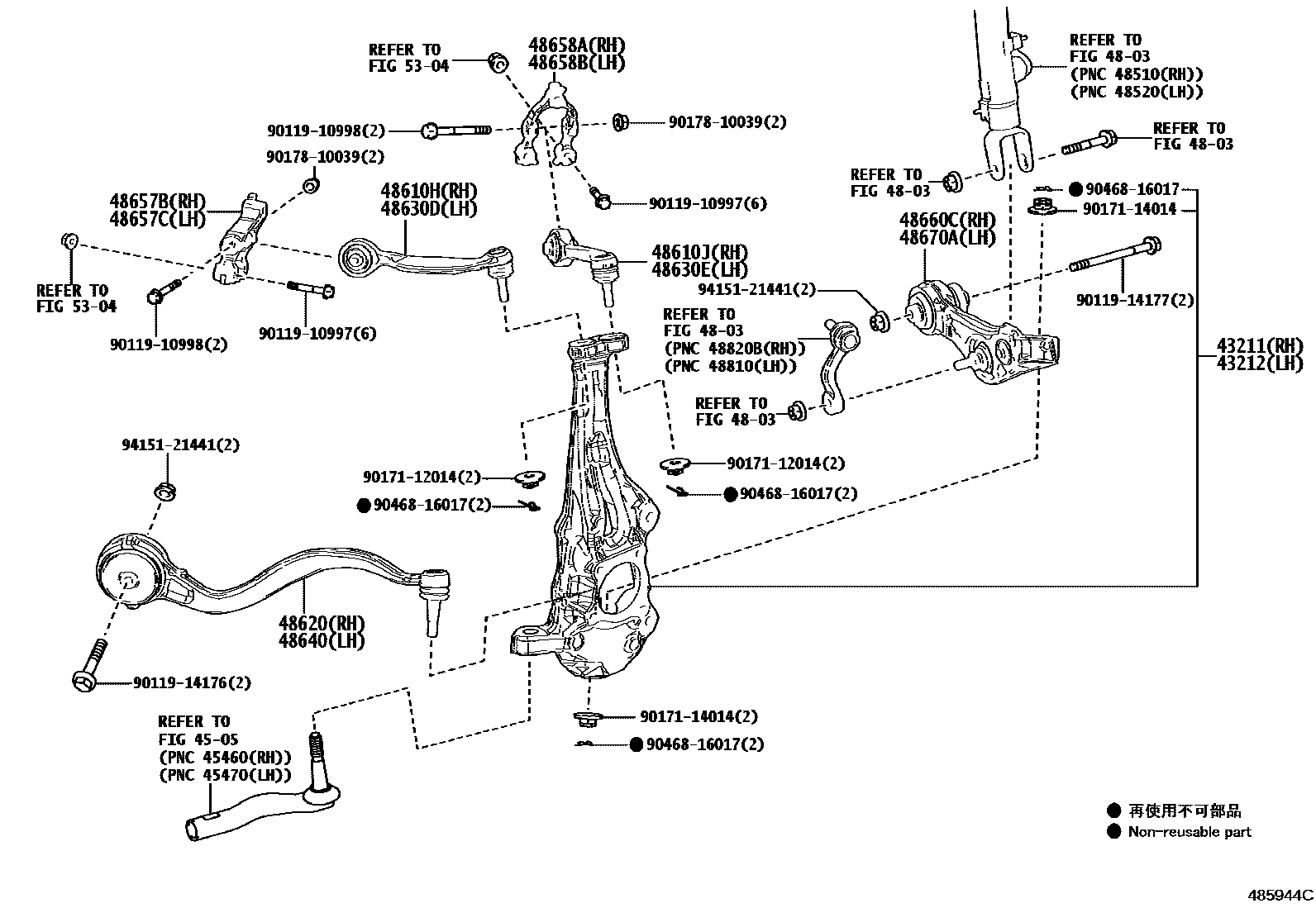

FRONT AXLE ARM & STEERING KNUCKLE

43211KNUCKLE, STEERING, RH

main43201-19005iGWZ100,URZ100..EUR202305-202403

43212KNUCKLE, STEERING, LH

main43202-19005iGWZ100,URZ100..EUR202305-202403

4505

4803

48610HARM ASSY, FRONT SUSPENSION UPPER, NO.1 RH

main48610-11010iGWZ100,URZ100..EUR202305-202403

48610JARM ASSY, FRONT SUSPENSION UPPER, NO.2 RH

main48610-11020iGWZ100,URZ100..EUR202305-202403

48620ARM ASSY, FRONT SUSPENSION, LOWER RH

main48620-11030iGWZ100,URZ100..EUR202305-202403

48630DARM ASSY, FRONT SUSPENSION UPPER, NO.1 LH

main48630-11010iGWZ100,URZ100..EUR202305-202403

48630EARM ASSY, FRONT SUSPENSION UPPER, NO.2 LH

main48630-11020iGWZ100,URZ100..EUR202305-202403

48640ARM ASSY, FRONT SUSPENSION LOWER, LH

main48640-11030iGWZ100,URZ100..EUR202305-202403

48657BBRACKET, FRONT UPPER ARM, NO.1 RH

main48657-11010iGWZ100,URZ100..EUR202305-202403

48657CBRACKET, FRONT UPPER ARM, NO.1 LH

main48657-11020iGWZ100,URZ100..EUR202305-202403

48658ABRACKET, FRONT UPPER ARM, NO.2 RH

main48658-11010iGWZ100,URZ100..EUR202305-202403

48658BBRACKET, FRONT UPPER ARM, NO.2 LH

main48658-11020iGWZ100,URZ100..EUR202305-202403

48660CARM ASSY, SUSPENSION, LOWER NO.2 RH

main48620-11040iGWZ100,URZ100..EUR202305-202403

48670AARM ASSY, SUSPENSION, LOWER NO.2 LH

main48640-11040iGWZ100,URZ100..EUR202305-202403

5304

9011910997

main90119-10997

9011910998

main90119-10998

9011914176

main90119-14176

9011914177

main90119-14177

9017112014

main90171-12014

9017114014

main90171-14014

9017810039

main90178-10039

9046816017

main90468-16017

9415121441

main94151-21441

26 parts on this diagram · 1 diagram in section
