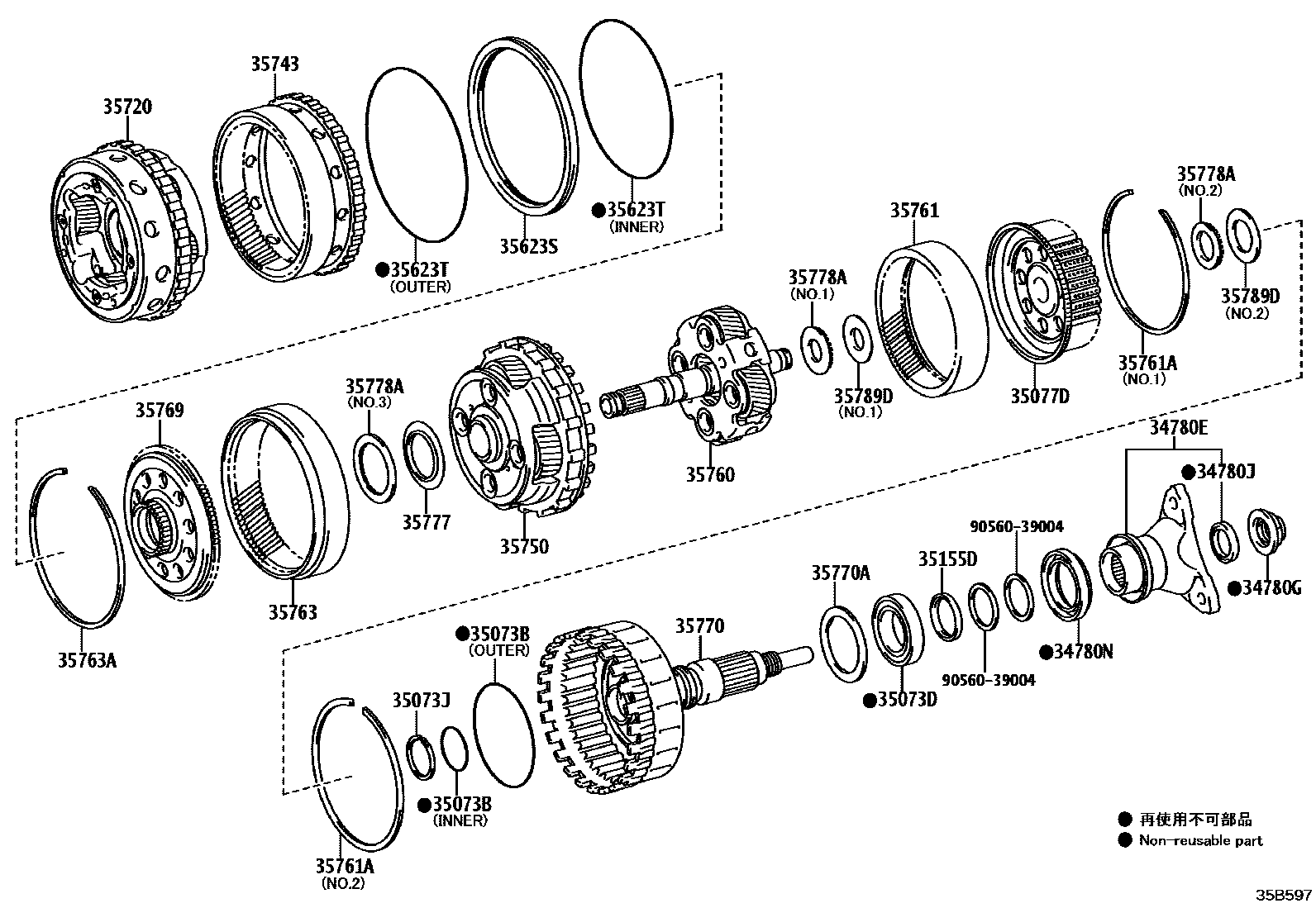

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)
34780EYOKE ASSY, FLANGE (FOR AUTOMATIC TRANSMISSION)
34780GNUT (FOR ATM FRANGE YOKE)
34780JSEAL, TYPE V OIL (FOR FRANGE YOKE)
34780NSEAL, TYPE T OIL (FOR FRANGE YOKE)
35073BRING, O (FOR OUTPUT SHAFT)
INNER
OUTER
35073DBEARING, RADIAL BALL (FOR OUTPUT SHAFT REAR)
35073JRING, HOLE SNAP (FOR OUTPUT SHAFT)
35077DFLANGE SUB-ASSY, RR PLANETARY RING GEAR
35155DSLEEVE, REAR COVER
T=1.75
T=1.80
T=1.85
T=1.90
T=1.95
T=2.00
T=2.05
T=2.10
T=2.15
T=2.20
T=2.25
T=2.30
T=2.35
T=2.40
T=1.70
35623SPISTON,1ST & REVERSE BRAKE
35623TRING, O(FOR 1ST & REVERSE BRAKE PISTON)
OUTER
INNER
35720GEAR ASSY, FRONT PLANETARY
35743GEAR, FRONT PLANETARY RING
35750GEAR ASSY, CENTER PLANETARY
35760GEAR ASSY, REAR PLANETARY
35761GEAR, REAR PLANETARY RING
35761ARING, HOLE SNAP (FOR REAR PLANETARY RING GEAR)
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
35763GEAR, CENTER PLANETARY RING
35763ARING, SNAP(FOR CENTER PLANETARY RING GEAR)
35769FLANGE, PLANETARY RING GEAR, CTR
35770SHAFT ASSY, OUTPUT
35770ABEARING, THRUST (FOR OUTPUT SHAFT)
35777RACE, THRUST BEARING, NO.7
35778ABEARING, THRUST NEEDLE ROLLER
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
NO.3:REFER ILLUST.
35789DRACE, THRUST BEARING (FOR FRONT PLANETARY GEAR REAR)
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
9056039004
main90560-39004
26 parts on this diagram · 1 diagram in section
