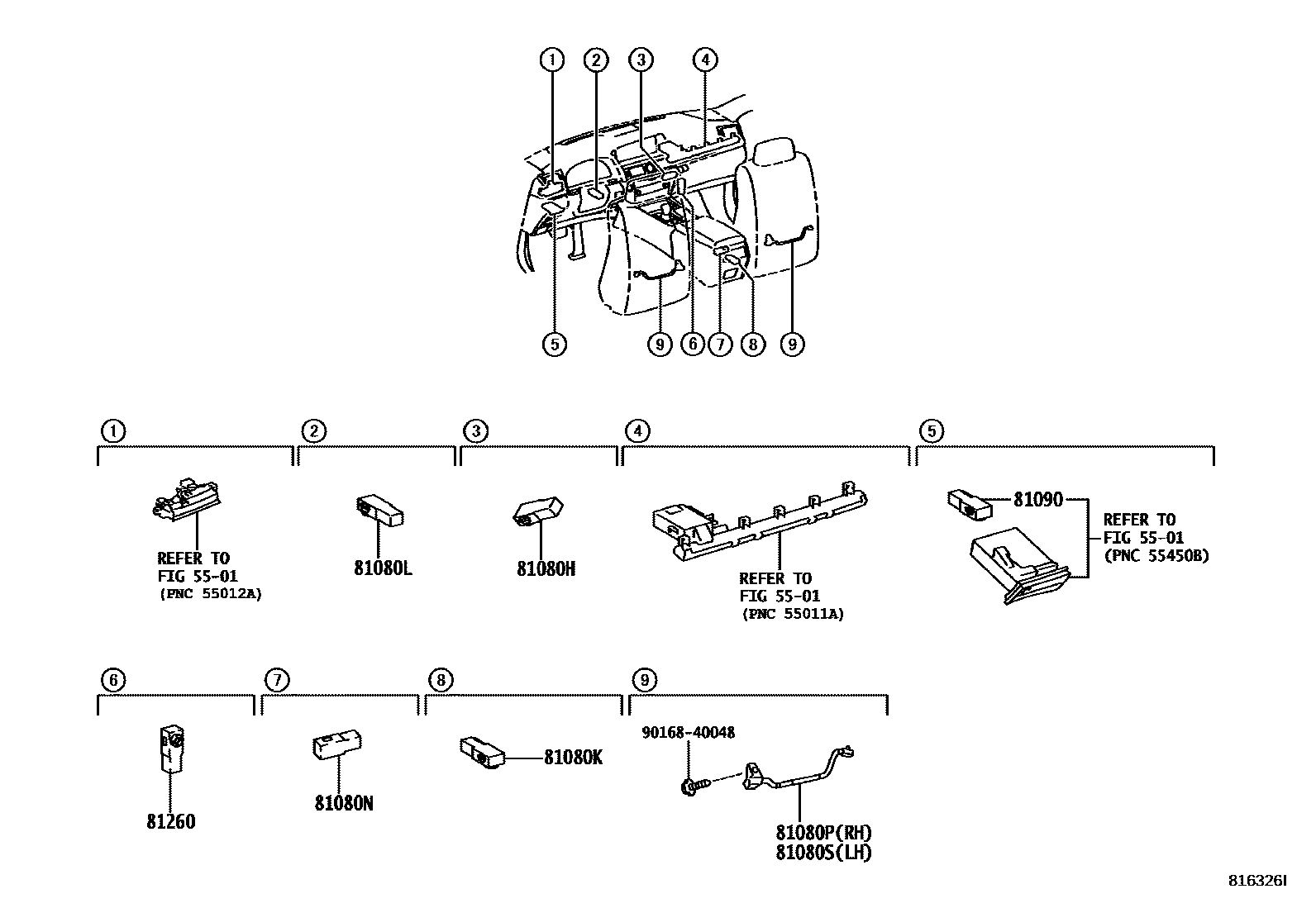

INTERIOR LAMP

0001 1LHD 0002 1RHD 0003 1 0004 1

5501

81080HLAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH

main81080-50070iUVF4#201209

81080KLAMP ASSY, CONSOLE BOX ILLUMINATION

main81080-50070iUVF46..CHI201211

81080LLAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH

main81080-50070iUVF4#201209

81080NLAMP ASSY, INTERIOR ILLUMINATION, NO.1

main81080-50070iUVF4#201209

81080PLAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH

main81081-50040iUVF46..CHI201209-201407

81080SLAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH

main81081-50050iUVF4#..EUR,GCC201209-201407

81090LAMP ASSY, INTERIOR ILLUMINATION, NO.2

main81080-22040iUVF4#201209-201507

main81080-58100iUVF4#201508

sub81080-33290

81260LAMP ASSY, GLOVE BOX

main81080-50070iUVF4#201209-201708

9016840048

main90168-40048

10 parts on this diagram · 4 diagrams in section
