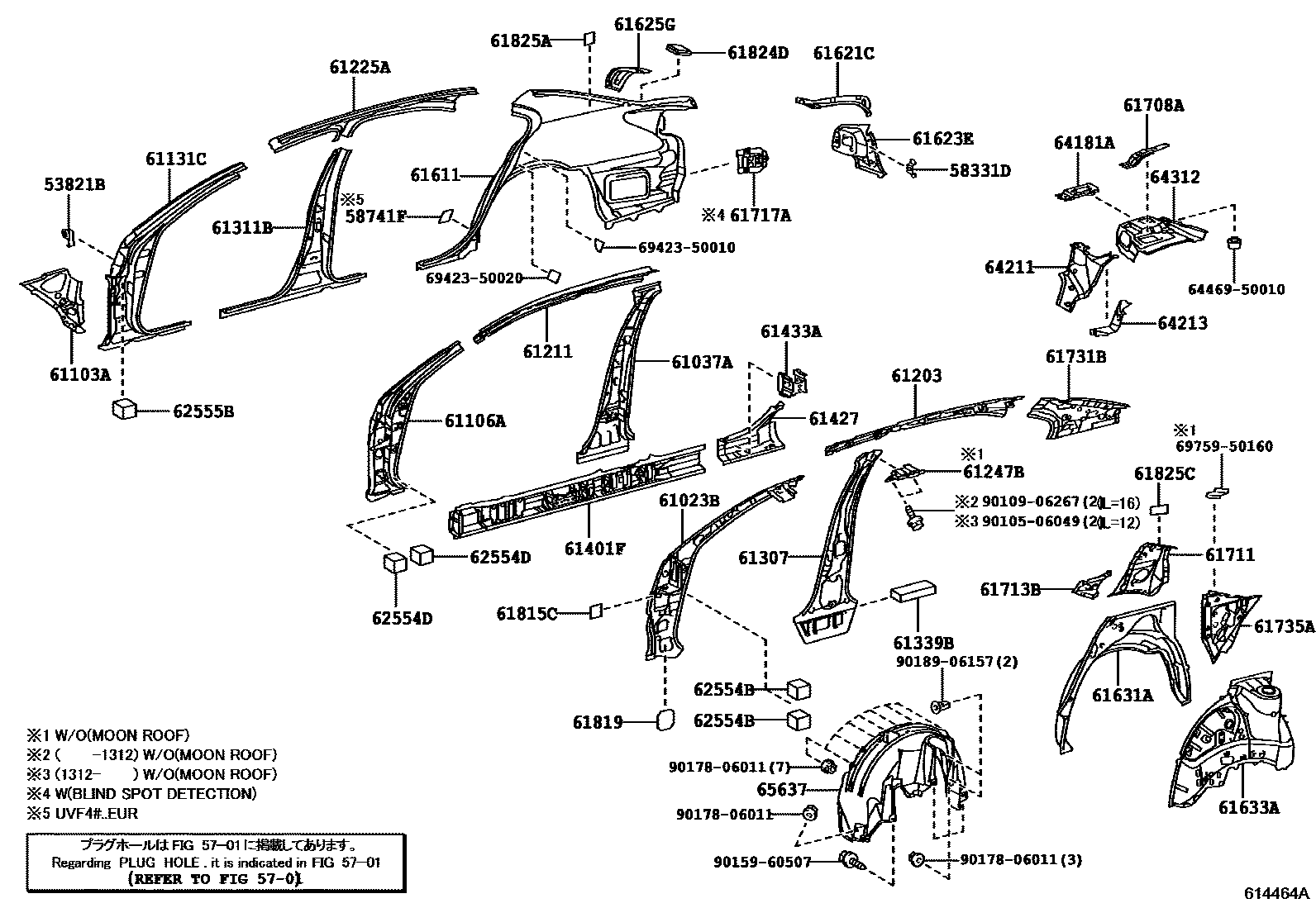

SIDE MEMBER
53821BBRACKET, FRONT FENDER, REAR RH
5701
58331DBRACKET, LUGGAGE COMPARTMENT TRIM, NO.1
58741FPROTECTOR, REAR WHEEL EXTENSION, RH
SOUTH AMERICA SPEC
HONGKONG,MACAO SPEC
SOUTH AFRICA SPEC
THAILAND SPEC
SOUTHEAST ASIA SPEC
TAIWAN SPEC
ISRAEL SPEC
MALAYSIA
TURKEY SPEC
PHILIPPINES SPEC
INDIA SPEC
61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH
61103AREINFORCEMENT SUB-ASSY, COWL SIDE, RH
61131CPILLAR, FRONT BODY, OUTER RH
61225ARAIL, ROOF SIDE OUTER UPPER NO.1, RH
61247BREINFORCEMENT, ROOF SIDE RAIL, INNER RH
MOON ROOF-WITHOUT
61307PILLAR SUB-ASSY, CENTER BODY, INNER RH
61339BSEAL, CENTER BODY PILLAR, INNER NO.1
61427REINFORCEMENT, ROCKER PANEL, NO.5 RH
61433AREINFORCEMENT, ROCKER PANEL, OUTER RH
61621CTROUGH, LUGGAGE COMPARTMENT OPENING, RH
61623EEXTENSION, QUARTER INNER PANEL, REAR RH
61625GEXTENSION, QUARTER PANEL, REAR RH
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
61633APANEL, QUARTER WHEEL HOUSE, INNER RH
61708AREINFORCEMENT SUB-ASSY, SEAT BELT ANCHOR, RH
61711PANEL, ROOF SIDE, OUTER RH
61713BREINFORCE, ROOF SIDE, OUTER RH
61717AREINFORCEMENT, QUARTER PANEL EXTENSION, RH
BLIND SPOT MONITOR SYSTEM-WITH
BLIND SPOT MONITOR SYSTEM-WITH(REAR CROSS TRAFFIC ALERT)
61731BPANEL, ROOF SIDE, INNER RH
61735APANEL, ROOF SIDE, INNER REAR RH
61815CCOVER, ROOF SIDE, INNER UPPER
61819COVER, ROOF SIDE, INNER LOWER
61824DPLATE, NOISE CONTROL, NO.1
61825APLATE, NOISE CONTROL, NO.2
61825CPAD, NOISE SHUTTER, NO.2
62554BPAD, PILLAR, NO.4
62554DPAD, FRONT PILLER
62555BPAD, PILLAR, NO.5
64181AREINFORCEMENT, REAR SEAT BELT ANCHOR, RH
64211STRAINER, PACKAGE TRAY TO FLOOR, RH
64213EXTENSION, PACKAGE TRAY STRAINER, RH
64312BRACKET, PACKAGE TRAY, RH
65637LINER, REAR WHEEL HOUSE, RH
6446950010CUSHION, LUGGAGE COMPARTMENT DOOR, NO.2
main64469-50010
6942350010CATCH, BACK DOOR LOCK
main69423-50010
6942350020CATCH, BACK DOOR LOCK
main69423-50020
6975950160SNAP, DOOR LOCK CONTROL LINK, NO.1
main69759-50160
9010506049
main90105-06049
9010906267
main90109-06267
9015960507
main90159-60507
9017806011
main90178-06011
9018906157
main90189-06157
53 parts on this diagram · 2 diagrams in section
