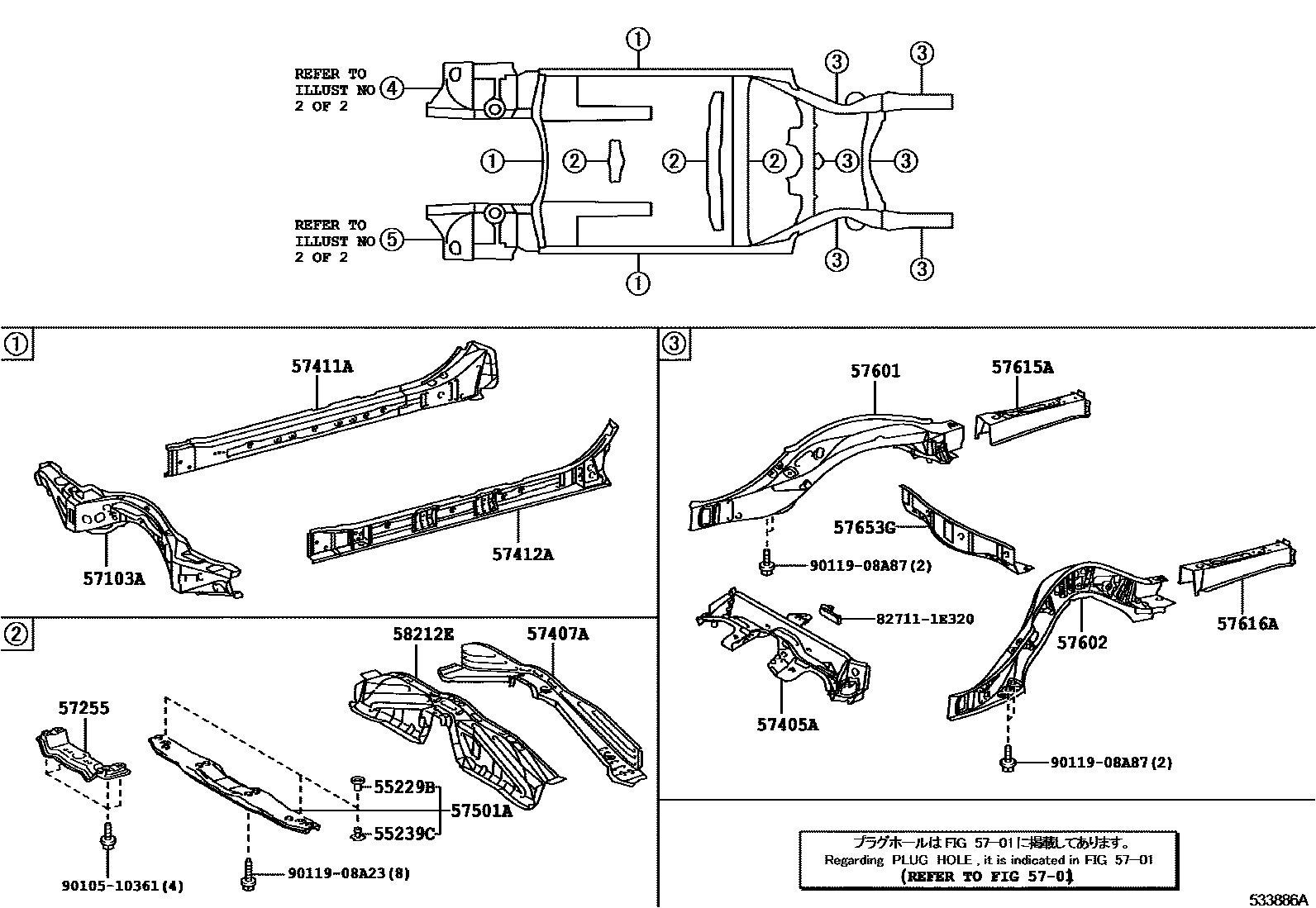

FLOOR SIDE MEMBER

0001 1 0002 1

55229BPLATE, DASH PANEL INSULATOR, NO.4

main55229-48010iUVF4#201209

55239CPLATE, DASH PANEL INSULATOR, NO.3

main55239-48020iUVF4#201209

5701

57103ACROSSMENBER SUB-ASSY, FLOOR, NO.3

main57103-50050iUVF4#..LHD201209

main57103-50060iUVF4#..RHD201209

57255MEMBER, ENGINE REAR MOUNTING

main57209-50010iUVF4#201209

57405AMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.2

main57405-50020iUVF4#201209-201708

sub57405-50021

sub90333-20001

57407AMEMBER SUB-ASSY, CENTER FLOOR CROSS

main57407-50060iUVF4#201209-201708

57411AMEMBER, FLOOR SIDE, INNER RH

main57401-50061iUVF45201209

main57401-50071iUVF46201209

57412AMEMBER, FLOOR SIDE, INNER LH

main57402-50051iUVF45201209

main57402-50061iUVF46201209

57501ABRACE SUB-ASSY, FRONT FLOOR, CENTER

main57501-50020iUVF4#201209

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-50908iUVF4#201209-201706

sub57601-50910

main57601-50910iUVF4#201706

sub57601-50911

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-50908iUVF4#201209-201509

sub57602-50910

main57602-50910iUVF4#201509-201706

sub57602-50912

main57602-50912iUVF4#201706

sub57602-50913

57615AMEMBER, REAR FLOOR SIDE, REAR RH

main57615-50906iUVF4#201209-201612

sub57615-50907

sub90333-30002

main57615-50907iUVF4#201612

57616AMEMBER, REAR FLOOR SIDE, REAR LH

main57616-50906iUVF4#201209-201612

sub57616-50907

sub90333-30002

main57616-50907iUVF4#201612

57653GMEMBER, REAR FLOOR CROSS, NO.2

main57653-50040iUVF4#201209-201708

58212EPAN, CENTER FLOOR, FRONT

main58202-50010iUVF45..RHD201210-201410

F SPORT

main58202-50010iUVF45..LHD201209-201708

main58202-50020iUVF45..LHD..EUR201209-201611

VERSION L

sub58202-50021

main58202-50020iUVF45..RHD201209-201410

sub58202-50021

main58202-50021iUVF46201612-201708

VERSION L

827111E320WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E320

9010510361

main90105-10361

9011908A23

main90119-08A23

9011908A87

main90119-08A87

20 parts on this diagram · 2 diagrams in section
