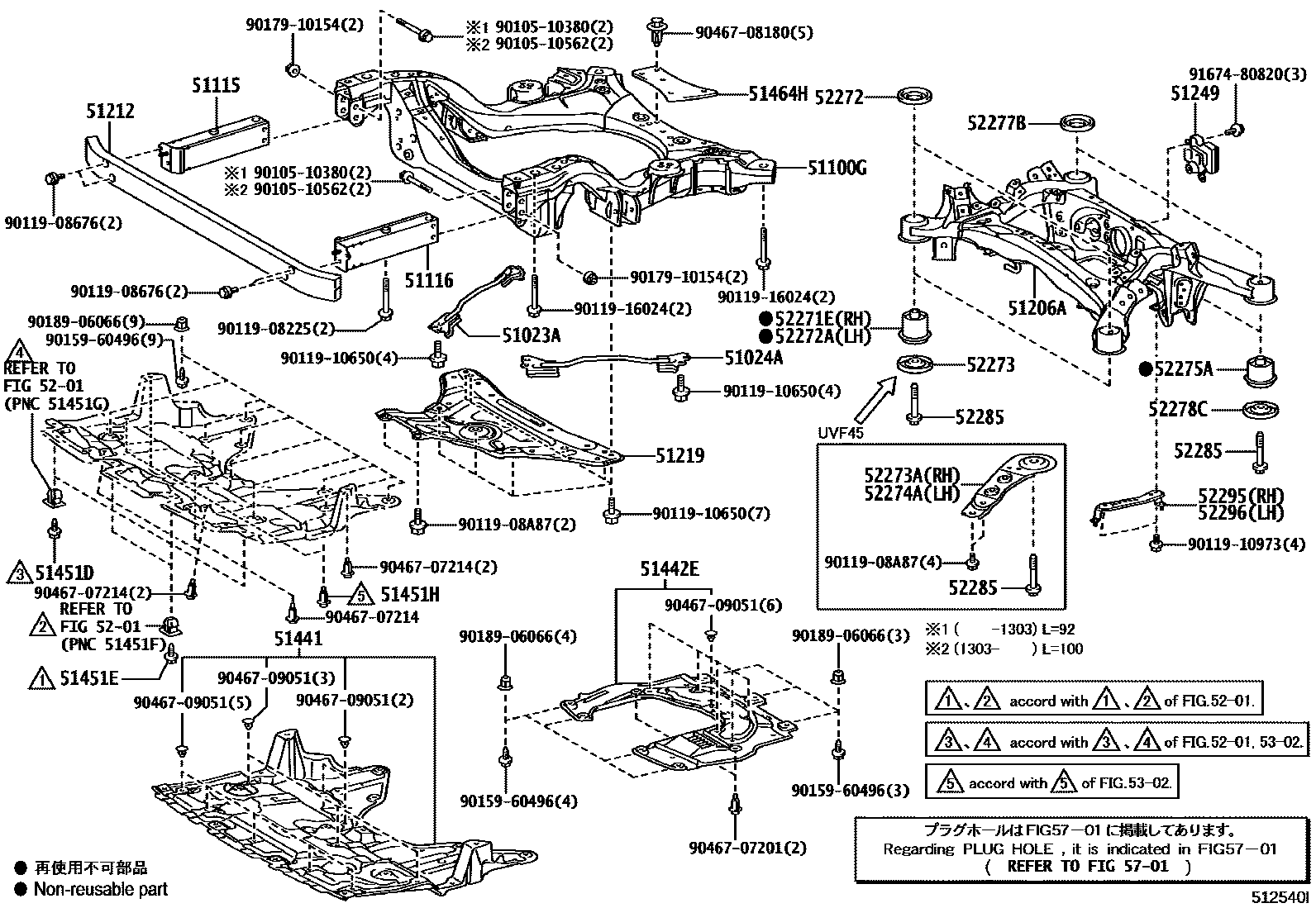

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1

51023ABRACKET SUB-ASSY, FRONT SUSPENSION MEMBER, RH

main51023-50010iUVF4#201209

51024ABRACKET SUB-ASSY, FRONT SUSPENSION MEMBER, LH

main51024-50010iUVF4#201209

51100GFRAME ASSY, FRONT

main51100-50030iUVF4#201209-201310

sub90105-10562

main51100-50031iUVF4#201310-201708

sub51100-50032

sub91674-A1028

51115RAIL, FRAME SIDE, REAR RH

main51107-50022iUVF4#201209

51116RAIL, FRAME SIDE, REAR LH

main51108-50022iUVF4#201209

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-50050iUVF4#201209-201307

main51206-50051iUVF4#201308

51212CROSSMEMBER, FRONT SUSPENSION, LOWER

main51212-50061iUVF4#201209

51219PROTECTOR, FRONT SUSPENSION MEMBER, LWR

main51219-50030iUVF4#201209

51249DAMPER, REAR SUSPENSION MEMBER

main51249-50030iUVF4#201209

51441COVER, ENGINE UNDER, NO.1

main51440-50080iUVF4#..CHI,EUR201209

main51440-50090iUVF4#..GCC201209

51442ECOVER, ENGINE UNDER, NO.2

main51420-50030iUVF4#201209

51451DSCREW, NO.1

main90159-60477×2iUVF4#201209-201708

51451ESCREW, NO.2

main90159-60477×2iUVF4#201209-201708

51451HSCREW, NO.3

main90467-07214×2iUVF4#201209-201708

51464HSILENCER, TRANSMISSION UNDER

main51464-50010iUVF4#201209

5201

52271ECUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT RH

main52271-50060iUVF4#201209-201302

main52271-50061iUVF4#201303

52272STOPPER, REAR SUSPENSION MEMBER, UPPER

main52278-50030×2iUVF4#201209

52272ACUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT LH

main52272-50010iUVF4#201209-201302

main52272-50011iUVF4#201303

52273STOPPER, REAR SUSPENSION MEMBER, LOWER

main52273-50020×2iUVF45..RHD201209-201410

52273ASTOPPER, REAR SUSPENSION MEMBER, LOWER RH

main52203-50010iUVF45..GCC201309

F SPORT

main52273-50040iUVF45..GCC201210-201309

F SPORT

52274ASTOPPER, REAR SUSPENSION MEMBER, LOWER LH

main52204-50010iUVF45..GCC201309

F SPORT

main52274-50040iUVF45..GCC201210-201309

F SPORT

52275ACUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR

main52275-50071×2iUVF4#201209-201302

main52275-50072×2iUVF4#201303

52277BSTOPPER, REAR SUSPENSION MEMBER, REAR UPPER

main52277-50031×2iUVF4#201209

52278CSTOPPER, REAR SUSPENSION MEMBER, REAR LOWER

main52274-50020×2iUVF4#201209

52285BOLT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, NO.1

main52285-30021×4iUVF4#201209-201302

main90119-14154×4iUVF4#201303

52295BRACE, REAR SUSPENSION MEMBER, RH

main52295-50030iUVF4#201209

52296BRACE, REAR SUSPENSION MEMBER, LH

main52295-50030iUVF4#201209

5701

9010510380

main90105-10380

9010510562

main90105-10562

9011908225

main90119-08225

9011908676

main90119-08676

9011908A87

main90119-08A87

9011910650

main90119-10650

9011910973

main90119-10973

9011916024

main90119-16024

9015960496

main90159-60496

9017910154

main90179-10154

9018906066

main90189-06066

9046707201

main90467-07201

9046707214

main90467-07214

9046708180

main90467-08180

9046709051

main90467-09051

9167480820

main91674-80820

45 parts on this diagram · 2 diagrams in section
