RADIATOR & WATER OUTLET

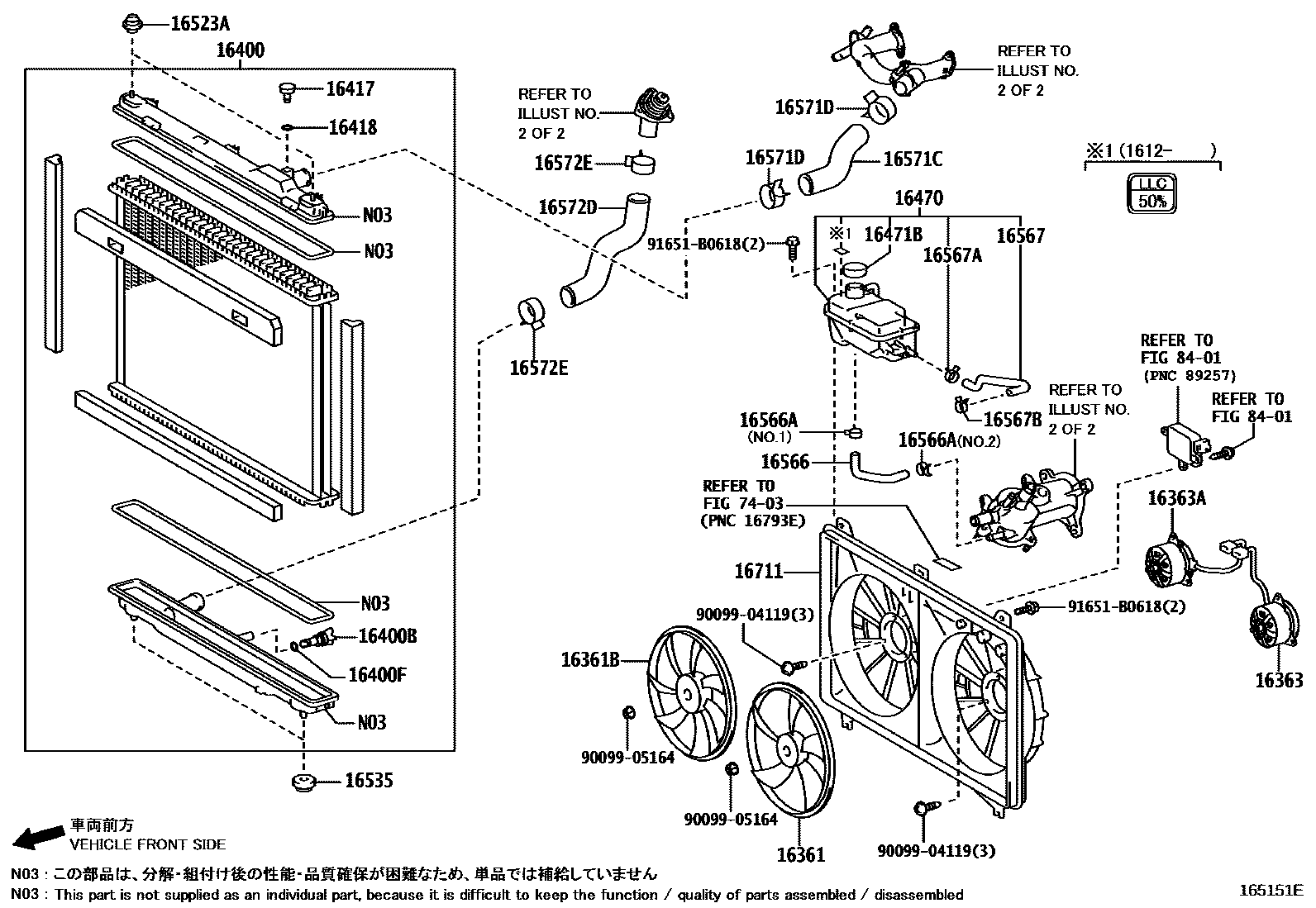

Parts diagram

16361FAN

main16361-38070i201209

main16361-38090i201209-201410

INDIA SPEC&F SPORT

16361BFAN, NO.2

main16361-38080i201209

main16361-38100i201209-201410

INDIA SPEC&F SPORT

16363MOTOR, COOLING FAN

main16363-38070i201209

main16363-38120i201209

THAILAND SPEC

16363AMOTOR, COOLING FAN, NO.2

main16363-38080i201209

main16363-38100i201209-201410

INDIA SPEC&F SPORT

16400RADIATOR ASSY

main16400-38201i201209-201409

main16400-38202i201410

16400BPLUG, RADIATOR DRAIN COCK

main16417-21280i201209

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16492-21050i201209

16417COCK

main16417-28530i201209

16418PACKING

main16418-20290i201209-201410

main16418-20291i201410

16470TANK ASSY, RADIATOR RESERVE

main16470-38070i201612

main16470-38080i201209-201409

main16470-38081i201410-201603

main16470-38082i201604-201612

16471BCAP, RESERVE TANK

main16475-28140i201604

main16475-37010i201209-201409

main16475-37011i201410-201603

16523ACUSHION, RADIATOR SUPPORT

main16523-38010×2i201209

16535SUPPORT, RADIATOR, LOWER

main90480-40021×2i201209-201603

main90480-40022×2i201604

16566HOSE, RESERVE TANK OUTLET

main16566-38050i201209

16566ACLIP(FOR RESERVE TANK OUTLET)

main90467-15022i201209

NO.1

main96137-41501i201209

NO.2

16567HOSE(FOR RADIATOR RESERVE TANK)

main16567-38011i201209

16567ACLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-16037i201209

16567BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE NO.2)

main96136-42101i201209

16571CHOSE, RADIATOR, NO.1

main16571-38061i201209

16571DCLIP, RADIATOR HOSE, NO.1

main90466-39002×2i201209

16572DHOSE, RADIATOR, NO.2

main16572-38111i201209

16572ECLIP, RADIATOR HOSE, NO.2

main90466-39002×2i201209

16711SHROUD, FAN

main16711-38100i201209

main16711-38080i201209-201410

INDIA SPEC&F SPORT

7403

8401

9009904119

main90099-04119

9009905164

main90099-05164

91651B0618

main91651-B0618

28 parts on this diagram · 2 diagrams in section
