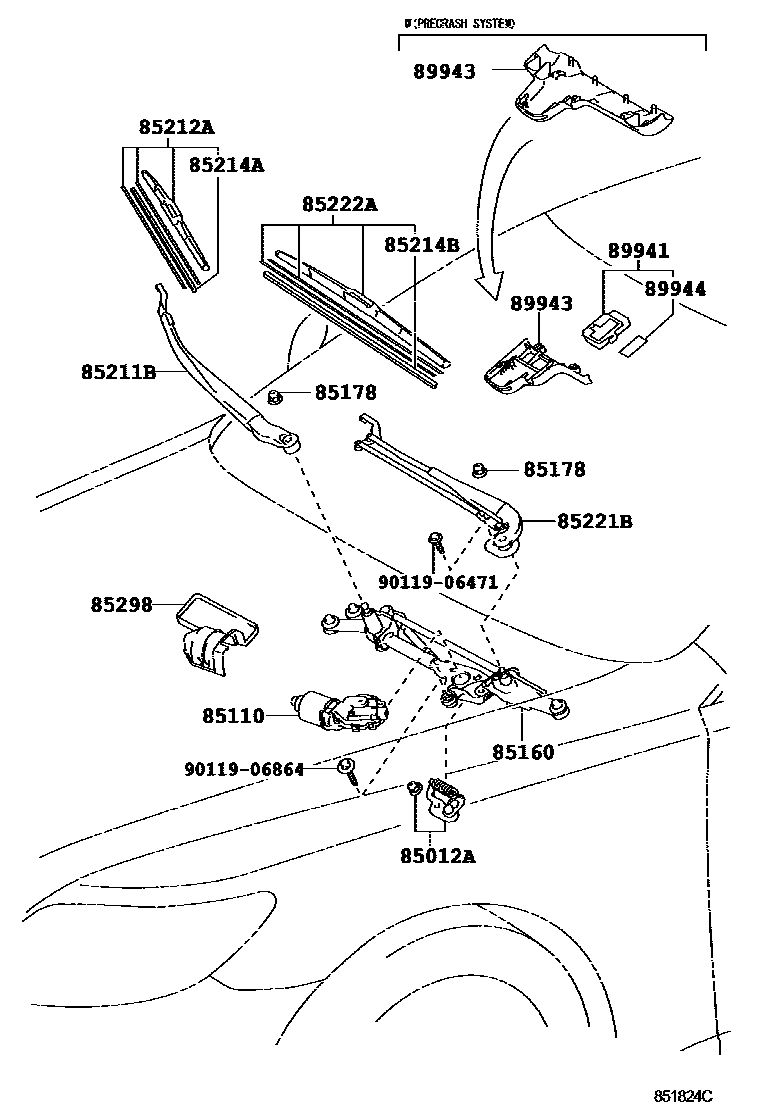

WINDSHIELD WIPER
85012ACRANK SUB-ASSY, FRONT WIPER
85110MOTOR ASSY, WINDSHIELD WIPER
85178NUT (FOR FRONT WIPER ARM SETTING)
85211BARM, FRONT WIPER, RH
AUSTRALIA SPEC
NEW ZEALAND SPEC
85212ABLADE, FR WIPER, RH
85214ARUBBER, WIPER, RH
85214BRUBBER, WIPER, LH
85221BARM, FRONT WIPER, LH
AUSTRALIA SPEC
NEW ZEALAND SPEC
85222ABLADE, FR WIPER, LH
85298COVER, WIPER MOTOR
89941SENSOR, RAIN
PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)
sub89941-50070
sub89941-50080
PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)
sub89941-50071
PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)
sub89941-50071
PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)
sub89941-50081
89943COVER, RAIN SENSOR
PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)
PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)
PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)
PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)
9011906471
main90119-06471
9011906864
main90119-06864
16 parts on this diagram · 2 diagrams in section
