WIRELESS DOOR LOCK

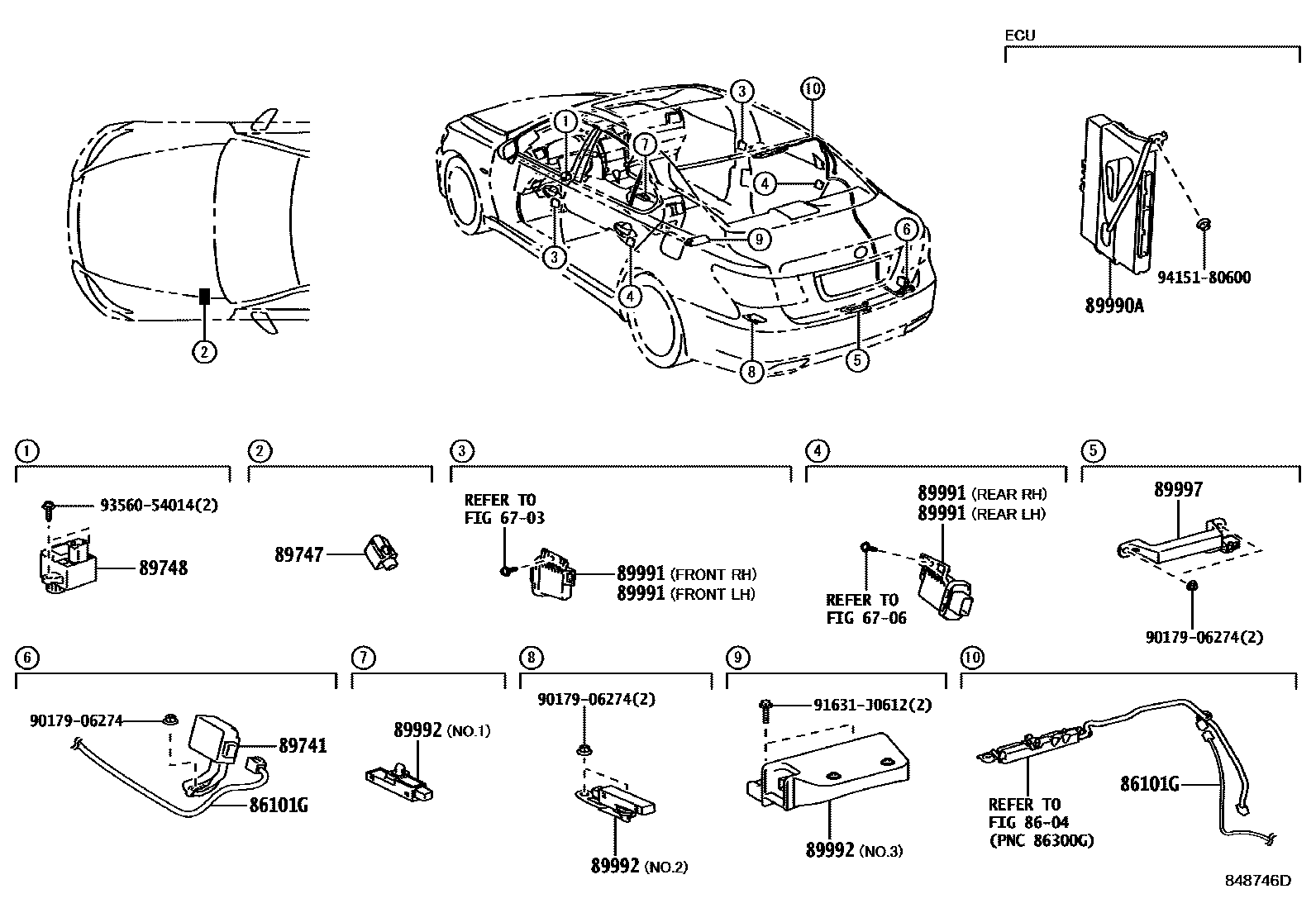

Parts diagram
6703
6706
8604
86101GCORD SUB-ASSY, ANTENNA
main86101-50620i200704-201209
89741RECEIVER, DOOR CONTROL
main89740-50060i200704-200707
NEW ZEALAND SPEC
sub89740-50061
main89740-50060i200704-200707
NEW ZEALAND SPEC&KEY PLATE-ELECTRICAL KEY(2)+CARD TYPE(1)
sub89740-50061
main89740-50060i200704-200707
AUSTRALIA SPEC
sub89740-50061
main89740-50060i200704-200707
AUSTRALIA SPEC&KEY PLATE-ELECTRICAL KEY(2)+CARD TYPE(1)
sub89740-50061
main89740-50060i200704-200707
FORMOSA SPEC
sub89740-50061
main89740-50060i200704-200707
FORMOSA SPEC&KEY PLATE-ELECTRICAL KEY(2)+CARD TYPE(1)
sub89740-50061
main89740-50061i200708-201109
NEW ZEALAND SPEC
main89740-50061i200708-201109
AUSTRALIA SPEC
main89740-50061i200708-201109
FORMOSA SPEC
main89740-50061i200708-200809
NEW ZEALAND SPEC&KEY PLATE-ELECTRICAL KEY(2)+CARD TYPE(1)
main89740-50061i200708-200809
AUSTRALIA SPEC&KEY PLATE-ELECTRICAL KEY(2)+CARD TYPE(1)
main89740-50061i200708-200809
FORMOSA SPEC&KEY PLATE-ELECTRICAL KEY(2)+CARD TYPE(1)
main89740-50061i200809-200911
NEW ZEALAND SPEC&ELECTRICAL KEY(2)+CARD TYPE(1)
main89740-50061i200809-200911
AUSTRALIA SPEC&ELECTRICAL KEY(2)+CARD TYPE(1)
main89740-50061i200809-200911
FORMOSA SPEC&ELECTRICAL KEY(2)+CARD TYPE(1)
main89740-50070i200704-201109
CHINA(EXCEPT BEIJING) SPEC
main89740-50070i200704-201109
BEIJING SPEC
main89740-50070i200704-200809
BEIJING SPEC&KEY PLATE-ELECTRICAL KEY(2)+CARD TYPE(1)
main89740-50070i200704-201109
HONG KONG SPEC
main89740-50070i200704-200809
HONG KONG SPEC&KEY PLATE-ELECTRICAL KEY(2)+CARD TYPE(1)
main89740-50070i200704-200809
CHINA(EXCEPT BEIJING) SPEC&KEY PLATE-ELECTRICAL KEY(2)+CARD TYPE(1)
main89740-50070i200809-200911
BEIJING SPEC&ELECTRICAL KEY(2)+CARD TYPE(1)
main89740-50070i200809-200911
HONG KONG SPEC&ELECTRICAL KEY(2)+CARD TYPE(1)
main89740-50070i200809-200911
CHINA(EXCEPT BEIJING) SPEC&ELECTRICAL KEY(2)+CARD TYPE(1)
main89740-50090i200704-200705
sub89740-50091
main89740-50091i200706-200911
main89740-50110i200704-200707
SINGAPORE SPEC&KEY PLATE-ELECTRICAL KEY(2)+CARD TYPE(1)
sub89740-50111
main89740-50110i200704-200707
SINGAPORE SPEC
sub89740-50111
main89740-50111i200809-200911
SINGAPORE SPEC&ELECTRICAL KEY(2)+CARD TYPE(1)
sub89740-50112
main89740-50111i200708-200911
SINGAPORE SPEC
sub89740-50112
main89740-50111i200708-200809
SINGAPORE SPEC&KEY PLATE-ELECTRICAL KEY(2)+CARD TYPE(1)
sub89740-50112
main89740-50180i200911-201106
AUSTRALIA SPEC
main89740-50180i200911-201106
NEW ZEALAND SPEC
main89740-50180i200911-201106
FORMOSA SPEC
main89740-50190i200911-201108
sub89740-50191
main89740-50191i201109
sub89740-50192
main89740-50210i200911-201107
CHINA(EXCEPT BEIJING) SPEC
main89740-50210i200911-201107
BEIJING SPEC
main89740-50210i200911-201108
HONG KONG SPEC
main89740-50220i200911
SOUTH AMERICA SPEC
89747BUZZER, WIRELESS DOOR LOCK
main89747-52010i200704-200911
89748CONTROLLER, WIRELESS DOOR LOCK BUZZER
main89748-50010i200704-201209
89990ACOMPUTER ASSY, SMART KEY
main89990-50021i200704-200709
sub89990-50022
main89990-50022i200710-200809
sub89990-50023
main89990-50041i200704-200809
sub89990-50042
main89990-50100i200809-200911
sub89990-50101
main89990-50120i200809-200911
sub89990-50121
main89990-50130i200911-201008
sub89990-50131
main89990-50131i201009-201106
sub89990-50132
main89990-50132i201107
sub89990-50133
main89990-50141i200911-201008
THAILAND SPEC
sub89990-50142
main89990-50141i200911-201008
HONG KONG SPEC
sub89990-50142
main89990-50141i200911-201008
AUSTRALIA SPEC
sub89990-50142
main89990-50141i200911-201008
NEW ZEALAND SPEC
sub89990-50142
main89990-50141i200911-201008
MALAYSIA SPEC
sub89990-50142
main89990-50141i200911-201008
SINGAPORE SPEC
sub89990-50142
main89990-50142i201009-201106
THAILAND SPEC
sub89990-50143
main89990-50142i201009-201106
MALAYSIA SPEC
sub89990-50143
main89990-50142i201009-201106
NEW ZEALAND SPEC
sub89990-50143
main89990-50142i201009-201106
AUSTRALIA SPEC
sub89990-50143
main89990-50142i201009-201106
HONG KONG SPEC
sub89990-50143
main89990-50142i201009-201106
SINGAPORE SPEC
sub89990-50143
main89990-50143i201107
AUSTRALIA SPEC
sub89990-50144
main89990-50143i201107
MALAYSIA SPEC
sub89990-50144
main89990-50143i201107
THAILAND SPEC
sub89990-50144
main89990-50143i201107
HONG KONG SPEC
sub89990-50144
main89990-50143i201107
NEW ZEALAND SPEC
sub89990-50144
main89990-50143i201107
SINGAPORE SPEC
sub89990-50144
main89990-50150i200911-201008
sub89990-50151
main89990-50151i201009-201106
sub89990-50152
main89990-50152i201107-201109
sub89990-50153
main89990-50160i200911-201001
GCC SPEC
sub89990-50161
main89990-50160i200911-201001
PHILIPPINES SPEC
sub89990-50161
main89990-50160i200911-201001
FORMOSA SPEC
sub89990-50161
main89990-50160i200911-201001
SOUTH AMERICA SPEC
sub89990-50161
main89990-50161i201002-201008
PHILIPPINES SPEC
sub89990-50162
main89990-50161i201002-201008
GCC SPEC
sub89990-50162
main89990-50161i201002-201008
FORMOSA SPEC
sub89990-50162
main89990-50161i201002-201008
SOUTH AMERICA SPEC
sub89990-50162
main89990-50162i201009-201106
FORMOSA SPEC
sub89990-50163
main89990-50162i201009-201106
SOUTH AMERICA SPEC
sub89990-50163
main89990-50162i201009-201106
GCC SPEC
sub89990-50163
main89990-50162i201009-201106
PHILIPPINES SPEC
sub89990-50163
main89990-50163i201107-201109
GCC SPEC
sub89990-50164
main89990-50163i201107-201109
PHILIPPINES SPEC
sub89990-50164
main89990-50163i201107-201109
FORMOSA SPEC
sub89990-50164
main89990-50163i201107-201109
SOUTH AMERICA SPEC
sub89990-50164
main89990-50170i200911-201008
sub89990-50171
main89990-50171i201009
main89990-50190i201109
sub89990-50191
main89990-50200i201109-201203
PHILIPPINES SPEC
sub89990-50250
main89990-50200i201109-201203
FORMOSA SPEC
sub89990-50250
main89990-50200i201109-201203
SOUTH AMERICA SPEC
sub89990-50250
main89990-50200i201109-201203
GCC SPEC
sub89990-50250
main89990-50201i201203
FORMOSA SPEC
sub89990-50202
main89990-50201i201203
SOUTH AMERICA SPEC
sub89990-50202
main89990-50201i201203
GCC SPEC
sub89990-50202
main89990-50201i201203
PHILIPPINES SPEC
sub89990-50202
main89990-50201i201203
ISRAEL SPEC
sub89990-50202
89991OSCILLATOR, DOOR ELECTRICAL KEY
main89991-33010i200704-201209
FRONT-RH,REAR-LH
main89991-33020i200704-201209
FRONT-LH,REAR-RH
89992OSCILLATOR, INDOOR ELECTRICAL KEY
main89992-30090i200704-200911
NO.1
main89992-50100i200704-201111
NO.3
sub89992-50101
main89992-50101i201112
NO.3
main89992-50110i200809-201102
NO.2
sub89992-50111
main89992-50111i201103
NO.2
main89992-53010i200704-200809
NO.2
89997ANTENNA, ELECTRICAL KEY
main89997-30070i201108-201209
main89997-41010i200704-201108
9017906274
main90179-06274
91631J0612
main91631-J0612
9356054014
main93560-54014
9415180600
main94151-80600

15 parts on this diagram · 2 diagrams in section
