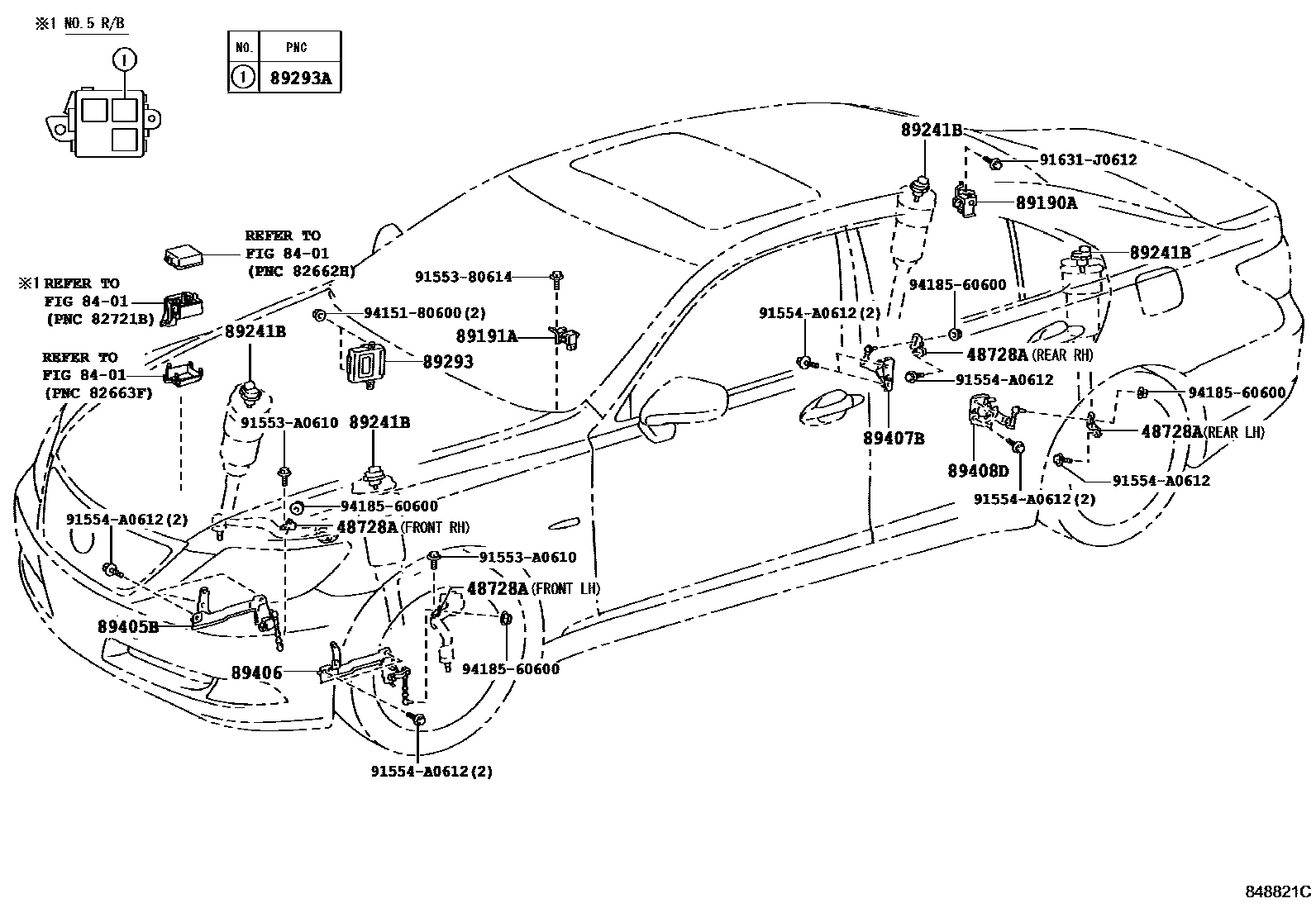

ELECTRONIC MODULATED SUSPENSION

0001 1 0002 1

48728ABRACKET, LOAD SENSING VALVE SENSOR

main48728-50010iUVF4#200704-200809

REAR RH

main48728-50020iUVF4#200704-200809

REAR LH

main48728-50030iUVF4#200809-200911

FRONT RH

main48728-50040iUVF4#200704-200809

FRONT LH

8401

89190ASENSOR ASSY, ACCELERATION

main89190-30020iUVF4#200704-200809

main89190-30021iUVF4#201108-201111

main89190-30050iUVF4#201111

89191ASENSOR, ACCELERATION

main89190-50010iUVF4#..RHD200911-201107

main89190-50011iUVF4#..RHD201108

main89190-50020iUVF4#..LHD200809-200911

main89190-50021iUVF4#..LHD201108

89241BACTUATOR, ABSORBER CONTROL

main89241-30040×4iUVF4#200704-200809

main89241-30041×4iUVF4#201105

89293COMPUTER, SUSPENSION CONTROL

main89293-50193iUVF4#..LHD200911

main89293-50202iUVF4#..RHD200704-200809

main89293-50203iUVF4#..RHD200911

main89293-50212iUVF4#..LHD200809-200911

89293ARELAY, SUSPENSION CONTROL

main90987-02025iUVF4#200704-200809

89405BSENSOR SUB-ASSY, HEIGHT CONTROL, FRONT RH

main89405-50090iUVF4#200809-200911

main89405-50100iUVF4#200911

89406SENSOR SUB-ASSY, HEIGHT CONTROL, FRONT LH

main89406-50120iUVF4#200704-200809

main89406-50130iUVF4#200911

89407BSENSOR SUB-ASSY, HEIGHT CONTROL, REAR RH

main89407-50070iUVF4#200704-200809

89408DSENSOR SUB-ASSY, HEIGHT CONTROL, REAR LH

main89408-50070iUVF4#200704-200809

9155380614

main91553-80614

91553A0610

main91553-A0610

91554A0612

main91554-A0612

91631J0612

main91631-J0612

9415180600

main94151-80600

9418560600

main94185-60600

17 parts on this diagram · 2 diagrams in section
