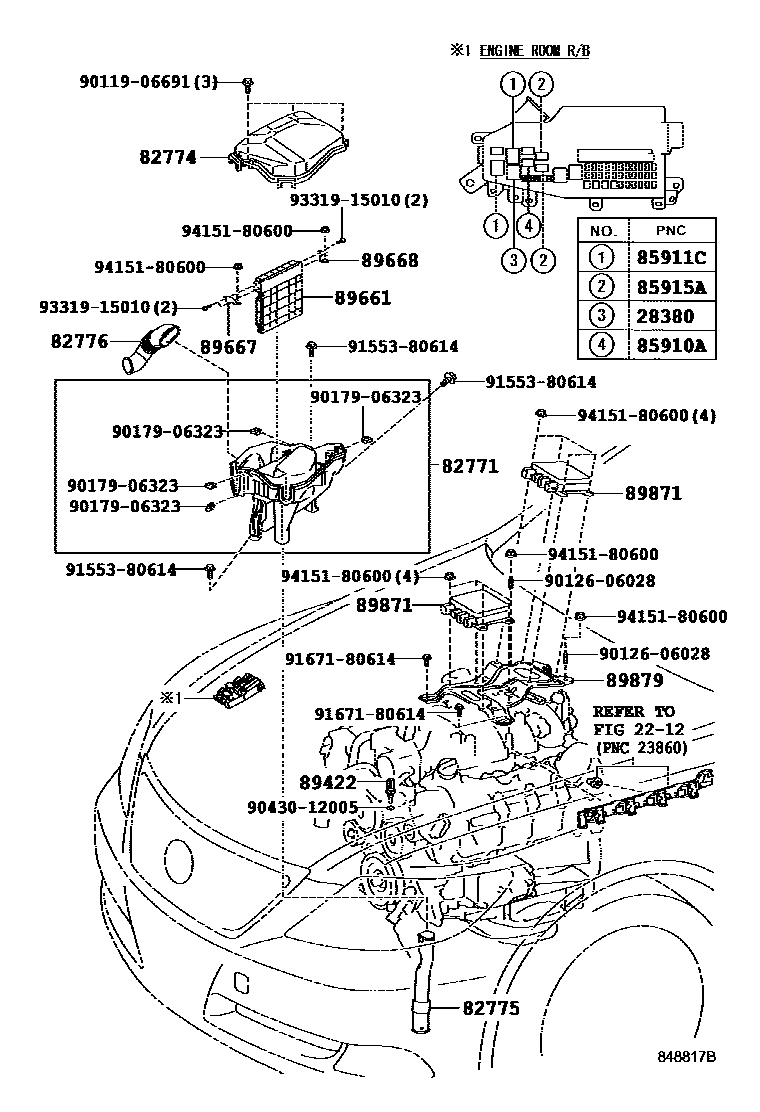

ELECTRONIC FUEL INJECTION SYSTEM
2212
28380RELAY ASSY, FUEL PUMP
82771BOX, ENGINE ROOM ECU
82774COVER, ENGINE ROOM ECU
82775DUCT, ENGINE ROOM ECU INLET
82776DUCT, ENGINE ROOM ECU OUTLET
85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)
85911CRELAY, EFI 2
85915ARELAY, MAIN
89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89661COMPUTER, ENGINE CONTROL
SINGAPORE SPEC
CHINA(EXCEPT BEIJING) SPEC
CHINA(EXCEPT BEIJING) SPEC
BEIJING SPEC
RUSSIA SPEC
SOUTH AFRICA SPEC
THAILAND SPEC
SINGAPORE SPEC
MALAYSIA SPEC
SOUTH AMERICA SPEC&EXHAUST EMISSION CONTROL-EUROPE STEP4 WITHOUT(ON BOARD DIAGNOSIS)
RUSSIA SPEC&EXHAUST EMISSION CONTROL-EUROPE STEP4 WITH(ON BOARD DIAGNOSIS)
SOUTH AMERICA SPEC&EXHAUST EMISSION CONTROL-EUROPE STEP4 WITH(ON BOARD DIAGNOSIS)
BEIJING SPEC&EXHAUST EMISSION CONTROL-EUROPE STEP4 WITH(ON BOARD DIAGNOSIS)
CHINA(EXCEPT BEIJING) SPEC&EXHAUST EMISSION CONTROL-EUROPE STEP4 WITH(ON BOARD DIAGNOSIS)
PHILIPPINES SPEC&EXHAUST EMISSION CONTROL-EUROPE STEP4 WITHOUT(ON BOARD DIAGNOSIS)
KAZAKHSTAN SPEC&EXHAUST EMISSION CONTROL-EUROPE STEP4 WITHOUT(ON BOARD DIAGNOSIS)
89667BRACKET, ENGINE CONTROL COMPUTER
89668BRACKET, ENGINE CONTROL COMPUTER, NO.2
89871DRIVER, INJECTOR
89879BRACKET, INJECTOR DRIVER
9011906691
main90119-06691
9012606028
main90126-06028
9017906323
main90179-06323
9043012005
main90430-12005
9155380614
main91553-80614
9167180614
main91671-80614
9331915010
main93319-15010
9415180600
main94151-80600
23 parts on this diagram · 1 diagram in section
