INTERIOR LAMP
5501
6402
81080DLAMP ASSY, FRONT DOOR INSIDE HANDLE ILLUMINATION, RH
BEIJING SPEC&INSTRUMENT FINISH PANEL-LEATHER(UPPER&LOWER&DOOR)
CHINA(EXCEPT BEIJING) SPEC
CHINA(EXCEPT BEIJING) SPEC&INSTRUMENT FINISH PANEL-LEATHER(UPPER&LOWER&DOOR)
BEIJING SPEC
CHINA(EXCEPT BEIJING) SPEC&WITH(REAR COOLER)
BEIJING SPEC&WITH(REAR COOLER)
81080ELAMP ASSY, FRONT DOOR INSIDE HANDLE ILLUMINATION, LH
CHINA(EXCEPT BEIJING) SPEC&INSTRUMENT FINISH PANEL-LEATHER(UPPER&LOWER&DOOR)
BEIJING SPEC
BEIJING SPEC&WITH(REAR COOLER)
CHINA(EXCEPT BEIJING) SPEC
CHINA(EXCEPT BEIJING) SPEC&WITH(REAR COOLER)
BEIJING SPEC&INSTRUMENT FINISH PANEL-LEATHER(UPPER&LOWER&DOOR)
81080FLAMP ASSY, REAR DOOR INSIDE HANDLE ILLUMINATION, RH
BEIJING SPEC
BEIJING SPEC&WITH(REAR COOLER)
CHINA(EXCEPT BEIJING) SPEC
CHINA(EXCEPT BEIJING) SPEC&WITH(REAR COOLER)
BEIJING SPEC&INSTRUMENT FINISH PANEL-LEATHER(UPPER&LOWER&DOOR)
CHINA(EXCEPT BEIJING) SPEC&INSTRUMENT FINISH PANEL-LEATHER(UPPER&LOWER&DOOR)
81080GLAMP ASSY, REAR DOOR INSIDE HANDLE ILLUMINATION, LH
CHINA(EXCEPT BEIJING) SPEC
CHINA(EXCEPT BEIJING) SPEC&INSTRUMENT FINISH PANEL-LEATHER(UPPER&LOWER&DOOR)
BEIJING SPEC&INSTRUMENT FINISH PANEL-LEATHER(UPPER&LOWER&DOOR)
BEIJING SPEC
CHINA(EXCEPT BEIJING) SPEC&WITH(REAR COOLER)
BEIJING SPEC&WITH(REAR COOLER)
81080HLAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH
81080JLAMP ASSY, INTERIOR ILLUMINATION, NO.1
81080LLAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH
81080PLAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH
81080SLAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH
81090LAMP ASSY, INTERIOR ILLUMINATION, NO.2
81205CBULB, ASH RECEPTACLE LAMP, REAR RH
81205DBULB, ASH RECEPTACLE LAMP, REAR LH
81206ALAMP SUB-ASSY, CONSOLE BOX
MELLOW WHITE,TRIM01,05,07,08
WITH(REAR POWER SEAT)&MOON ROOF-WITH,MELLOW WHITE,TRIM01,05,07,08
WITH(REAR POWER SEAT)&INTERIOR UPGRADE PACKAGE&MOON ROOF-WITH,MELLOW WHITE,TRIM01,05,07,08
WITH(REAR POWER SEAT)&INTERIOR UPGRADE PACKAGE,MELLOW WHITE,TRIM01,05,07,08
WITH(REAR POWER SEAT),MELLOW WHITE,TRIM01,05,07,08
MELLOW WHITE,TRIM05,07
WITH(REAR POWER SEAT)&INTERIOR UPGRADE PACKAGE,IVORY,TRIM00,02,06
IVORY,TRIM00,02,06
IVORY,TRIM02
WITH(REAR POWER SEAT),IVORY,TRIM00,02,06
WITH(REAR POWER SEAT)&INTERIOR UPGRADE PACKAGE&MOON ROOF-WITH,IVORY,TRIM00,02,06
WITH(REAR POWER SEAT)&MOON ROOF-WITH,IVORY,TRIM00,02,06
LT.GRAY,TRIM1#,2#
WITH(REAR POWER SEAT)&MOON ROOF-WITH,LT.GRAY,TRIM1#,2#
WITH(REAR POWER SEAT)&INTERIOR UPGRADE PACKAGE&MOON ROOF-WITH,LT.GRAY,TRIM1#,2#
WITH(REAR POWER SEAT)&INTERIOR UPGRADE PACKAGE,LT.GRAY,TRIM1#,2#
WITH(REAR POWER SEAT),LT.GRAY,TRIM1#,2#
MELLOW WHITE,TRIM05,07
WITH(REAR POWER SEAT),MELLOW WHITE,TRIM05,07,08
WITH(REAR POWER SEAT)&INTERIOR UPGRADE PACKAGE,MELLOW WHITE,TRIM05,07,08
WITH(REAR POWER SEAT)&INTERIOR UPGRADE PACKAGE&MOON ROOF-WITH,MELLOW WHITE,TRIM05,07,08
WITH(REAR POWER SEAT)&MOON ROOF-WITH,MELLOW WHITE,TRIM05,07,08
MELLOW WHITE,TRIM05,07,08
WITH(REAR POWER SEAT)&MOON ROOF-WITH,IVORY,TRIM02
IVORY,TRIM02
WITH(REAR POWER SEAT),IVORY,TRIM02
WITH(REAR POWER SEAT)&INTERIOR UPGRADE PACKAGE,IVORY,TRIM02
WITH(REAR POWER SEAT)&INTERIOR UPGRADE PACKAGE&MOON ROOF-WITH,IVORY,TRIM02
WITH(REAR POWER SEAT),LT.GRAY,TRIM1#,2#
WITH(REAR POWER SEAT)&MOON ROOF-WITH,LT.GRAY,TRIM1#,2#
WITH(REAR POWER SEAT)&INTERIOR UPGRADE PACKAGE&MOON ROOF-WITH,LT.GRAY,TRIM1#,2#
WITH(REAR POWER SEAT)&INTERIOR UPGRADE PACKAGE,LT.GRAY,TRIM1#,2#
LT.GRAY,TRIM1#,2#
81230LAMP ASSY, COURTESY
CHINA(EXCEPT BEIJING) SPEC&WITH(REAR COOLER)
BEIJING SPEC&INSTRUMENT FINISH PANEL-LEATHER(UPPER&LOWER&DOOR)
CHINA(EXCEPT BEIJING) SPEC&INSTRUMENT FINISH PANEL-LEATHER(UPPER&LOWER&DOOR)
81230ALAMP ASSY, COURTESY, NO.2
81230BBULB(FOR COURTESY LAMP)
12V 5W
81230CBULB(FOR COURTESY LAMP NO.2)
12V 3.8W
81231ALENS, COURTESY LAMP, NO.2
81250CBULB, SPOT LAMP
12V 8W
81251ALENS, SPOT LAMP
WITH(REAR POWER SEAT)&INTERIOR UPGRADE PACKAGE
WITH(REAR POWER SEAT)
WITH(REAR POWER SEAT)&MOON ROOF-WITH
WITH(REAR POWER SEAT)&INTERIOR UPGRADE PACKAGE&MOON ROOF-WITH
81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81330BBULB, LUGGAGE COMPARTMENT LAMP
12V 3.8W
81331LENS, LUGGAGE COMPARTMENT LAMP
81340LAMP ASSY, VANITY
BEIJING SPEC&INTERIOR PACKAGE&MOON ROOF-WITH,IVORY,TRIM00
BEIJING SPEC&INTERIOR PACKAGE&MOON ROOF-WITH&W(REAR DISPLAY),IVORY,TRIM00
BEIJING SPEC&MOON ROOF-WITH,IVORY,TRIM00
BEIJING SPEC&MOON ROOF-WITH&W(REAR DISPLAY),IVORY,TRIM00
CHINA(EXCEPT BEIJING) SPEC,IVORY,TRIM00
CHINA(EXCEPT BEIJING) SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&W(REAR DISPLAY & REAR DVD PLAYER),IVORY,TRIM00
CHINA(EXCEPT BEIJING) SPEC&INTERIOR PACKAGE&MOON ROOF-WITH,IVORY,TRIM00
CHINA(EXCEPT BEIJING) SPEC&INTERIOR PACKAGE&MOON ROOF-WITH&W(REAR DISPLAY),IVORY,TRIM00
CHINA(EXCEPT BEIJING) SPEC&MOON ROOF-WITH,IVORY,TRIM00
CHINA(EXCEPT BEIJING) SPEC&MOON ROOF-WITH&W(REAR DISPLAY),IVORY,TRIM00
IVORY,TRIM00
BEIJING SPEC,IVORY,TRIM00
BEIJING SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&W(REAR DISPLAY & REARDVD PLAYER),IVORY,TRIM00
BEIJING SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),IVORY,TRIM00
BEIJING SPEC&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),IVORY,TRIM00
BEIJING SPEC&MOON ROOF-WITH&WITH(REAR COOLER),IVORY,TRIM00
CHINA(EXCEPT BEIJING) SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),IVORY,TRIM00
CHINA(EXCEPT BEIJING) SPEC&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),IVORY,TRIM00
CHINA(EXCEPT BEIJING) SPEC&MOON ROOF-WITH&WITH(REAR COOLER),IVORY,TRIM00
WITH(REAR POWER SEAT)&INTERIOR PACKAGE&PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&MOON ROOF-WITH,IVORY,TRIM00
WITH(REAR POWER SEAT)&PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&MOON ROOF-WITH,IVORY,TRIM00
PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&MOON ROOF-WITH,IVORY,TRIM00
BEIJING SPEC&INTERIOR PACKAGE&MOON ROOF-WITH,MELLOW WHITE,TRIM01,05
MELLOW WHITE,TRIM01,05
BEIJING SPEC,MELLOW WHITE,TRIM01,05
BEIJING SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),MELLOW WHITE,TRIM01,05
BEIJING SPEC&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),MELLOW WHITE,TRIM01,05
BEIJING SPEC&MOON ROOF-WITH,MELLOW WHITE,TRIM01,05
BEIJING SPEC&MOON ROOF-WITH&WITH(REAR COOLER),MELLOW WHITE,TRIM01,05
CHINA(EXCEPT BEIJING) SPEC,MELLOW WHITE,TRIM01,05
CHINA(EXCEPT BEIJING) SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),MELLOW WHITE,TRIM01,05
CHINA(EXCEPT BEIJING) SPEC&INTERIOR PACKAGE&MOON ROOF-WITH,MELLOW WHITE,TRIM01,05
CHINA(EXCEPT BEIJING) SPEC&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),MELLOW WHITE,TRIM01,05
CHINA(EXCEPT BEIJING) SPEC&MOON ROOF-WITH,MELLOW WHITE,TRIM01,05
CHINA(EXCEPT BEIJING) SPEC&MOON ROOF-WITH&WITH(REAR COOLER),MELLOW WHITE,TRIM01,05
WITH(REAR POWER SEAT)&INTERIOR PACKAGE&PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&MOON ROOF-WITH,MELLOW WHITE,TRIM01,05
WITH(REAR POWER SEAT)&PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&MOON ROOF-WITH,MELLOW WHITE,TRIM01,05
PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&MOON ROOF-WITH,MELLOW WHITE,TRIM01,05
BEIJING SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&W(REAR DISPLAY & REARDVD PLAYER),MELLOW WHITE,TRIM01,05
BEIJING SPEC&INTERIOR PACKAGE&MOON ROOF-WITH&W(REAR DISPLAY),MELLOW WHITE,TRIM01,05
BEIJING SPEC&MOON ROOF-WITH&W(REAR DISPLAY),MELLOW WHITE,TRIM01,05
CHINA(EXCEPT BEIJING) SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&W(REAR DISPLAY & REAR DVD PLAYER),MELLOW WHITE,TRIM01,05
CHINA(EXCEPT BEIJING) SPEC&INTERIOR PACKAGE&MOON ROOF-WITH&W(REAR DISPLAY),MELLOWWHITE,TRIM01,05
CHINA(EXCEPT BEIJING) SPEC&MOON ROOF-WITH&W(REAR DISPLAY),MELLOW WHITE,TRIM01,05
MELLOW WHITE,TRIM01,05,07,08
MELLOW WHITE,TRIM05,07
BEIJING SPEC&WITH(OTTOMAN:5 SEAT)&INTERIOR UPGRADE PACKAGE&PRE-COLLISION SYSTEM-WITH(*MRT & *PB & *PSB),MELLOW WHITE,TRIM01,05,07,08
CHINA(EXCEPT BEIJING) SPEC&WITH(OTTOMAN:5 SEAT)&INTERIOR UPGRADE PACKAGE&PRE-COLLISION SYSTEM-WITH(*MRT & *PB & *PSB),MELLOW WHITE,TRIM01,05,07,08
IVORY,TRIM02
BEIJING SPEC&MOON ROOF-WITH,LT.GRAY,TRIM1#,2#
BEIJING SPEC&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),LT.GRAY,TRIM1#,2#
BEIJING SPEC&INTERIOR PACKAGE&MOON ROOF-WITH,LT.GRAY,TRIM1#,2#
BEIJING SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),LT.GRAY,TRIM1#,2#
BEIJING SPEC,LT.GRAY,TRIM1#,2#
LT.GRAY,TRIM1#,2#
PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&MOON ROOF-WITH,LT.GRAY,TRIM1#,2#
WITH(REAR POWER SEAT)&PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&MOON ROOF-WITH,LT.GRAY,TRIM1#,2#
WITH(REAR POWER SEAT)&INTERIOR PACKAGE&PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&MOON ROOF-WITH,LT.GRAY,TRIM1#,2#
CHINA(EXCEPT BEIJING) SPEC&MOON ROOF-WITH&WITH(REAR COOLER),LT.GRAY,TRIM1#,2#
CHINA(EXCEPT BEIJING) SPEC&MOON ROOF-WITH,LT.GRAY,TRIM1#,2#
CHINA(EXCEPT BEIJING) SPEC&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),LT.GRAY,TRIM1#,2#
CHINA(EXCEPT BEIJING) SPEC&INTERIOR PACKAGE&MOON ROOF-WITH,LT.GRAY,TRIM1#,2#
CHINA(EXCEPT BEIJING) SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),LT.GRAY,TRIM1#,2#
CHINA(EXCEPT BEIJING) SPEC,LT.GRAY,TRIM1#,2#
BEIJING SPEC&MOON ROOF-WITH&WITH(REAR COOLER),LT.GRAY,TRIM1#,2#
CHINA(EXCEPT BEIJING) SPEC&INTERIOR PACKAGE&MOON ROOF-WITH&W(REAR DISPLAY),LT.GRAY,TRIM10,12,2#
CHINA(EXCEPT BEIJING) SPEC&MOON ROOF-WITH,LT.GRAY,TRIM10,12,2#
CHINA(EXCEPT BEIJING) SPEC&MOON ROOF-WITH&W(REAR DISPLAY),LT.GRAY,TRIM10,12,2#
LT.GRAY,TRIM10,12,2#
BEIJING SPEC,LT.GRAY,TRIM10,12,2#
BEIJING SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&W(REAR DISPLAY & REARDVD PLAYER),LT.GRAY,TRIM10,12,2#
BEIJING SPEC&INTERIOR PACKAGE&MOON ROOF-WITH,LT.GRAY,TRIM10,12,2#
BEIJING SPEC&INTERIOR PACKAGE&MOON ROOF-WITH&W(REAR DISPLAY),LT.GRAY,TRIM10,12,2#
BEIJING SPEC&MOON ROOF-WITH,LT.GRAY,TRIM10,12,2#
BEIJING SPEC&MOON ROOF-WITH&W(REAR DISPLAY),LT.GRAY,TRIM10,12,2#
CHINA(EXCEPT BEIJING) SPEC,LT.GRAY,TRIM10,12,2#
CHINA(EXCEPT BEIJING) SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&W(REAR DISPLAY & REAR DVD PLAYER),LT.GRAY,TRIM10,12,2#
CHINA(EXCEPT BEIJING) SPEC&INTERIOR PACKAGE&MOON ROOF-WITH,LT.GRAY,TRIM10,12,2#
BEIJING SPEC&WITH(OTTOMAN:5 SEAT)&INTERIOR UPGRADE PACKAGE&PRE-COLLISION SYSTEM-WITH(*MRT & *PB & *PSB),LT.GRAY,TRIM1#,2#
CHINA(EXCEPT BEIJING) SPEC&WITH(OTTOMAN:5 SEAT)&INTERIOR UPGRADE PACKAGE&PRE-COLLISION SYSTEM-WITH(*MRT & *PB & *PSB),LT.GRAY,TRIM1#,2#
81340ALAMP ASSY, REAR VANITY
MELLOW WHITE,TRIM01,05,07,08
MOON ROOF-WITH,MELLOW WHITE,TRIM01,05
MELLOW WHITE,TRIM01,05
MELLOW WHITE,TRIM05,07
MOON ROOF-WITH,IVORY,TRIM00
IVORY,TRIM00
IVORY,TRIM02
LT.GRAY,TRIM10,12,2#
LT.GRAY,TRIM1#,2#
MOON ROOF-WITH,LT.GRAY,TRIM1#,2#
MOON ROOF-WITH,LT.GRAY,TRIM10,12,2#
MELLOW WHITE,TRIM01,05
IVORY,TRIM00
LT.GRAY,TRIM1#,2#
LT.GRAY,TRIM10,12,2#
81340BBULB (FOR VANITY LAMP)
12V 8W
81340CBULB (FOR REAR VANITY LAMP)
81360TLAMP ASSY, SPOT
IVORY,TRIM00
MELLOW WHITE,TRIM01,05
LT.GRAY,TRIM1#,2#
LT.GRAY,TRIM10,12,2#
MOON ROOF-WITH,MELLOW WHITE,TRIM01,05,07,08
MELLOW WHITE,TRIM01,05,07,08
IVORY,TRIM02
MOON ROOF-WITH,IVORY,TRIM02
LT.GRAY,TRIM1#,2#
MOON ROOF-WITH,LT.GRAY,TRIM1#,2#
8202
9016840048
9016840116
9018904217

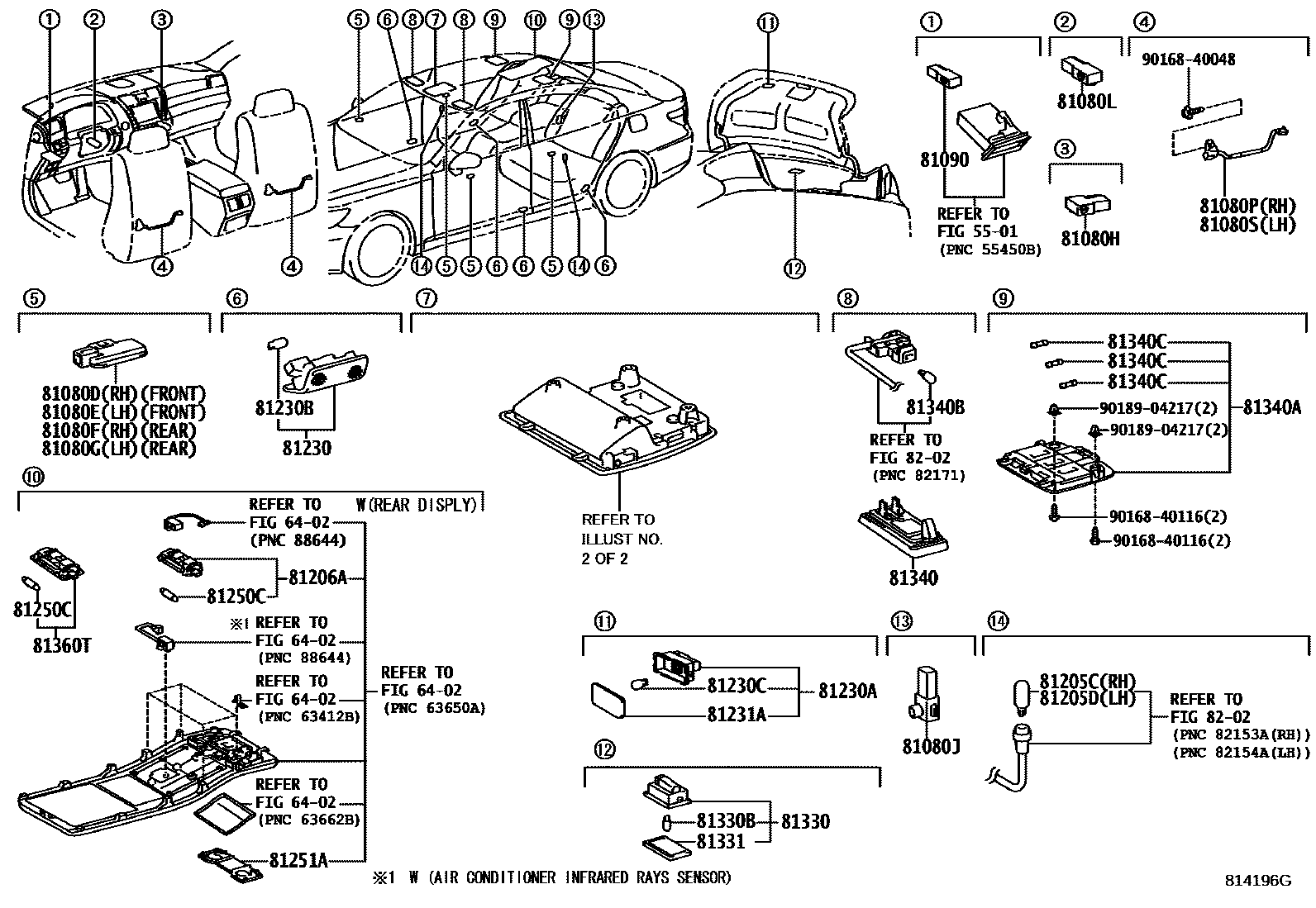

34 parts on this diagram · 5 diagrams in section
