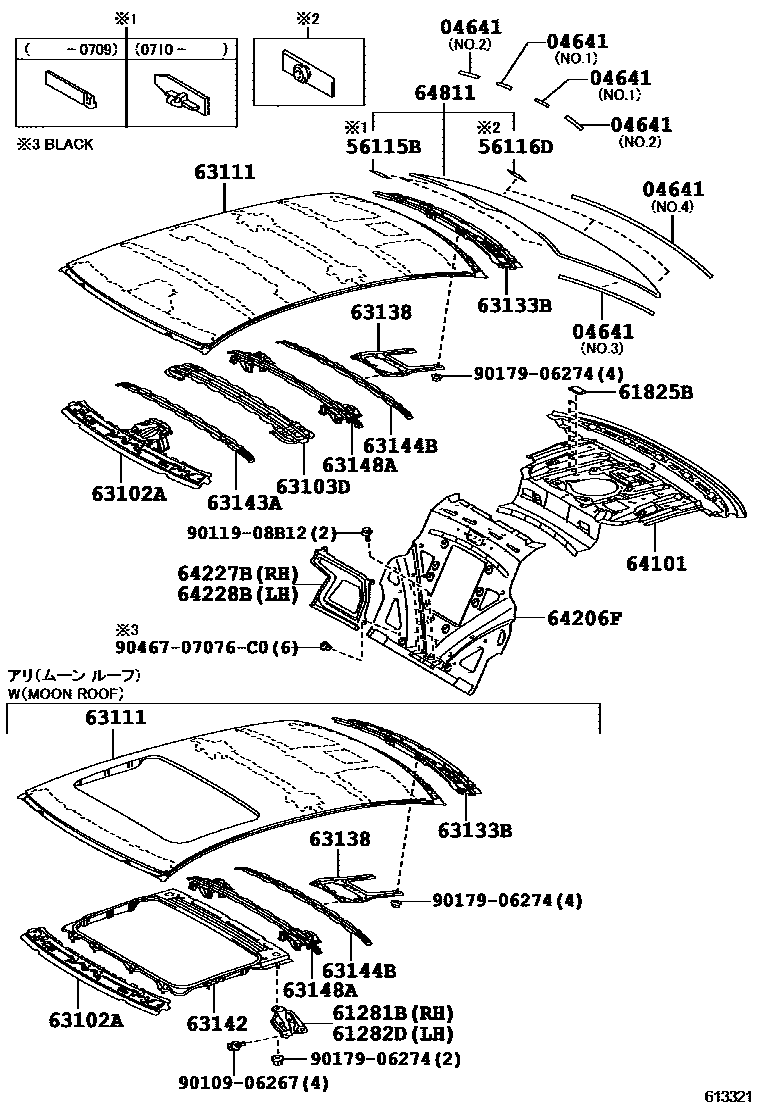

ROOF PANEL & BACK WINDOW GLASS

0001 1ROOF PANEL 0002 1ROOF PANEL 0003 1SLIDING ROOF

04641DAM KIT, BACK WINDOW GLASS

main56118-50050×2iUVF4#200911

NO.3

sub56117-74010

main56118-50060iUVF4#200809-200911

NO.4

sub56117-50140

main75573-50040×2iUVF4#200809-200911

NO.1

main75573-50050iUVF4#200809-200911

NO.2 RH

main75573-50060iUVF4#200911

NO.2 LH

56115BSTOPPER, BACK WINDOW GLASS, NO.1

main56115-30100×2iUVF4#200704-200709

main56115-50070×2iUVF4#200809-200811

main56115-50100×2iUVF4#200911

56116DSTOPPER, BACK WINDOW GLASS, NO.2

main56116-50030iUVF4#200811-200911

61281BBRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.1

main61281-50060iUVF45;UVF46..LHD200809-200911

MOON ROOF-WITH

sub61281-50061

sub90105-06049

61282DBRACKET, SLIDING ROOF HOUSUNG SIDE MOUNTING, NO.2

main61282-50020iUVF45;UVF46..LHD200809-200911

MOON ROOF-WITH

sub61282-50021

sub90105-06049

61825BPLATE, NOISE CONTROL, NO.2

main61825-22050×2iUVF4#200809-200911

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-50902supersedes 63102-50903iUVF45;UVF46..LHD200809-200911

MOON ROOF-WITH

63103DREINFORCEMENT SUB-ASSY, ROOF PANEL, NO.3

main63103-50020iUVF4#200704-200804

main63103-50021iUVF4#200805-200809

63111PANEL, ROOF

main63111-50100supersedes 63111-50090iUVF46200911

main63111-50080supersedes 63111-50070iUVF45200704-200809

MOON ROOF-WITH

main63111-50130supersedes 63111-50090iUVF46..LHD..EUR200911

MAYDAY SYSTEM-WITH(G-BOOK)

63133BFRAME, BACK WINDOW

main63133-50040iUVF4#200704-200809

main63133-50070iUVF4#200911

63138BRACKET, DOME LAMP, NO.2

main63138-50010iUVF4#200704-200805

sub90189-04059

main63138-50011iUVF4#200805-200809

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-50040iUVF45;UVF46..LHD200809-200911

MOON ROOF-WITH

63143AREINFORCEMENT, ROOF PANEL

main63143-50040iUVF4#200704-200809

63144BREINFORCEMENT, ROOF PANEL, NO.4

main63144-50030iUVF4#200704-200809

63148AREINFORCEMENT, ROOF PANEL, NO.7

main63148-50040supersedes 63104-50020iUVF45;UVF46..LHD200809-200911

MOON ROOF-WITH

64101PANEL SUB-ASSY, UPPER BACK

main64101-50200iUVF4#200704-200809

main64101-50240iUVF4#200911

64206FPANEL SUB-ASSY, ROOM PARTITION

main64206-50050iUVF4#200704-200809

main64206-50070iUVF4#200911-201110

main64206-50071iUVF4#201111

64227BEXTENSION, CENTER FLOOR TO BLACE, NO.1

main64227-50050iUVF4#200704-200809

64228BEXTENSION, CENTER FLOOR TO BRACE, NO.2

main64228-50050iUVF4#200704-200809

64811GLASS, BACK WINDOW

main64810-50912iUVF4#200704-200710

*UVCEHT,T=5.0,GREEN

main64810-50916iUVF4#200710-200806

*UVCT,T=5.0,GREEN

main64810-50917iUVF4#200809-200911

*UVCEHT,T=5.0,GREEN

main64810-50925iUVF4#200911

*UVCEHT,T=5.0,GREEN

main64810-50911iUVF46..RHD200704-200710

*UVCEHT,T=5.0,GREEN,NEW ZEALAND SPEC

main64810-50915iUVF46..RHD200809-200911

*UVCEHT,T=5.0,GREEN,NEW ZEALAND SPEC

main64810-50924iUVF46..RHD200911

*UVCEHT,T=5.0,GREEN,SOUTH AMERICA SPEC

9010906267

main90109-06267

9011908B12

main90119-08B12

9017906274

main90179-06274

9046707076C0

main90467-07076C0

24 parts on this diagram · 3 diagrams in section
