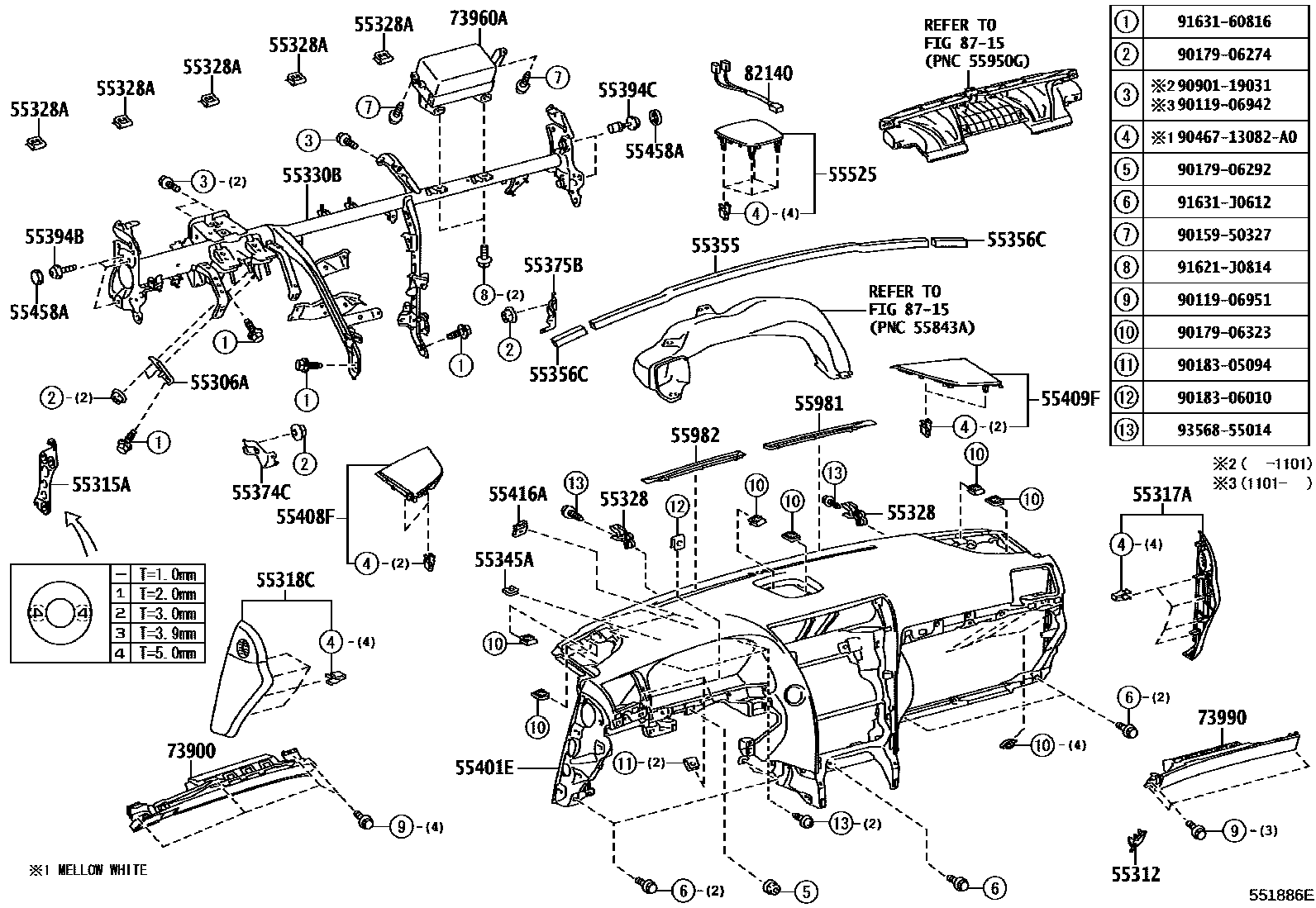

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1LEATHER-INSTRUMENT PANEL 0003 1DRIVER SIDE 0004 1DRIVER SIDE 0005 1CENTER 0006 1CENTER 0007 1PASSENGER SIDE 0008 1PASSENGER SIDE 0009 1 0010 1LEATHER-INSTRUMENT PANEL 0011 1DRIVER SIDE 0012 1DRIVER SIDE 0013 1CENTER 0014 1CENTER 0015 1PASSENGER SIDE 0016 1PASSENGER SIDE

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-50200iUVF4#..LHD200704-201209

main55306-50210iUVF4#..RHD200704-201209

55312PANEL, INSTRUMENT, LOWER

main55312-50070-A0iUVF4#..LHD200704-200911

IVORY,TRIM00

sub55312-50070

main55312-50070-A1iUVF4#..LHD200704-200809

MELLOW WHITE,TRIM01,05

sub55312-50070

main55312-50070-A1iUVF4#..LHD200809-200911

MELLOW WHITE,TRIM01

sub55312-50070

main55312-50070-A1iUVF4#..LHD200911-201209

MELLOW WHITE,TRIM07

sub55312-50070

main55312-50070-A3iUVF4#..LHD200911-201209

WATER WHITE,TRIM1#

sub55312-50070

main55312-50070-B0iUVF4#..LHD200809-200911

LT.GRAY,TRIM10

sub55312-50070

main55312-50070-B0iUVF4#..LHD200704-200809

LT.GRAY,TRIM1#

sub55312-50070

main55312-50070-C0iUVF4#..LHD..EUR200911-201209

BLACK,TRIM02,05,2#

sub55312-50070

main55312-50070-C0iUVF46..GCC200911-201209

BLACK,TRIM00,02,05,06,08,2#

sub55312-50070

main55312-50070-C0iUVF4#..LHD200809-200911

BLACK,TRIM05,12,2#

sub55312-50070

main55312-50070-C0iUVF4#..LHD200704-200809

BLACK,TRIM05,2#

sub55312-50070

main55312-50080-A0iUVF4#..RHD200704-200911

IVORY,TRIM00

sub55312-50080

main55312-50080-A1iUVF4#..RHD200704-200809

MELLOW WHITE,TRIM01,05

sub55312-50080

main55312-50080-A1iUVF4#..RHD200809-200911

MELLOW WHITE,TRIM01

sub55312-50080

main55312-50080-A1iUVF4#..RHD200911-201209

MELLOW WHITE,TRIM07

sub55312-50080

main55312-50080-A3iUVF4#..RHD200911-201209

WATER WHITE,TRIM1#

sub55312-50080

main55312-50080-B0iUVF4#..RHD200809-200911

LT.GRAY,TRIM10

sub55312-50080

main55312-50080-B0iUVF4#..RHD200704-200809

LT.GRAY,TRIM1#

sub55312-50080

main55312-50080-C0iUVF4#..RHD200704-200809

BLACK,TRIM05,2#

sub55312-50080

main55312-50080-C0iUVF4#..RHD200911-201209

BLACK,TRIM00,02,05,06,08,2#

sub55312-50080

main55312-50080-C0iUVF4#..RHD200809-200911

BLACK,TRIM05,12,2#

sub55312-50080

55315ASPACER, INSTRUMENT PANEL, NO.1

main62221-50020iUVF4#..LHD200704-200911

T=1.0

main62221-50030iUVF4#..LHD200704-200911

T=2.0

main62221-50040iUVF4#..LHD200704-200911

T=3.0

main62221-50050iUVF4#..LHD200704-200911

T=3.9

main62221-50060iUVF4#..LHD200704-200911

T=5.0

main62231-50010iUVF4#..RHD200704-200911

T=1.0

main62231-50020iUVF4#..RHD200704-200911

T=2.0

main62231-50030iUVF4#..RHD200704-200911

T=3.0

main62231-50040iUVF4#..RHD200704-200911

T=3.9

main62231-50050iUVF4#..RHD200704-200911

T=5.0

55317APANEL, INSTRUMENT SIDE, RH

main55317-50040-C0iUVF4#..RHD200704-200809

LT.GRAY,TRIM1#

sub55317-50900

main55317-50040-C0iUVF4#..RHD200809-200911

LT.GRAY,TRIM10

sub55317-50900

main55317-50040-C1iUVF4#..RHD200809-200911

BLACK,TRIM05,12,2#

sub55317-50900

main55317-50040-C1iUVF4#..RHD200911-201209

BLACK,TRIM00,02,05,06,08,2#

sub55317-50900

main55317-50040-C1iUVF4#..RHD200704-200809

BLACK,TRIM05,2#

sub55317-50900

main55317-50040-C3iUVF4#..RHD200911-201209

WATER WHITE,TRIM1#

sub55317-50900

main55317-50040-E0iUVF4#..RHD200704-200911

IVORY,TRIM00

sub55317-50900

main55317-50040-E1iUVF4#..RHD200704-200911

MELLOW WHITE,TRIM01

sub55317-50900

main55317-50040-E1iUVF4#..RHD200911-201209

MELLOW WHITE,TRIM07

sub55317-50900

main55317-50050-C0iUVF4#..LHD200704-200809

LT.GRAY,TRIM1#

sub55317-50901

main55317-50050-C0iUVF4#..LHD200809-200911

LT.GRAY,TRIM10

sub55317-50901

main55317-50050-C1iUVF46..GCC200911-201209

BLACK,TRIM00,02,05,06,08,2#

sub55317-50901

main55317-50050-C1iUVF4#..LHD..EUR200911-201209

BLACK,TRIM02,05,2#

sub55317-50901

main55317-50050-C1iUVF4#..LHD200809-200911

BLACK,TRIM05,12,2#

sub55317-50901

main55317-50050-C1iUVF4#..LHD200704-200809

BLACK,TRIM05,2#

sub55317-50901

main55317-50050-C3iUVF4#..LHD200911-201209

WATER WHITE,TRIM1#

sub55317-50901

main55317-50050-E0iUVF4#..LHD200704-200911

IVORY,TRIM00

sub55317-50901

main55317-50050-E1iUVF4#..LHD200704-200911

MELLOW WHITE,TRIM01

sub55317-50901

main55317-50050-E1iUVF4#..LHD200911-201209

MELLOW WHITE,TRIM07

sub55317-50901

55318CPANEL, INSTRUMENT SIDE, LH

main55318-50040-C0iUVF4#..LHD200809-200911

LT.GRAY,TRIM10

sub55318-50900

main55318-50040-C0iUVF4#..LHD200704-200809

LT.GRAY,TRIM1#

sub55318-50900

main55318-50040-C1iUVF4#..LHD..EUR200911-201209

BLACK,TRIM02,05,2#

sub55318-50900

main55318-50040-C1iUVF4#..LHD..EUR200911-201209

BLACK,TRIM00,02,05,06,08,2#

sub55318-50900

main55318-50040-C1iUVF4#..LHD200809-200911

BLACK,TRIM05,12,2#

sub55318-50900

main55318-50040-C1iUVF4#..LHD200704-200809

BLACK,TRIM05,2#

sub55318-50900

main55318-50040-C3iUVF4#..LHD200911-201209

WATER WHITE,TRIM1#

sub55318-50900

main55318-50040-E0iUVF4#..LHD200704-200911

IVORY,TRIM00

sub55318-50900

main55318-50040-E1iUVF4#..LHD200704-200911

MELLOW WHITE,TRIM01

sub55318-50900

main55318-50040-E1iUVF4#..LHD200911-201209

MELLOW WHITE,TRIM07

sub55318-50900

main55318-50050-C0iUVF4#..RHD200704-200809

LT.GRAY,TRIM1#

sub55318-50901

main55318-50050-C0iUVF4#..RHD200809-200911

LT.GRAY,TRIM10

sub55318-50901

main55318-50050-C1iUVF4#..RHD200911-201209

BLACK,TRIM00,02,05,06,08,2#

sub55318-50901

main55318-50050-C1iUVF4#..RHD200704-200809

BLACK,TRIM05,2#

sub55318-50901

main55318-50050-C1iUVF4#..RHD200809-200911

BLACK,TRIM05,12,2#

sub55318-50901

main55318-50050-C3iUVF4#..RHD200911-201209

WATER WHITE,TRIM1#

sub55318-50901

main55318-50050-E0iUVF4#..RHD200704-200911

IVORY,TRIM00

sub55318-50901

main55318-50050-E1iUVF4#..RHD200704-200911

MELLOW WHITE,TRIM01

sub55318-50901

main55318-50050-E1iUVF4#..RHD200911-201209

MELLOW WHITE,TRIM07

sub55318-50901

55328PIN, INSTRUMENT PANEL, NO.1

main55328-50160iUVF4#200704-201209

main55328-50160iUVF4#..RHD200812-200902

INSTRUMENT FINISH PANEL-LEATHER(UPPER&LOWER&DOOR)

55328ASTAY, INSTRUMENT PANEL, NO.3

main55328-30160iUVF4#200704-200705

sub55328-50170

main55328-33120iUVF4#200706-200707

sub55328-50170

main55328-48110iUVF4#201010-201209

main55328-50170iUVF4#200707-201009

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-50220iUVF4#..LHD200704-200911

main55330-50230iUVF4#..RHD200704-200911

55345ACLIP, INSTRUMENT PANEL, NO.1

main55345-12060iUVF4#200704-201209

main55345-12060iUVF4#..RHD200812-200902

INSTRUMENT FINISH PANEL-LEATHER(UPPER&LOWER&DOOR)

55355CUSHION, INSTRUMENT PANEL, NO.1

main55355-50080iUVF4#200704-200911

55356CCUSHION, INSTRUMENT PANEL, NO.2

main55356-50020iUVF4#200704-200911

55374CBRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.1

main55374-50090iUVF4#..LHD200704-200911

main55374-50100iUVF4#..RHD200704-200911

55375BBRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.2

main55375-50100iUVF4#..LHD200704-200911

main55375-50110iUVF4#..RHD200704-200911

55394BBOLT, INSTRUMENT PANEL

main55394-50010iUVF4#200704-200911

55394CBOLT, INSTRUMENT PANEL

main55394-33041iUVF4#200710-200911

main55394-51011iUVF4#200704-200709

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-50140-C3iUVF4#..LHD200809-200911

INSTRUMENT FINISH PANEL-LEATHER(UPPER&LOWER&DOOR),BLACK,TRIM05,12,2#

sub55401-50150

main55401-50140-C3iUVF4#..LHD200802-200809

INSTRUMENT FINISH PANEL-LEATHER(UPPER & LOWER),BLACK,TRIM05,2#

sub55401-50150

main55401-50140-C3iUVF4#..LHD200704-200802

INTERIOR PACKAGE,BLACK,TRIM05,2#

sub55401-50150

main55401-50140-C4iUVF4#..LHD200704-200802

INTERIOR PACKAGE,BLACK,TRIM1#

sub55401-50150

main55401-50140-C4iUVF4#..LHD200809-200911

INSTRUMENT FINISH PANEL-LEATHER(UPPER&LOWER&DOOR),BLACK,TRIM10

sub55401-50150

main55401-50140-C4iUVF4#..LHD200802-200809

INSTRUMENT FINISH PANEL-LEATHER(UPPER & LOWER),BLACK,TRIM1#

sub55401-50150

main55401-50140-E2iUVF4#..LHD200704-200802

INTERIOR PACKAGE,ORCHID BROWN,TRIM00

sub55401-50150

main55401-50140-E2iUVF4#..LHD200802-200809

INSTRUMENT FINISH PANEL-LEATHER(UPPER & LOWER),ORCHID BROWN,TRIM00

sub55401-50150

main55401-50140-E2iUVF4#..LHD200809-200911

INSTRUMENT FINISH PANEL-LEATHER(UPPER&LOWER&DOOR),ORCHID BROWN,TRIM00

sub55401-50150

main55401-50140-E3iUVF4#..LHD200809-200911

INSTRUMENT FINISH PANEL-LEATHER(UPPER&LOWER&DOOR),ORCHID BROWN,TRIM01

sub55401-50150

main55401-50140-E3iUVF4#..LHD200704-200802

INTERIOR PACKAGE,ORCHID BROWN,TRIM01

sub55401-50150

main55401-50140-E3iUVF4#..LHD200802-200809

INSTRUMENT FINISH PANEL-LEATHER(UPPER & LOWER),ORCHID BROWN,TRIM01

sub55401-50150

main55401-50150-C0iUVF4#..LHD..EUR200911-201205

INSTRUMENT FINISH PANEL-LEATHER(UPPER&LOWER&DOOR),BLACK/WATER WHITE,TRIM1#

sub55401-50151

sub55401-50150

main55401-50150-C1iUVF4#..LHD..EUR200911-201205

INSTRUMENT FINISH PANEL-LEATHER(UPPER&LOWER&DOOR),BLACK,TRIM00,02,05,06,08,2#

sub55401-50151

sub55401-50150

main55401-50150-C8iUVF4#..LHD..EUR201205-201209

INSTRUMENT FINISH PANEL-LEATHER(UPPER&LOWER&DOOR),BLACK/WATER WHITE,TRIM1#

sub55401-50151

sub55401-50150

main55401-50150-C9iUVF4#..LHD..EUR201205-201209

INSTRUMENT FINISH PANEL-LEATHER(UPPER&LOWER&DOOR),BLACK/BLACK,TRIM02,05,08,2#

sub55401-50151

sub55401-50150

main55401-50150-E0iUVF4#..LHD..EUR200911-201205

INSTRUMENT FINISH PANEL-LEATHER(UPPER&LOWER&DOOR),ORCHID BROWN/MELLOW WHITE,TRIM01,07

sub55401-50151

sub55401-50150

main55401-50150-E2iUVF4#..LHD..EUR201205-201209

INSTRUMENT FINISH PANEL-LEATHER(UPPER&LOWER&DOOR),ORCHID BROWN/MELLOW WHITE,TRIM07

sub55401-50151

sub55401-50150

main55401-50160-C3iUVF4#..RHD200704-200802

INTERIOR PACKAGE,BLACK,TRIM05,2#

sub55401-50260

main55401-50160-C4iUVF4#..RHD200704-200802

INTERIOR PACKAGE,BLACK,TRIM1#

sub55401-50260

main55401-50160-E2iUVF4#..RHD200704-200802

INTERIOR PACKAGE,ORCHID BROWN,TRIM00

sub55401-50260

main55401-50160-E3iUVF4#..RHD200704-200802

INTERIOR PACKAGE,ORCHID BROWN,TRIM01

sub55401-50260

main55401-50210-C3iUVF4#..RHD200809-200911

INSTRUMENT FINISH PANEL-LEATHER(UPPER&LOWER&DOOR),BLACK,TRIM05,12,2#

sub55401-50260

main55401-50210-C3iUVF4#..RHD200802-200809

INSTRUMENT FINISH PANEL-LEATHER(UPPER & LOWER),BLACK,TRIM05,2#

sub55401-50260

main55401-50210-C4iUVF4#..RHD200802-200809

INSTRUMENT FINISH PANEL-LEATHER(UPPER & LOWER),BLACK,TRIM1#

sub55401-50260

main55401-50210-C4iUVF4#..RHD200809-200911

INSTRUMENT FINISH PANEL-LEATHER(UPPER&LOWER&DOOR),BLACK,TRIM10

sub55401-50260

main55401-50210-E2iUVF4#..RHD200802-200809

INSTRUMENT FINISH PANEL-LEATHER(UPPER & LOWER),ORCHID BROWN,TRIM00

sub55401-50260

main55401-50210-E2iUVF4#..RHD200809-200911

INSTRUMENT FINISH PANEL-LEATHER(UPPER&LOWER&DOOR),ORCHID BROWN,TRIM00

sub55401-50260

main55401-50210-E3iUVF4#..RHD200809-200911

INSTRUMENT FINISH PANEL-LEATHER(UPPER&LOWER&DOOR),ORCHID BROWN,TRIM01

sub55401-50260

main55401-50210-E3iUVF4#..RHD200802-200809

INSTRUMENT FINISH PANEL-LEATHER(UPPER & LOWER),ORCHID BROWN,TRIM01

sub55401-50260

main55401-50270-C0iUVF4#..RHD200911-201205

INSTRUMENT FINISH PANEL-LEATHER(UPPER&LOWER&DOOR),BLACK/WATER WHITE,TRIM1#

sub55401-50270

main55401-50270-C1iUVF4#..RHD200911-201205

INSTRUMENT FINISH PANEL-LEATHER(UPPER&LOWER&DOOR),BLACK,TRIM00,02,05,06,08,2#

sub55401-50270

main55401-50270-C7iUVF4#..RHD201205-201209

INSTRUMENT FINISH PANEL-LEATHER(UPPER&LOWER&DOOR),BLACK/WATER WHITE,TRIM1#

sub55401-50270

main55401-50270-C8iUVF4#..RHD201205-201209

INSTRUMENT FINISH PANEL-LEATHER(UPPER&LOWER&DOOR),BLACK/BLACK,TRIM02,05,08,2#

sub55401-50270

main55401-50270-E0iUVF4#..RHD200911-201205

INSTRUMENT FINISH PANEL-LEATHER(UPPER&LOWER&DOOR),ORCHID BROWN/MELLOW WHITE,TRIM01,07

sub55401-50270

main55401-50270-E2iUVF4#..RHD201205-201209

INSTRUMENT FINISH PANEL-LEATHER(UPPER&LOWER&DOOR),ORCHID BROWN/MELLOW WHITE,TRIM07

sub55401-50270

main55401-50909-C1iUVF4#..LHD200704-200809

BLACK,TRIM1#

sub55401-50914

main55401-50909-C1iUVF4#..LHD200809-200911

BLACK/LT.GRAY,TRIM10

sub55401-50914

main55401-50909-C2iUVF4#..LHD200809-200911

BLACK/BLACK,TRIM05,12,2#

sub55401-50914

main55401-50909-C2iUVF4#..LHD200704-200809

BLACK,TRIM05,2#

sub55401-50914

main55401-50909-C2iUVF4#..LHD200911-201209

BLACK/BLACK,TRIM0#,2#

sub55401-50914

main55401-50909-C6iUVF4#..LHD200911-201209

WATER WHITE,TRIM1#

sub55401-50914

main55401-50909-E2iUVF4#..LHD200704-200911

ORCHID BROWN,TRIM00

sub55401-50914

main55401-50909-E3iUVF4#..LHD200809-200911

ORCHID BROWN/MELLOW WHITE,TRIM01

sub55401-50914

main55401-50909-E3iUVF4#..LHD200704-200809

ORCHID BROWN,TRIM01

sub55401-50914

main55401-50910-C2iUVF4#..RHD200704-200809

BLACK,TRIM1#

main55401-50910-C2iUVF4#..RHD200809-200911

BLACK/LT.GRAY,TRIM10,12

main55401-50910-C3iUVF4#..RHD200911-201209

BLACK/BLACK,TRIM00,02,05,06,08,2#

main55401-50910-C3iUVF4#..RHD200704-200809

BLACK,TRIM05,2#

main55401-50910-C3iUVF4#..RHD200809-200911

BLACK/BLACK,TRIM05,12,2#

main55401-50910-C5iUVF4#..RHD200911-201209

WATER WHITE,TRIM1#

main55401-50910-E2iUVF4#..RHD200704-200911

ORCHID BROWN,TRIM00

main55401-50910-E3iUVF4#..RHD200809-200911

ORCHID BROWN/MELLOW WHITE,TRIM01

main55401-50910-E3iUVF4#..RHD200911-201209

ORCHID BROWN/MELLOW WHITE,TRIM07

main55401-50910-E3iUVF4#..RHD200704-200809

ORCHID BROWN,TRIM01

55408FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1

main55408-50110-C0iUVF4#..LHD..EUR200911-201209

BLACK,TRIM00,02,05,06,08,1#,2#

sub55408-50150

main55408-50110-C0iUVF4#..LHD200704-200911

BLACK,TRIM05,1#,2#

sub55408-50150

main55408-50110-C0iUVF4#..LHD..EUR200911-201209

BLACK,TRIM02,05,1#,2#

sub55408-50150

main55408-50110-E0iUVF4#..LHD200704-200911

ORCHID BROWN,TRIM00,01

sub55408-50150

main55408-50110-E0iUVF4#..LHD200911-201209

ORCHID BROWN,TRIM07

sub55408-50150

main55408-50120-C0iUVF4#..RHD200911-201209

BLACK,TRIM00,02,05,06,08,1#,2#

sub55408-50160

main55408-50120-C0iUVF4#..RHD200704-200911

BLACK,TRIM05,1#,2#

sub55408-50160

main55408-50120-E0iUVF4#..RHD200911-201209

ORCHID BROWN,TRIM07

sub55408-50160

main55408-50120-E0iUVF4#..RHD200704-200911

ORCHID BROWN,TRIM00,01

sub55408-50160

55409FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2

main55409-50050-C0iUVF46..GCC200911-201209

BLACK,TRIM00,02,05,06,08,1#,2#

sub55409-50100

main55409-50050-C0iUVF4#..LHD200704-200911

BLACK,TRIM05,1#,2#

sub55409-50100

main55409-50050-C0iUVF4#..LHD..EUR200911-201209

BLACK,TRIM02,05,1#,2#

sub55409-50100

main55409-50050-E0iUVF4#..LHD200704-200911

ORCHID BROWN,TRIM00,01

sub55409-50100

main55409-50050-E0iUVF4#..LHD200911-201209

ORCHID BROWN,TRIM07

sub55409-50100

main55409-50060-C0iUVF4#..RHD200704-200911

BLACK,TRIM05,1#,2#

sub55409-50110

main55409-50060-C0iUVF4#..RHD200911-201209

BLACK,TRIM00,02,05,06,08,1#,2#

sub55409-50110

main55409-50060-E0iUVF4#..RHD200911-201209

ORCHID BROWN,TRIM07

sub55409-50110

main55409-50060-E0iUVF4#..RHD200704-200911

ORCHID BROWN,TRIM00,01

sub55409-50110

55416ARETAINER, METER HOOD, NO.1

main55416-30140iUVF4#..RHD200812-200902

INSTRUMENT FINISH PANEL-LEATHER(UPPER&LOWER&DOOR)

main55416-30140iUVF4#200704-201209

55458ACAP, INSTRUMENT PANEL SAFETY PAD

main55458-50100iUVF4#200704-200911

55525COVER, SPEAKER HOLE, NO.1

main55510-50020-C0iUVF46..GCC200911-201209

BLACK,TRIM02,05,1#,2#

main55510-50020-C0iUVF46..GCC200911-201209

BLACK,TRIM00,02,05,06,08,1#,2#

main55510-50020-C0iUVF4#200704-200911

BLACK,TRIM05,1#,2#

main55510-50020-E0iUVF4#200911-201209

ORCHID BROWN,TRIM07

main55510-50020-E0iUVF4#200704-200911

ORCHID BROWN,TRIM00,01

55981GARNISH, DEFROSTER NOZZLE, NO.1

main55981-50110iUVF4#200704-200911

55982GARNISH, DEFROSTER NOZZLE, NO.2

main55982-50050iUVF4#200704-200911

73900AIRBAG ASSY, INSTRUMENT PANEL, LOWER NO.1

main73900-50030-A0iUVF4#..LHD200704-200911

IVORY,TRIM00

sub73900-50030

main73900-50030-A1iUVF4#..LHD200809-200911

MELLOW WHITE,TRIM01

sub73900-50030

main73900-50030-A1iUVF4#..LHD200704-200809

MELLOW WHITE,TRIM01,05

sub73900-50030

main73900-50030-B0iUVF4#..LHD200704-200809

LT.GRAY,TRIM1#

sub73900-50030

main73900-50030-B0iUVF4#..LHD200809-200911

LT.GRAY,TRIM10

sub73900-50030

main73900-50030-C0iUVF4#..LHD200704-200809

BLACK,TRIM05,2#

sub73900-50030

main73900-50030-C0iUVF4#..LHD200809-200911

BLACK,TRIM05,12,2#

sub73900-50030

main73900-50040-A0iUVF4#..RHD200704-200911

IVORY,TRIM00

sub73900-50040

main73900-50040-A1iUVF4#..RHD200704-200809

MELLOW WHITE,TRIM01,05

sub73900-50040

main73900-50040-A1iUVF4#..RHD200809-200911

MELLOW WHITE,TRIM01

sub73900-50040

main73900-50040-B0iUVF4#..RHD200809-200911

LT.GRAY,TRIM10

sub73900-50040

main73900-50040-B0iUVF4#..RHD200704-200809

LT.GRAY,TRIM1#

sub73900-50040

main73900-50040-C0iUVF4#..RHD200809-200911

BLACK,TRIM05,12,2#

sub73900-50040

main73900-50040-C0iUVF4#..RHD200704-200809

BLACK,TRIM05,2#

sub73900-50040

main73900-50050-A0iUVF4#..LHD200911-201209

MELLOW WHITE,TRIM07

sub73900-50051

main73900-50050-A2iUVF4#..LHD200911-201209

WATER WHITE,TRIM1#

sub73900-50051

main73900-50050-C0iUVF46..GCC200911-201209

BLACK,TRIM00,02,05,06,08,2#

sub73900-50051

main73900-50050-C0iUVF4#..LHD..EUR200911-201209

BLACK,TRIM02,05,2#

sub73900-50051

main73900-50060-A0iUVF4#..RHD200911-201209

MELLOW WHITE,TRIM07

main73900-50060-A2iUVF4#..RHD200911-201209

WATER WHITE,TRIM1#

main73900-50060-C0iUVF4#..RHD200911-201209

BLACK,TRIM00,02,05,06,08,2#

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-50090iUVF4#200704-200911

73990AIRBAG ASSY, INSTRUMENT PANEL, LOWER NO.2

main73990-50030-A0iUVF4#..LHD200704-200911

IVORY,TRIM00

sub73990-50031

main73990-50030-A1iUVF4#..LHD200704-200809

MELLOW WHITE,TRIM01,05

sub73990-50031

main73990-50030-A1iUVF4#..LHD200911-201209

MELLOW WHITE,TRIM07

sub73990-50031

main73990-50030-A1iUVF4#..LHD200809-200911

MELLOW WHITE,TRIM01

sub73990-50031

main73990-50030-A3iUVF4#..LHD200911-201209

WATER WHITE,TRIM1#

sub73990-50031

main73990-50030-B0iUVF4#..LHD200809-200911

LT.GRAY,TRIM10

sub73990-50031

main73990-50030-B0iUVF4#..LHD200704-200809

LT.GRAY,TRIM1#

sub73990-50031

main73990-50030-C0iUVF46..GCC200911-201209

BLACK,TRIM02,05,2#

sub73990-50031

main73990-50030-C0iUVF4#..LHD..EUR200911-201209

BLACK,TRIM00,02,05,06,08,2#

sub73990-50031

main73990-50030-C0iUVF4#..LHD200704-200809

BLACK,TRIM05,2#

sub73990-50031

main73990-50030-C0iUVF4#..LHD200809-200911

BLACK,TRIM05,12,2#

sub73990-50031

main73990-50040-A0iUVF4#..RHD200704-200911

IVORY,TRIM00

sub73990-50040

main73990-50040-A1iUVF4#..RHD200911-201209

MELLOW WHITE,TRIM07

sub73990-50040

main73990-50040-A1iUVF4#..RHD200809-200911

MELLOW WHITE,TRIM01

sub73990-50040

main73990-50040-A1iUVF4#..RHD200704-200809

MELLOW WHITE,TRIM01,05

sub73990-50040

main73990-50040-A3iUVF4#..RHD200911-201209

WATER WHITE,TRIM1#

sub73990-50040

main73990-50040-B0iUVF4#..RHD200809-200911

LT.GRAY,TRIM10

sub73990-50040

main73990-50040-B0iUVF4#..RHD200704-200809

LT.GRAY,TRIM1#

sub73990-50040

main73990-50040-C0iUVF4#..RHD200704-200809

BLACK,TRIM05,2#

sub73990-50040

main73990-50040-C0iUVF4#..RHD200809-200911

BLACK,TRIM05,12,2#

sub73990-50040

main73990-50040-C0iUVF4#..RHD200911-201209

BLACK,TRIM00,02,05,06,08,2#

sub73990-50040

82140WIRE ASSY, INSTRUMENT PANEL

main82140-47010iUVF4#200704-200911

8715

9011906942

main90119-06942

9011906951

main90119-06951

9015950327

main90159-50327

9017906274

main90179-06274

9017906292

main90179-06292

9017906323

main90179-06323

9018305094

main90183-05094

9018306010

main90183-06010

9046713082A0

main90467-13082A0

9090119031

main90901-19031

91621J0814

main91621-J0814

9163160816

main91631-60816

91631J0612

main91631-J0612

9356855014

main93568-55014

42 parts on this diagram · 16 diagrams in section
