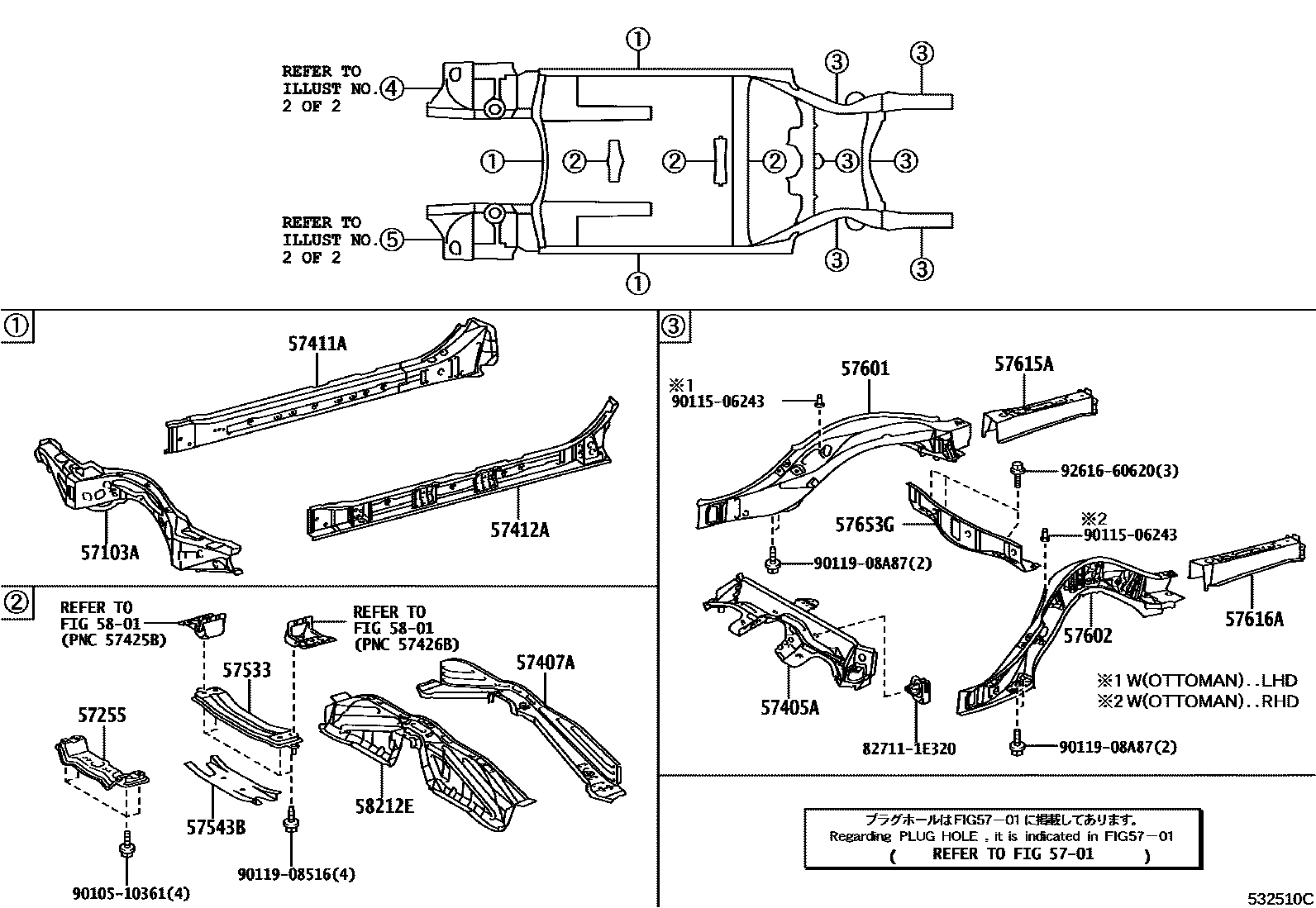

FLOOR SIDE MEMBER

0001 1 0002 1

5701

57103ACROSSMENBER SUB-ASSY, FLOOR, NO.3

main57103-50050iUVF4#..LHD200911

main57103-50060iUVF4#..RHD200809-200911

57255MEMBER, ENGINE REAR MOUNTING

main57209-50010iUVF4#200809-200911

57405AMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.2

main57405-50020iUVF4#200809-200911

sub57405-50021

sub90333-20001

57407AMEMBER SUB-ASSY, CENTER FLOOR CROSS

main57407-50060iUVF4#200911-201209

57411AMEMBER, FLOOR SIDE, INNER RH

main57401-50060iUVF45200704-200803

main57401-50061iUVF45200803-200809

main57401-50070iUVF46200704-200803

main57401-50071iUVF46200803-200809

57412AMEMBER, FLOOR SIDE, INNER LH

main57402-50050iUVF45200704-200803

main57402-50051iUVF45200911

main57402-50060iUVF46200704-200803

main57402-50061iUVF46200809-200911

57533BRACE, FRONT FLOOR, CENTER

main57533-50020iUVF4#200704-200809

57543BBRACE, CENTER FLOOR, NO.1

main57543-50010iUVF4#200704-200809

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-50907iUVF4#200704-200809

sub57601-50909

main57601-50908iUVF4#201003

sub57601-50910

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-50907iUVF4#200704-200809

sub57602-50909

main57602-50908iUVF4#201003

sub57602-50910

57615AMEMBER, REAR FLOOR SIDE, REAR RH

main57615-50906iUVF4#200911

sub57615-50907

sub90333-30002

57616AMEMBER, REAR FLOOR SIDE, REAR LH

main57616-50906iUVF4#200911

sub57616-50907

sub90333-30002

57653GMEMBER, REAR FLOOR CROSS, NO.2

main57653-50901iUVF4#200911

5801

58212EPAN, CENTER FLOOR, FRONT

main58202-50020supersedes 58202-50010iUVF46200704-200809

WITH(REAR POWER SEAT)

sub58202-50021

827111E320WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E320

9010510361

main90105-10361

9011506243

main90115-06243

9011908516

main90119-08516

9011908A87

main90119-08A87

9261660620

main92616-60620

22 parts on this diagram · 2 diagrams in section
