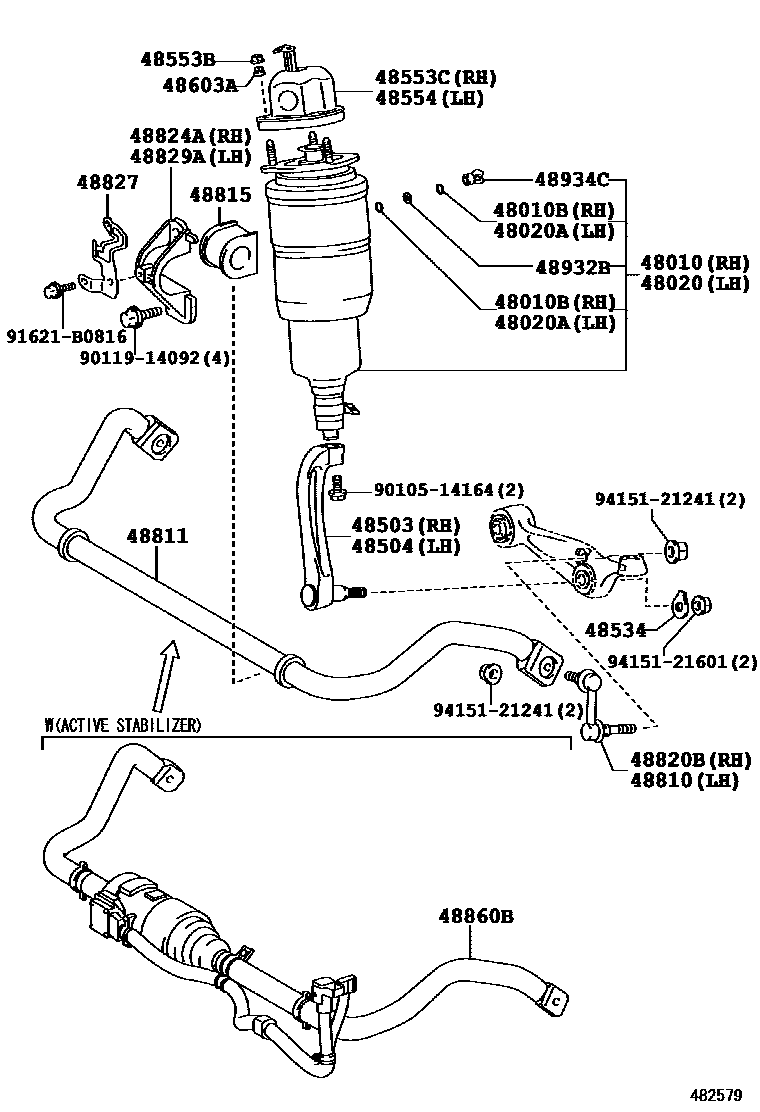

FRONT SPRING & SHOCK ABSORBER
48010CYLINDER ASSY, PNEUMATIC, FRONT RH W/SHOCK ABSORBER
sub48010-50201
sub48010-50202
ENGLAND SPEC
sub48010-50281
sub48010-50282
48010BRING, O(FOR FRONT PNEUMATIC CYLINDER RH)
48020CYLINDER ASSY, PNEUMATIC, FRONT LH W/SHOCK ABSORBER
sub48020-50201
sub48020-50202
ENGLAND SPEC
sub48020-50281
sub48020-50282
48020ARING, O(FOR FRONT PNEUMATIC CYLINDER LH)
48503BRACKET SUB-ASSY, FRONT SHOCK ABSORBER, LOWER RH
48504BRACKET SUB-ASSY, FRONT SHOCK ABSORBER, LOWER LH
48534PLATE, FRONT SHOCK ABSORBER UPPER BRACKET
48553BNUT(FOR FRONT SHOCK ABSORBER CAP)
48553CCAP, FRONT SHOCK ABSORBER, RH
48554CAP, FRONT SHOCK ABSORBER, LH
48603ANUT(FOR FRONT SUSPENSION SUPPORT)
48810LINK ASSY, FRONT STABILIZER, LH
48811BAR, STABILIZER, FRONT
48815BUSH, FRONT STABILIZER BAR, NO.1
VERSION S
48820BLINK ASSY, FRONT STABILIZER, RH
48824ABRACKET, FRONT STABILIZER, NO.1 RH
48827BRACKET, FRONT STABILIZER, NO.2 RH
48829ABRACKET, FRONT STABILIZER, NO.1 LH
48860BACTUATOR ASSY, FRONT ACTIVE STABILIZER CONTROL
48932BPLATE, HEIGHT CONTROL TUBE
48934CCONNECTOR, HEIGHT CONTROL TUBE
9010514164
main90105-14164
9011914092
main90119-14092
91621B0816
main91621-B0816
9415121241
main94151-21241
9415121601
main94151-21601
26 parts on this diagram · 1 diagram in section
